B
C
A
B
A C

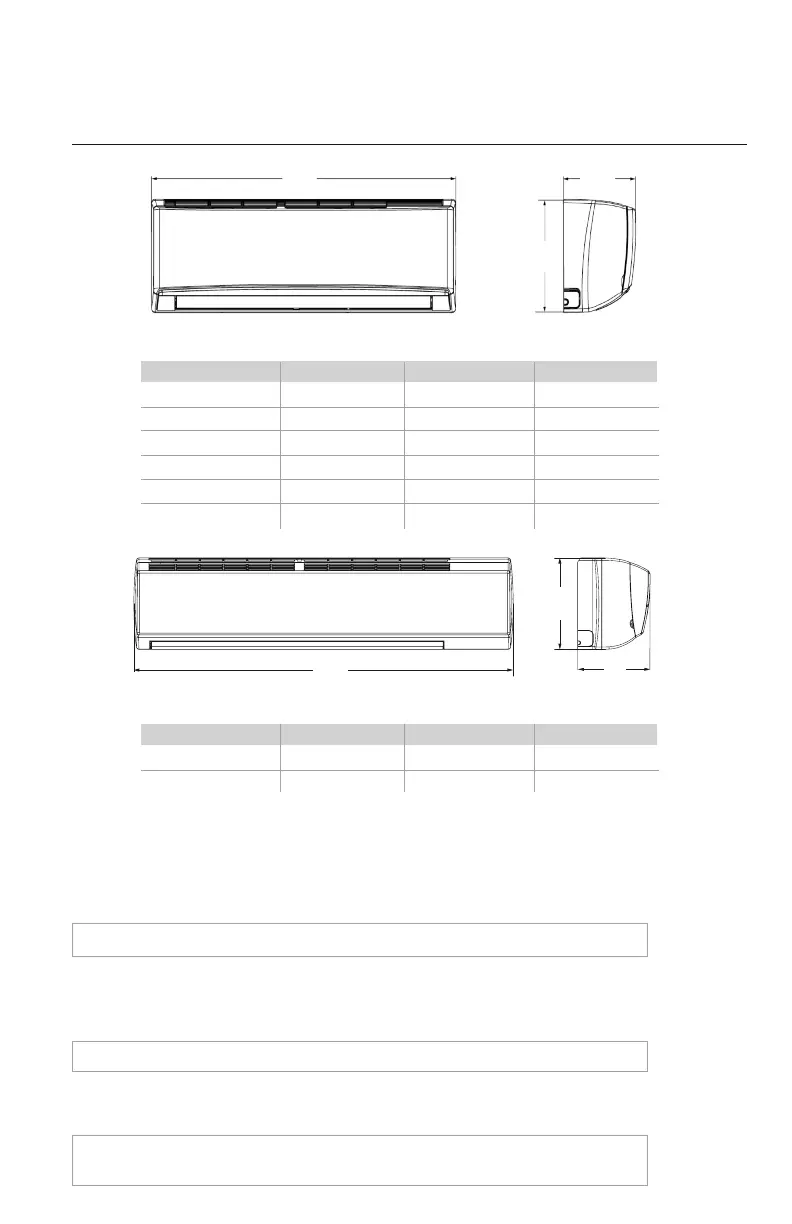

INDOOR UNIT INSTALLATION
Installation of Mounting Bracket
1. Attach the mounting bracket to the indoor unit.
2. Find the horizontal center of the indoor unit.
3. Mark the center of the indoor unit on mounting bracket for future reference.
NOTE: The center of the mounting bracket is not the center of the indoor unit.
4.
Remove the mounting brackets from the indoor unit and position the mounting bracket on the wall in
desired location. Use centering mark on mounting bracket for centering the indoor unit on the wall.
5. Mounting bracket must be installed horizontally and level right to left.
NOTE: Condensate drain pan has built-in pitch for proper drainage.
6. Secure mounting bracket to wall with a minimum of five screws, evenly spaced to properly
support indoor unit weight.
NOTE: It is recommended to install screw anchors for sheet rock, concrete block,
brick and such type of walls.
10
Model AB C
LIVS09HP115V1B 31.1 (790) 10.8 (275) 7.9 (200)
LIVS12HP115V1B 33.3 (845) 11.4 (289) 8.3 (209)
LIVS09HP230V1B 31.1 (790) 10.8 (275) 7.9 (200)
LIVS12HP230V1B 33.3 (845) 11.4 (289) 8.3 (209)
LIVS18HP230V1B 38.2 (970) 11.8 (300) 8.8 (224)
LIVS24HP230V1B 42.4 (1078) 12.8 (325) 9.7 (246)
INDOOR UNIT DIMENSIONS in (mm)
Model ABC
LIVS30HP230V1B 53.2 (1350) 12.8 (326) 10.0 (253)
LIVS36HP230V1B 53.2 (1350) 12.8 (326) 10.0 (253)
INDOOR UNIT DIMENSIONS in (mm)
