Gree MULTI24HP230V1CO - Page 50

48
Installation and Maintenance
Service Manual
Steps Procedure
5HPRYHWKHVFUHZQXWV¿[LQJFRPSUHVVRUIRRWVDQG
chassis with spanner, as well as the foot cushion, to
remove the compressor.
5HPRYHWKHVFUHZV¿[LQJYDOYHVXSSRUWDVV\DQG
chassis sub-assy, to remove the valve support assy.
Welding cut the welding point jointing EXV sub-assy
and refrigerant collection pipe, to remove the EXV
assy. (Note: fully pack the big valve with wet cloth
when welding cutting, to avoid high temperature
damage of valve)

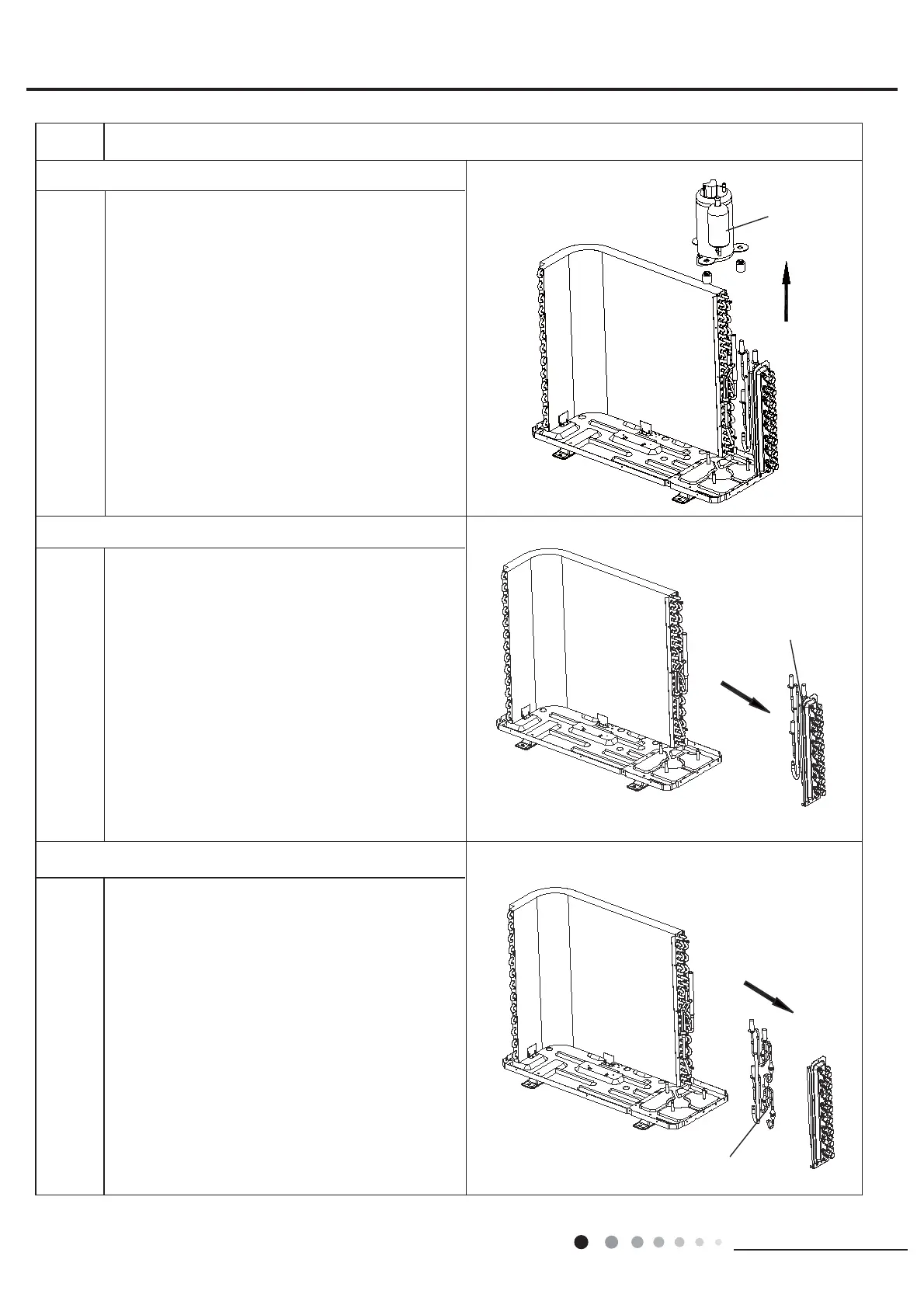

18.Remove valve support assy
19.Remove EXV assy
17.Remove compressor
compressor
valve support assy
EXV assy
