Installation and Maintenance
Service Manual
Steps Procedure

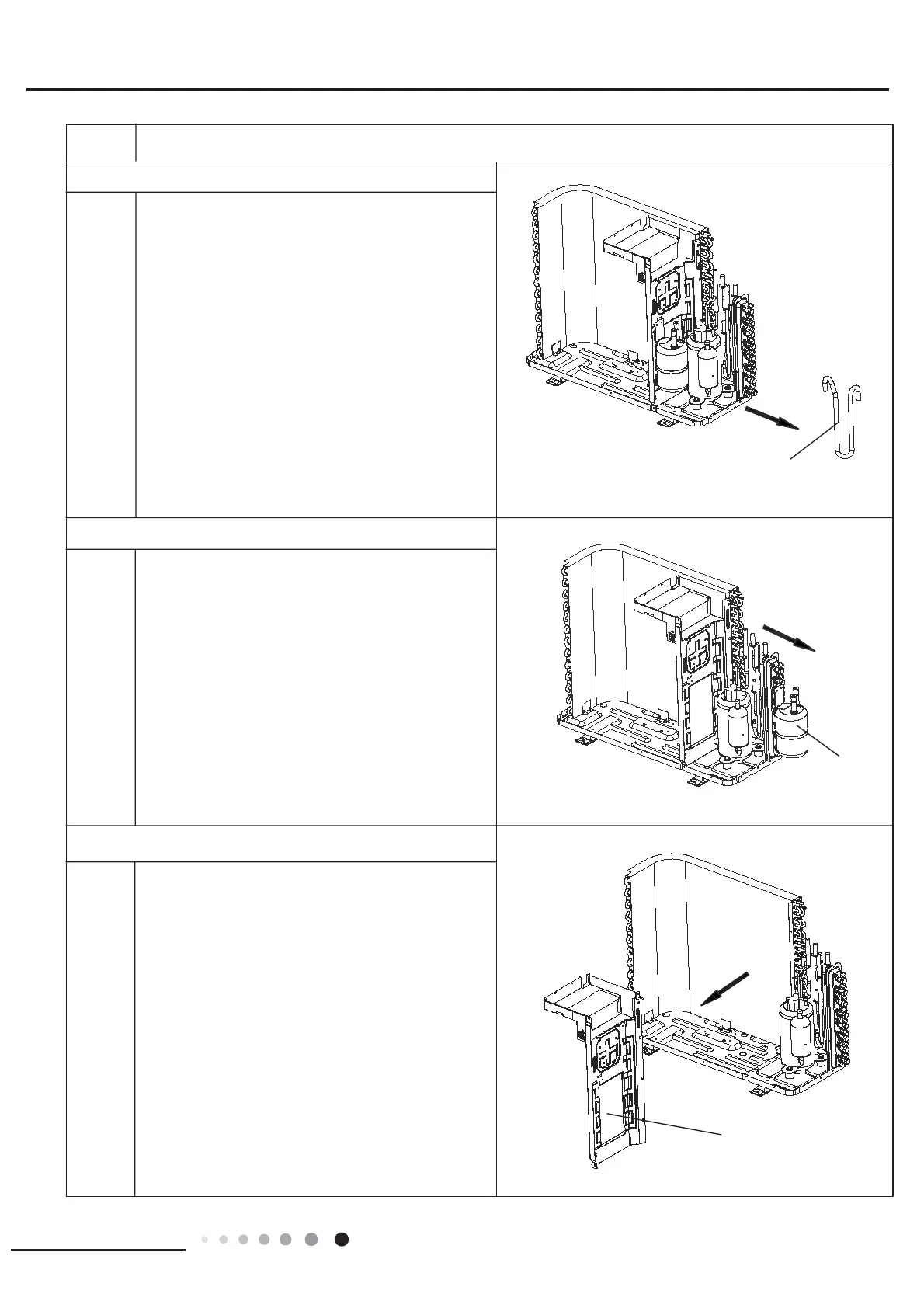

Welding cut the welding point jointing the suction
pipe sub-assy, compressor and liquid receiver, to
remove the suction pipe sub-assy.
5HPRYHWKHVFUHZV¿[LQJLVRODWLRQVKHHWDQGOLTXLG
receiver and lift to remove the liquid receiver.
Remove the screws fixing isolation sheet and
condenser side plate, to remove the isolation sheet
assy.
15.Remove liquid receiver
16.Remove the isolation sheet assy
14.Remove suction pipe sub-assy
suction pipe sub-assy
liquid receiver
isolation sheet assy
To Next Page
