Steps Procedure
5HPRYHWKHWDSSLQJVFUHZV¿[LQJLVRODWLRQVKHHW
loosen the wire binds, pull out the terminal, lift to
remove the electric box sub-assy.
5HPRYHWKHVFUHZV¿[LQJ3)&HOHFWULFDOLQGXFWDQFH
and isolation sheet, to remove the PFC electrical
inductance.
Welding cut the welding point jointing the four-way
valve with blowtorch to remove the four-way valve
sub-assy. (Note: please make sure there’s no
refrigerant in the unit before remove any tube or
compressor)

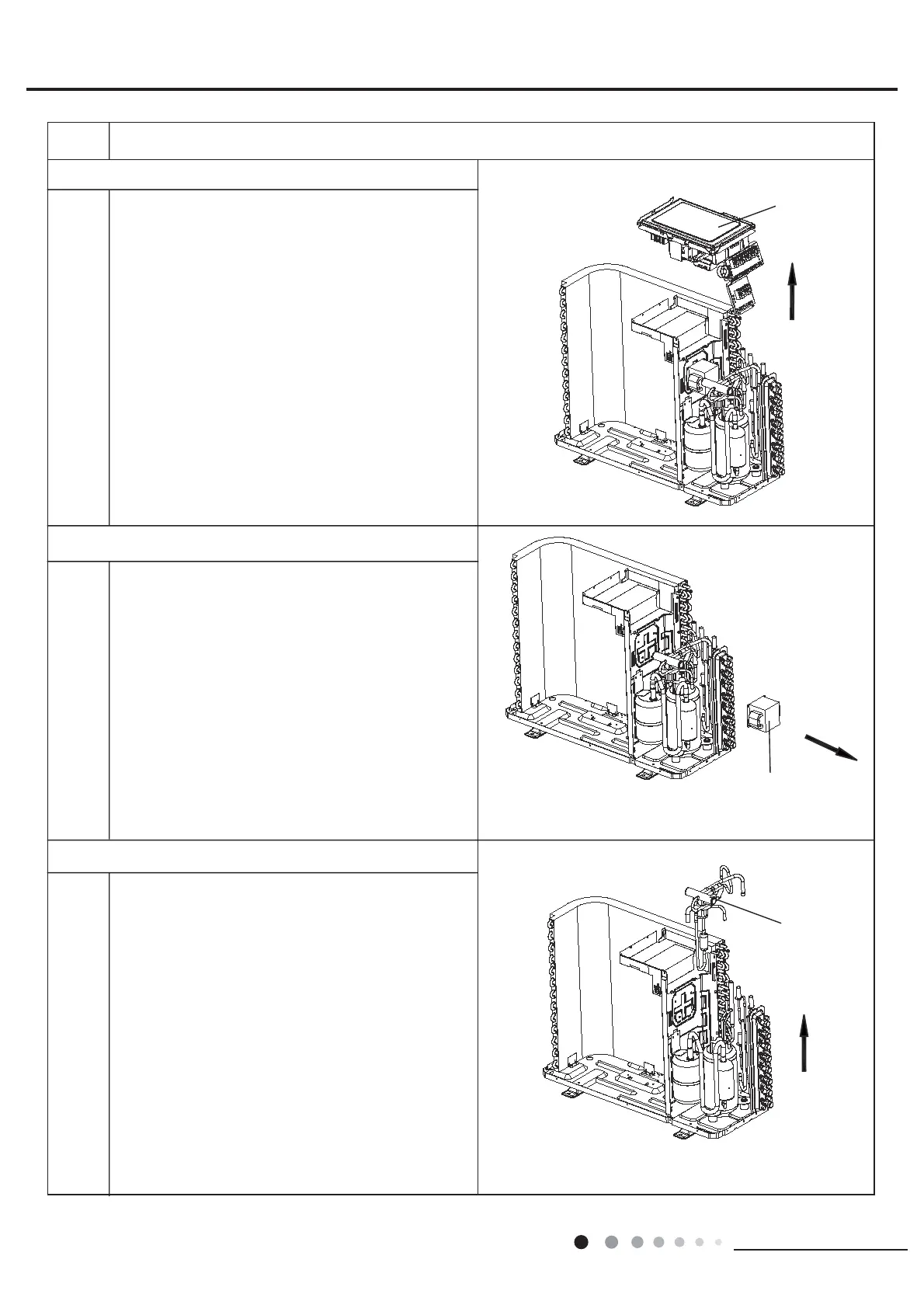

12.Remove PFC electrical inductance
13.Remove four-way valve sub-assy
11.Remove electric box sub-assy
electric box sub-assy
PFC electrical inductance
four-way valve
sub-assy
To Next Page
