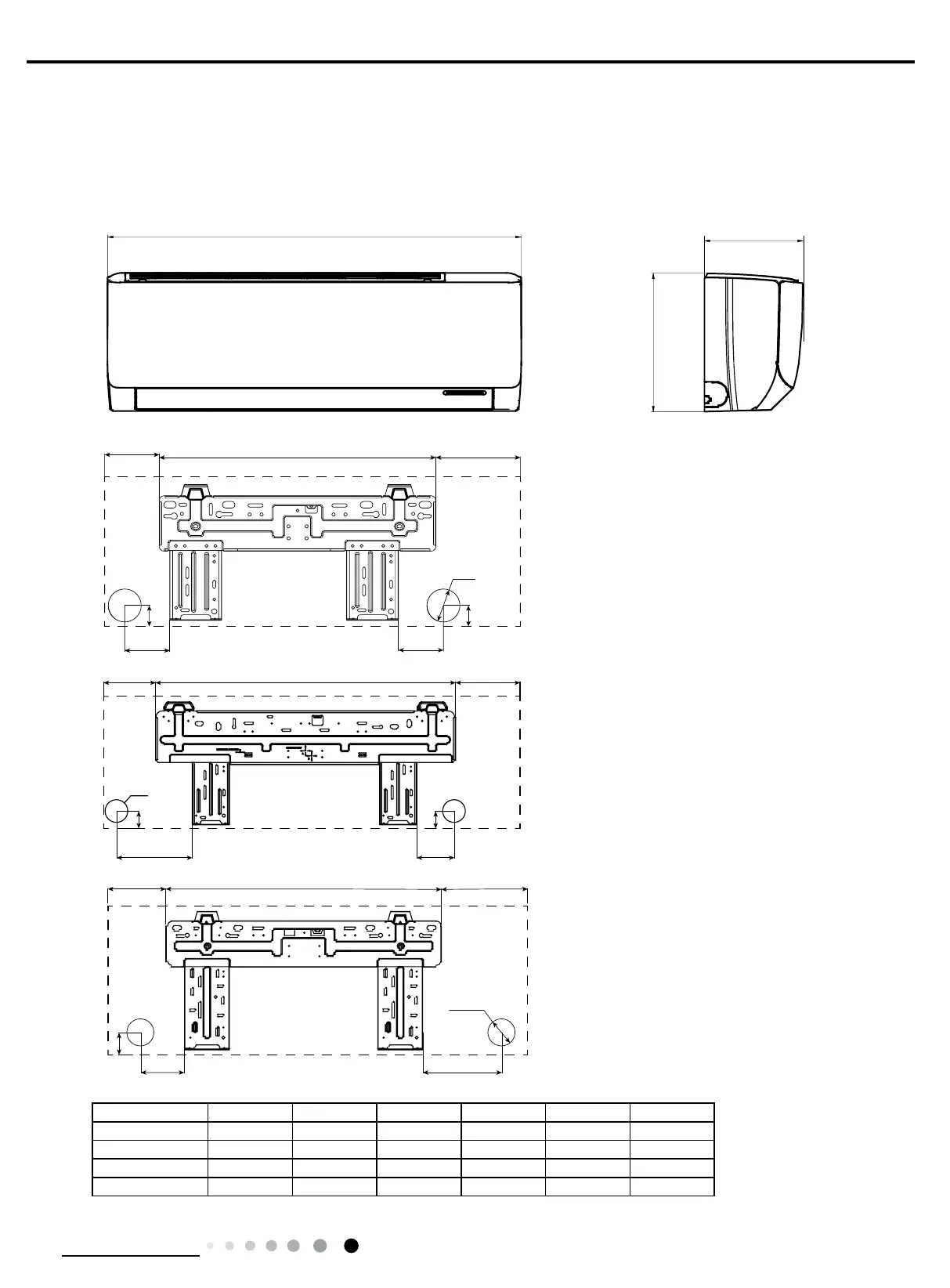

3. Outline Dimension Diagram
3.1 Indoor Unit
D
H
W
55
40
178
89
40
75
155
42
Φ55
W3W2
W1
W3W2W1
W3W2W1
42
43
75
116
Φ55
Model W H D W1 W2 W3
AGA 704 260 185 93 462 149
AGB 779 260 185 133.5 462 183.5
AGC 825 293 196 113 542 170
AGD 982 311 221 122.5 707.5 152
AGA/AGB
AGD
AGC
Unit:mm
D
H
W
Φ55
40
43
178
89
175
60
40
75
155
42
Φ55
W3W2
W1
W3W2W1
W3W2W1
W3W2W1
42
43
75
116
Φ55
Φ70
