Gree R410A Service Manual

Super Free Match
Service Manual
MAINTENANCE
162
6.2.2 Ducted type
◆ Removal and Assembly of Fan Motor
Remark: Prior to the assembly of the motor, make sure the power supply is cut off.

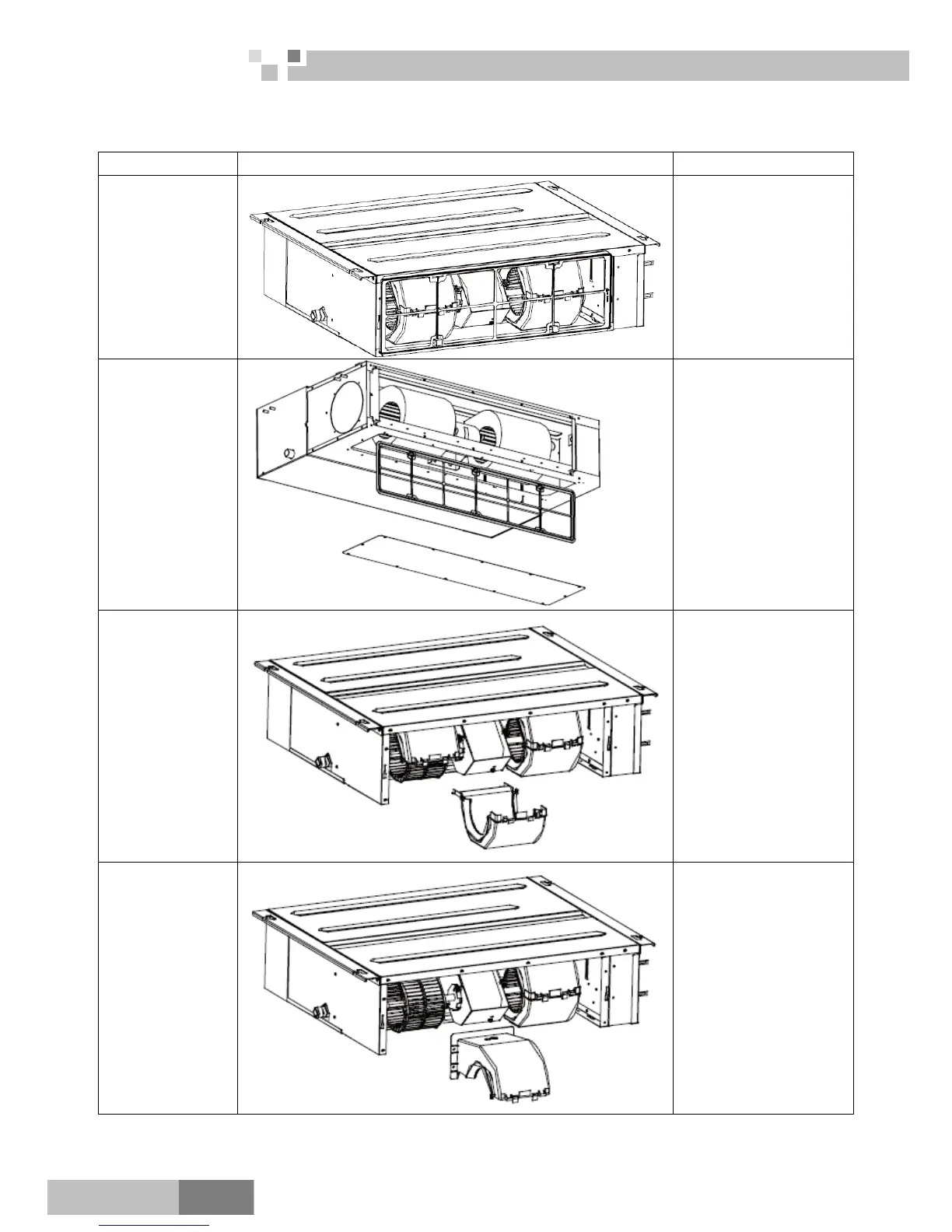

Steps Illustrations Operation Instructions
1.Pull out the
electric wire of the
motor

Open the cover plate of the
electric box and then pull
out the electric wire inside
the box.
2.Remove the
cover plate for
return air

a) Remove the filter
screen
b) Unscrew the fixed
screws of the return
air
3.Remove the rear
volute

Undo the buckle of the
rear and front volutes and
then remove the rear
volute away.
4. Remove the front
volute

Unscrew the fixed
screws of the front volute
and then remove it away
