Air-to-water Heat Pump Split Versati
32
Tap water
Safety check valve
Note
(a) For safe use of water, water outlet/inlet of water tank must connect with a certain length of PPR pipe ,L
≥70×R2(cm, R is inside radius of the pipe). Moreover, heat preservation should be conducted and metal pipe
cannot be used. For the rst use, water tank must be full of water before the power is on.

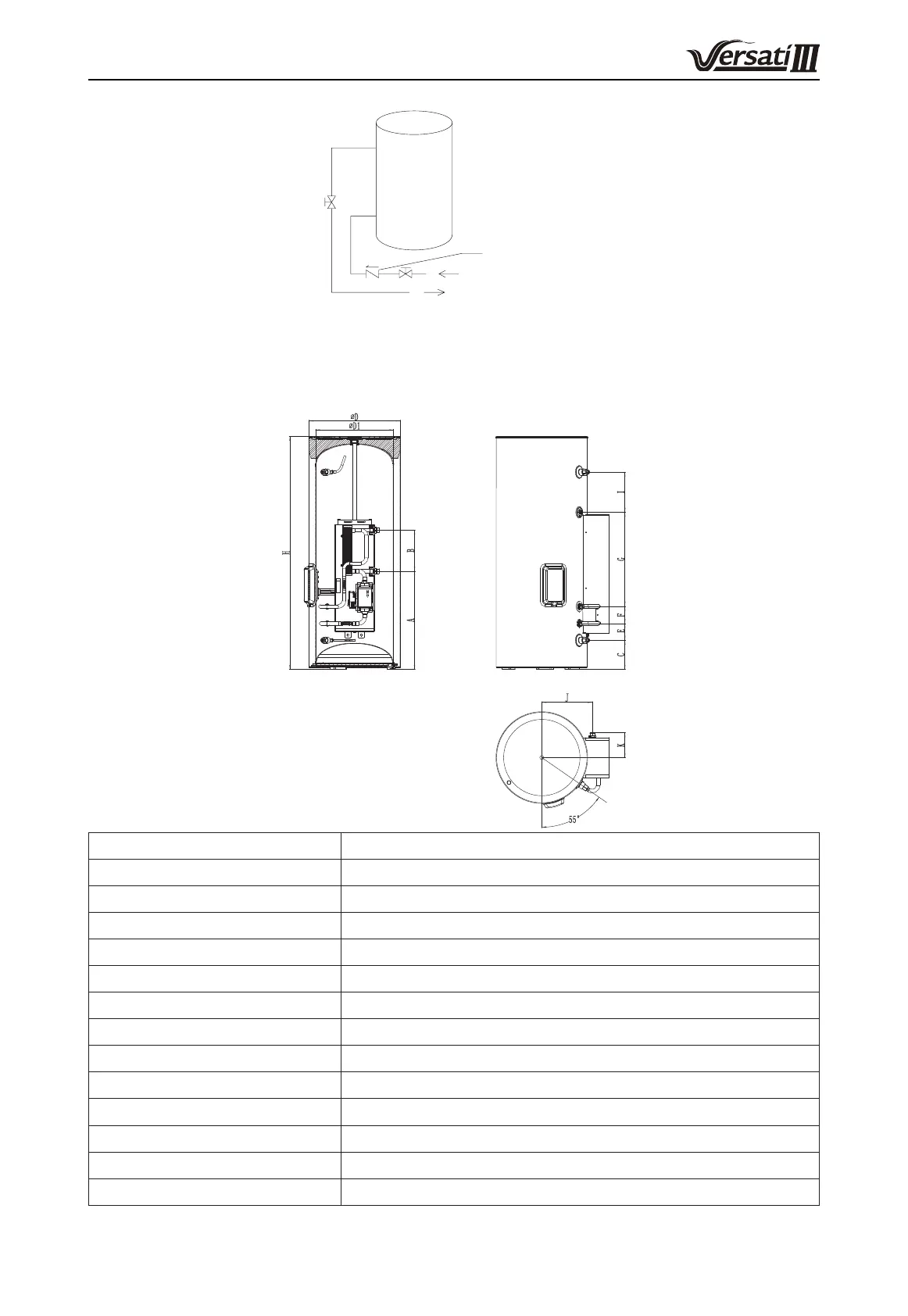

18.2 Outline dimension and parameter of water tank
Model SXTVD300LC/B-M
Litre 300L
D(mm) 620
D1(mm) 530
H(mm) 1585
A(mm) 669
B(mm) 278
C(mm) 198
E(mm) 115
F(mm) 117
G(mm) 639
I(mm) 274
J(mm) 343
K(mm) 169
