Air-to-water Heat Pump Split Versati
25

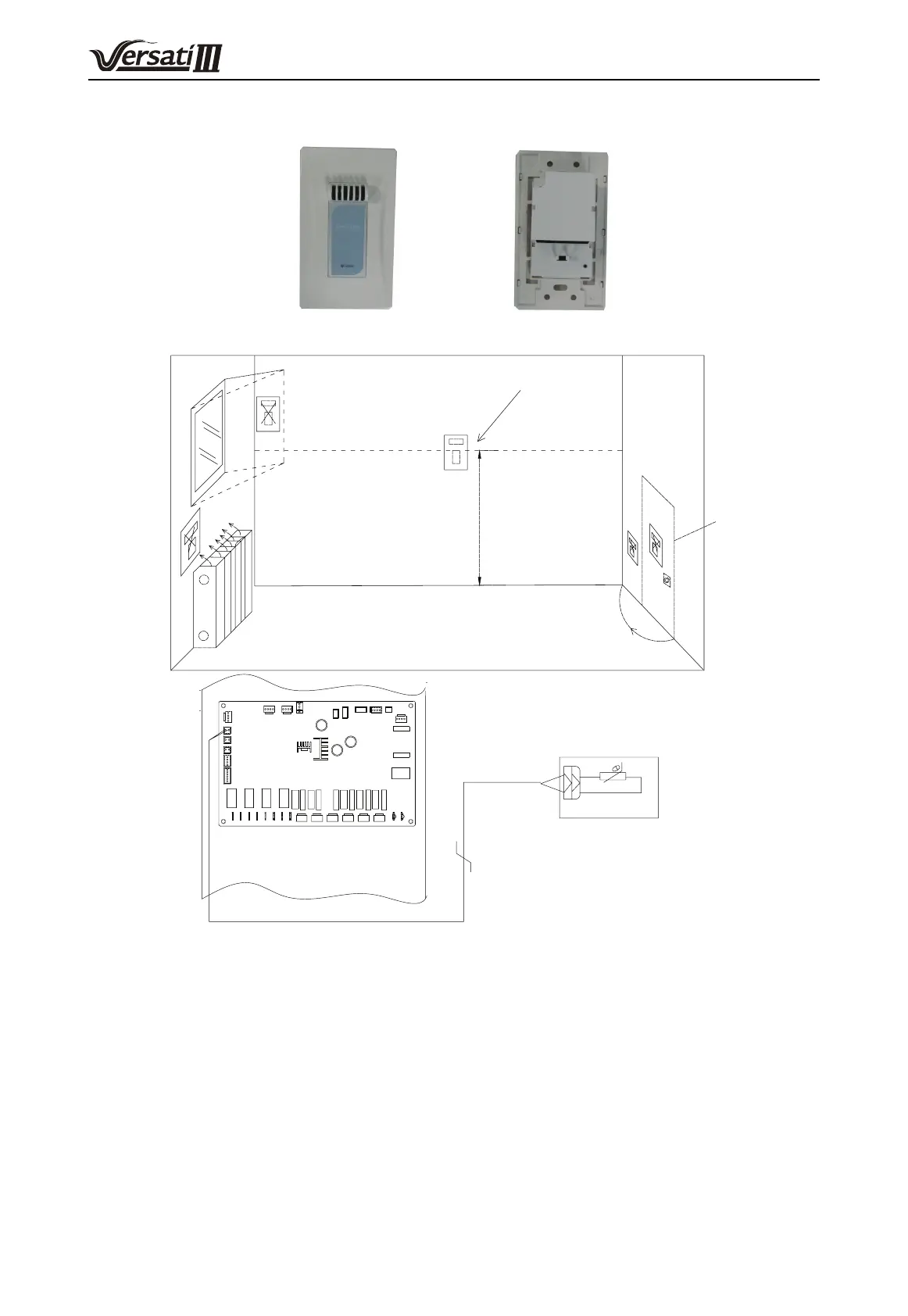

9. Remote Air Temperature Sensor
Front side Back side
Remote Air Temperature Sensor
Doors
NO
NONO
NO
1.5 Meters
YES
AP
RT6
CN1
15K
CN8
Remote Air Environmen
Temp sensor
Electric box
PCB
2
Notes
(a) Distance between the indoor unit and the remote air temperature sensor should be less than 15m due to
length of the connection cable of remote air temperature sensor;
(b) Height from oor is approximately 1.5m;
(c) Remote air temperature sensor cannot be located where the area may be hidden when door is open;
(d) Remote air temperature sensor cannot be located where external thermal inuence may be applied;
(e) Remote air temperature sensor should be installed where space heating is mainly applied;
(f) After the remote air temperature sensor is installed, it should be set to “With” through the wired controller so
as to set the remote air temperature to the control point.
