Gree YAA1FB - Dimension Diagrams

8
Technical Information
Service Manual

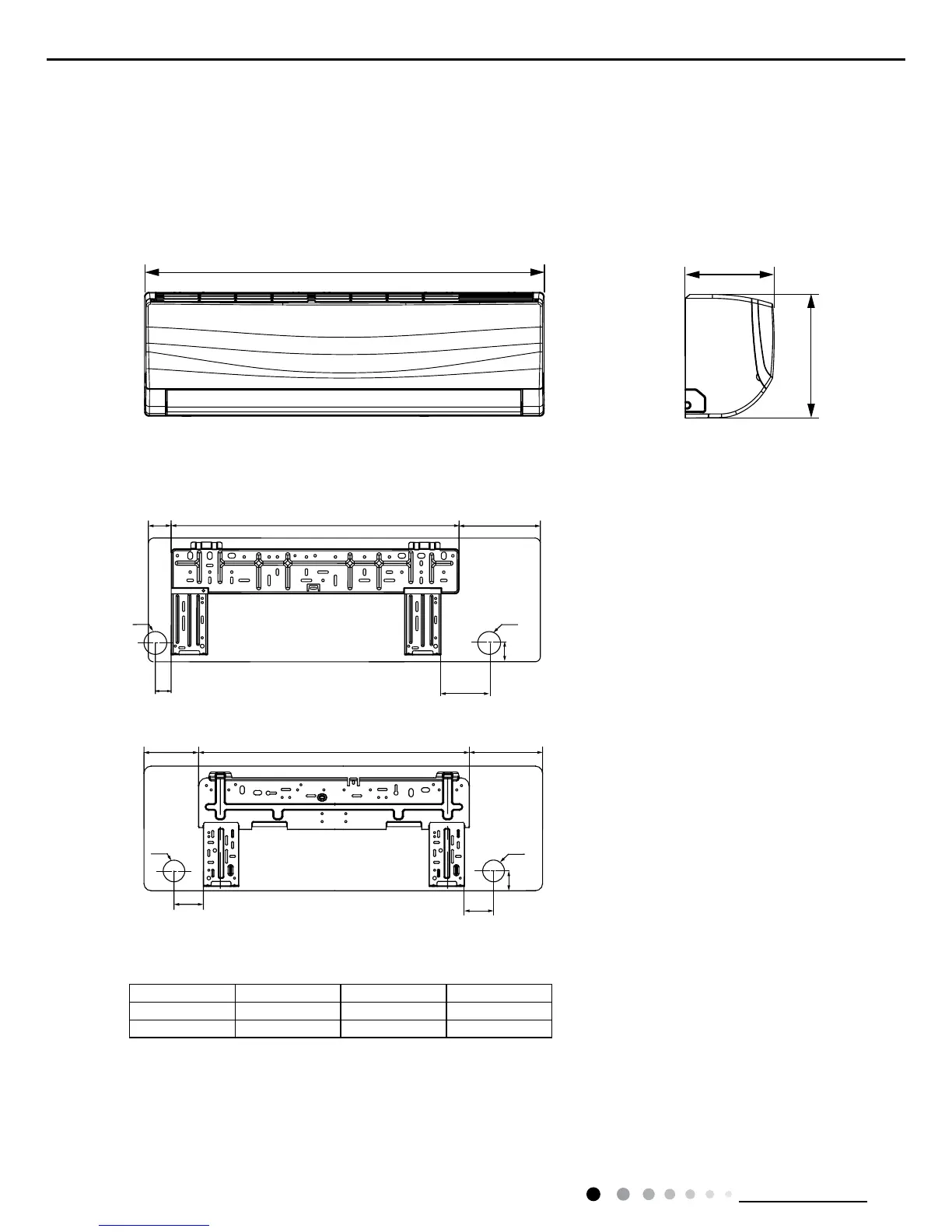

3. Outline Dimension Diagram
3.1 Indoor Unit
Unit:mm
Models W H D
18K 945 298 211
24K 1018 315 230
18K
24K
W
694
685 189
144
57
38
116
45
45
60
95
Φ55Φ55
Φ70 Φ70
194
D
H
NOTE:Take A3 panel for example
