Technical Information
Service Manual

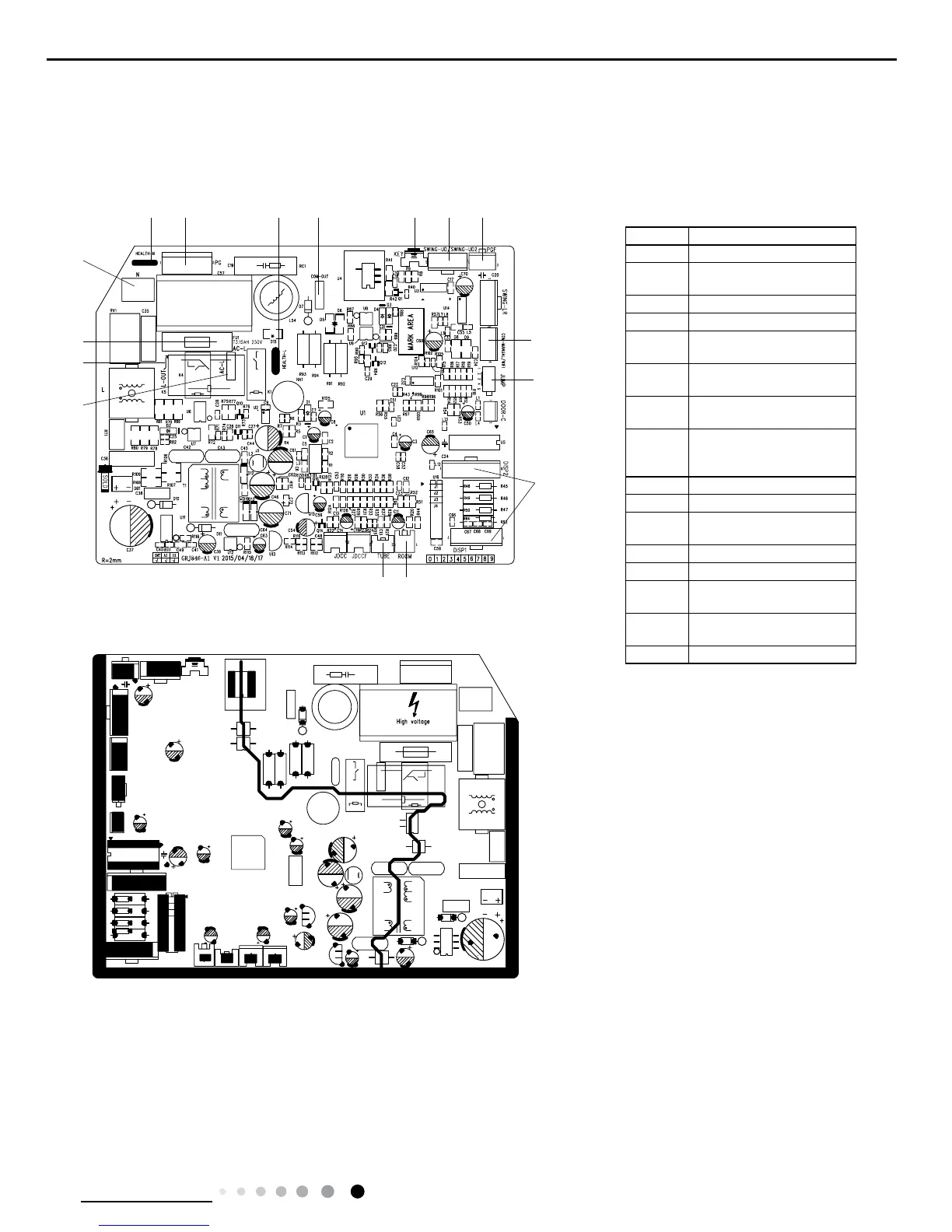

5.2 PCB Printed Diagram
● Top view
Indoor Unit
● Bottom view
No. Name
1 Interface of live wire
2
Interface of live wire for
outdoor control
3 Fuse
4 Interface of neutral wire
5
Interface of neutral wire for
health function
6
Control interface of PG
motor
7
Interface of live wire for
health function
8
Interface of indoor
unit and outdoor unit
communication
9 Auto button
10 Up & down swing
11
Feedback interface of
indoor fan
12 Jump
13 Interface of display
14
Ambient temperature
sensor interface
15
Indoor tube temperature
sensor interface
16 Detecting plate(WIFI )
1
2
3
4
5 6 7 8 9 10 11
12
16
13
1415
