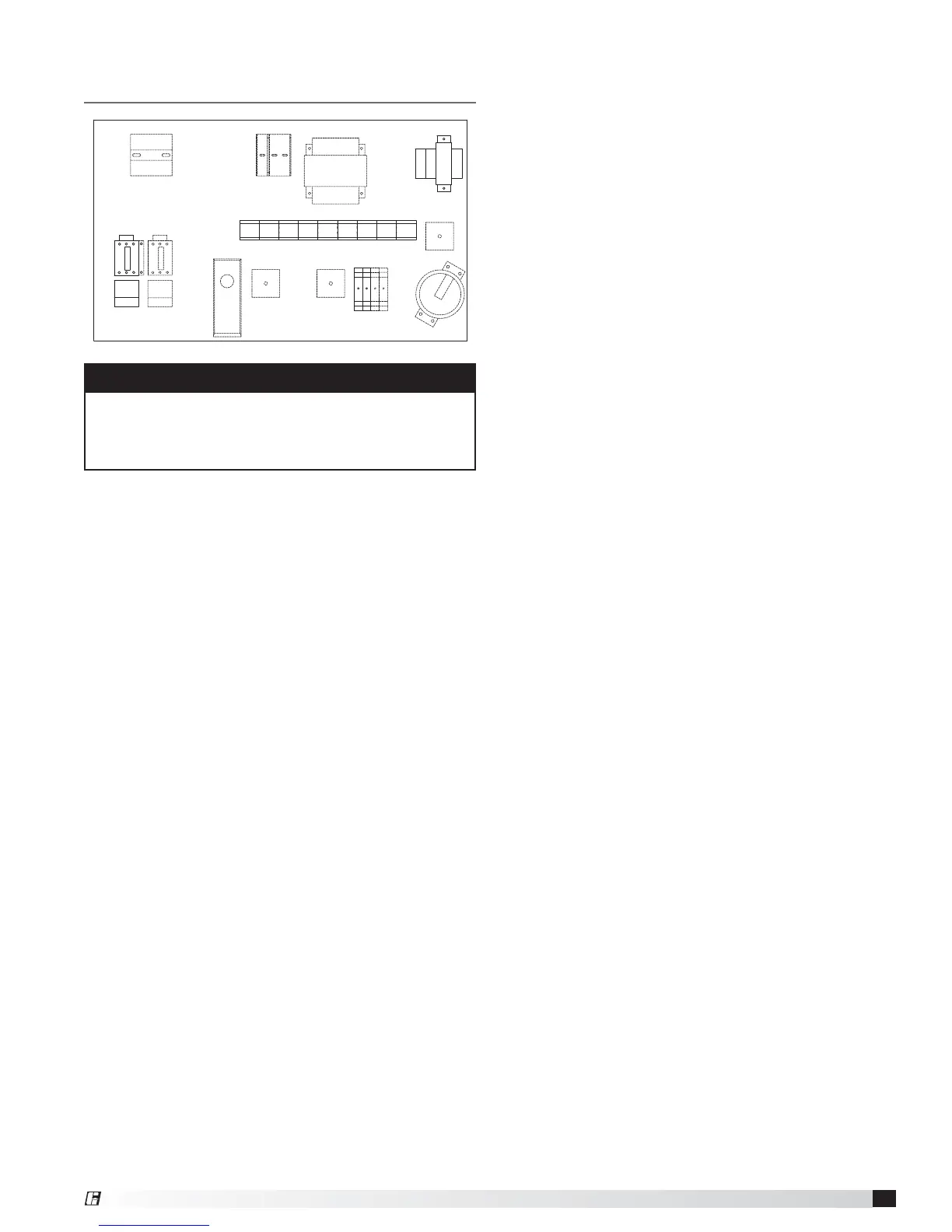

Greenheck IG - Control Center Reference - Model IGX (Blower Control Center); Model IGX Blower Control Center Component Identification

67
1. Supply Motor Starter - 24 volt magnetic contacts
for starting supply motor.
2. Supply Overload - Provides electronic overload
protection to supply motor.
3. Low Voltage Transformer - Provides low voltage
to fan/heat/cooling enable controls.
4. Control Terminal Block - Provides wiring access
to controls.
5. Fan Relay - Allows power to pass to energize
motor starter.
6. Auxiliary Contact (Optional) - Provides one
normally closed and one normally open contact
for other equipment.
7. Exhaust Motor Starter (Optional) - 24 volt
magnetic contacts for starting exhaust motor.
8. Exhaust Overload (Optional) - Provides
electronic overload protection to exhaust motor.
9. Exhaust Fuses (Optional) - Provides proper
fusing for exhaust fan motor(s).
10. Building Freeze Protection Timer (Optional)-
Prevents the discharge of cold air into the
building.
11. Heat Relay - Allows power to pass to heating
controls.
12. Low Voltage Transformer - Provides low voltage
to the optional evaporative cooling controls.
13. Inlet Air Sensor (Optional) - Outdoor air stat that
automatically controls the heating and/or cooling
based on outdoor air temperature.
14. Evaporative Cooling Fuses (Optional) - Provides
proper fusing to evaporative cooling pump and
controls.
15. Transformer Fuse (Optional) - Provides proper
fusing for evaporative cooling transformer.
Reference - Model IGX
(Blower Control Center)
NOTE
This is a typical blower control center, the control
center in your unit may be different. Reference the
ladder diagram on the inside of the control center
door for a unit specific wiring diagram.
1
2
3
4
5
6
7
8
9
10
11
12
13
20
14
15
16
17
18
19
16. Cooling Relay (Optional) - Allows power to pass
to cooling controls.
17. Reset Timer (Optional) - Resets cooling system
to run a time interval.
18. Auto Drain Relay (Optional) - Assures supply
pump does not operate during drain interval.
Allows pump to operate in cooling mode.
19. Cooling Timer (Optional) - Allows for automatic
draining of the evaporative cooling system based
on time schedule.
20. Dirty Filter Switch (Optional) - Monitors filter
pressure drop. Turns on indicating light when
pressure drop is above field adjustable set point.
®
