Alignment Plate Installation2
SEH-401, SED-401
EDJ-401, EDK-402, ESK-402
EDJ-430, EDK-430 ESD-403
Step 1
Units that are to be field stacked will be shipped with alignment
plate(s) to be field installed. Remove the appropriate amount of
blade screws that hold the blade nearest the splice joint of the
mating section (reference model details).
Step 2
Stack the sections together.
Step 3

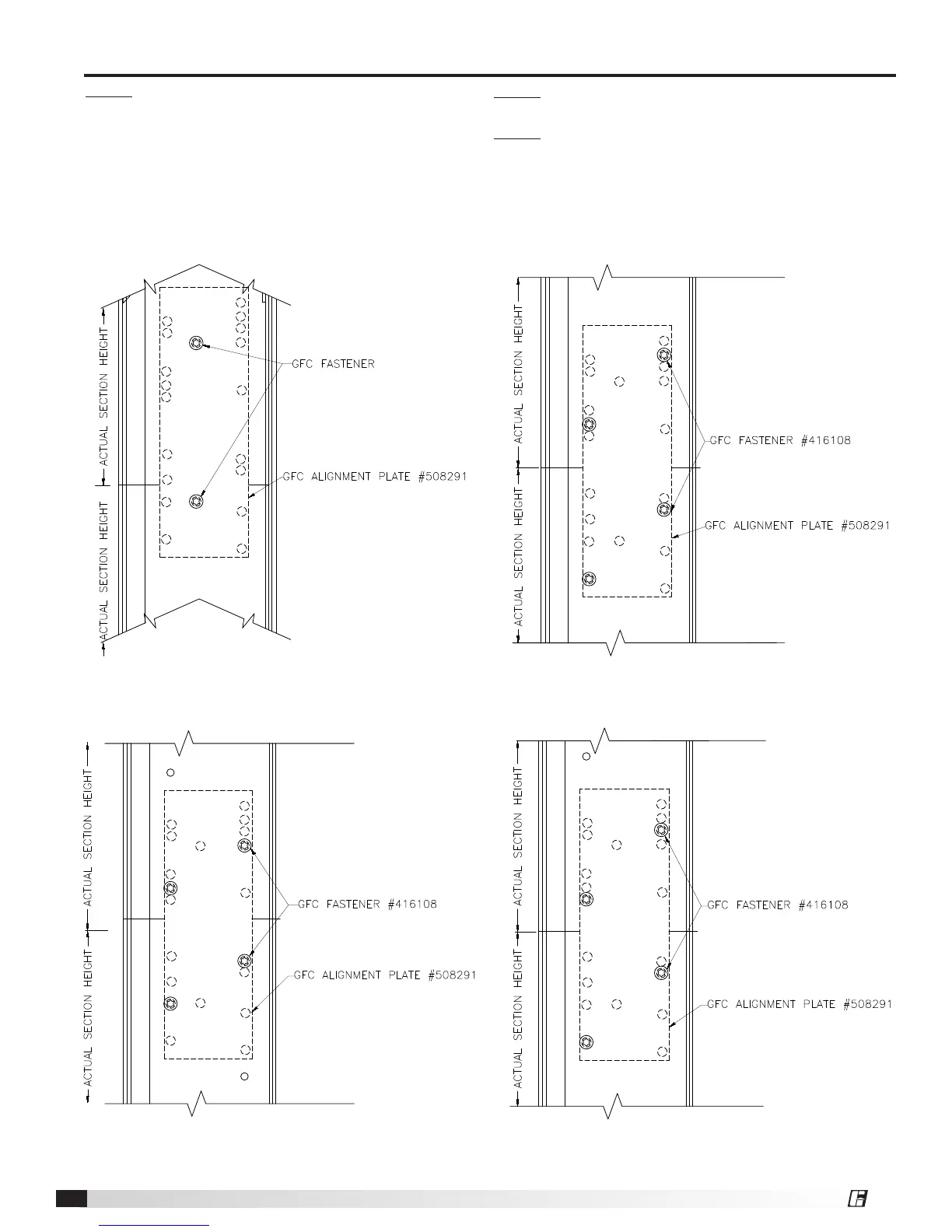

Attach plates by re-installing blade screws through alignment
plate(s), through jambs, and into screw bosses that are extruded
in blades.
INSTALLATION GUIDELINES
