Greenheck Vektor User Manual

Electrical Controls Information for Factory-Supplied Variable Frequency Drive

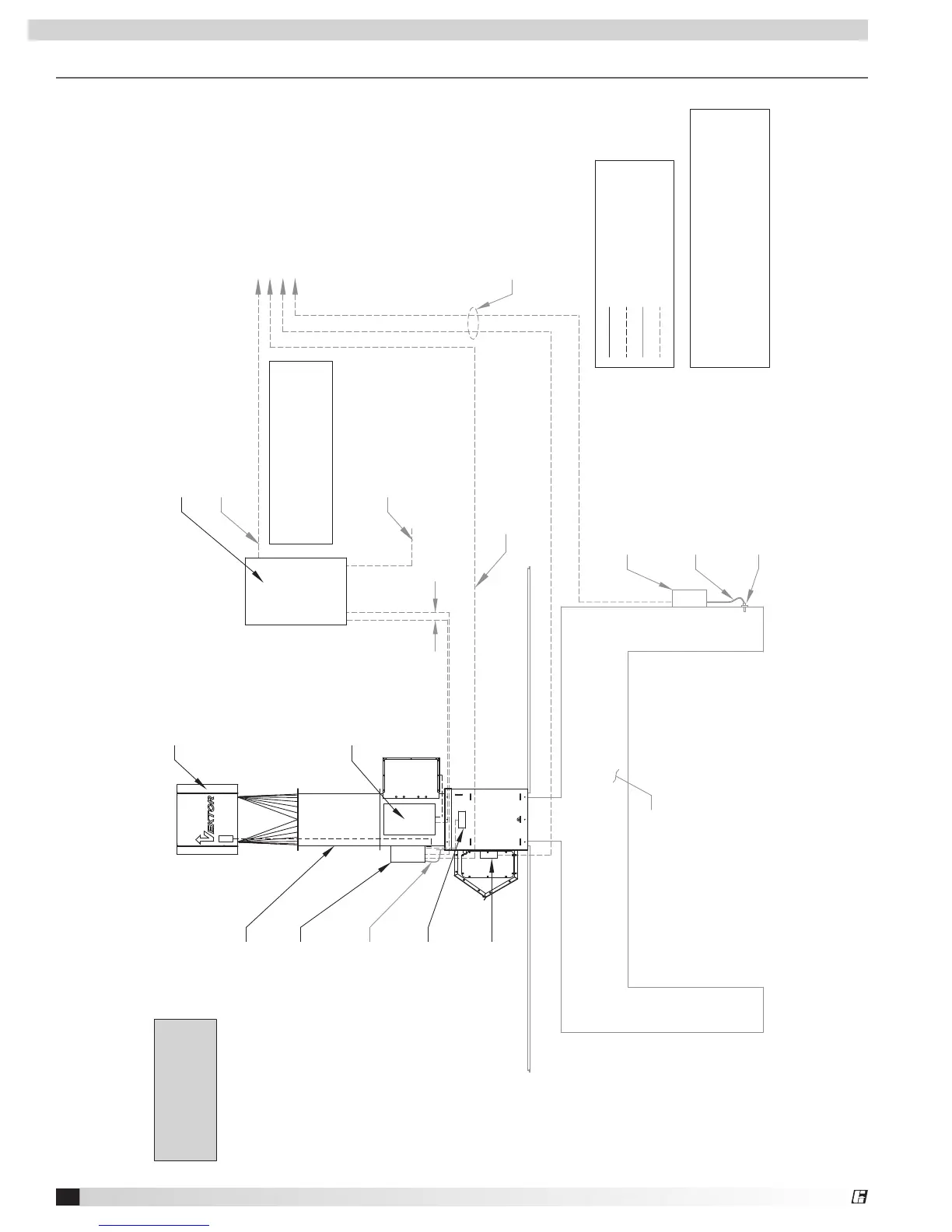

System Diagram
VGN NOZZLE WITH MODULATING ACTUATOR(S)
VEKTOR ROOF
EXHAUST FAN
EXHAUST DUCT
STATIC PRESSURE TRANSDUCER BOX
1/4 INCH PRESSURE TUBING
STATIC PRESSURE PROBE
BYPASS DAMPER ACTUATOR
(MODULATING)
(CONTROLLED BY BMS)
CONTROL WIRING
MOTOR WIRING
SYSTEM POWER WIRING
COMMUNICATION WIRING
1/4 INCH PRESSURE TUBING
ISOLATION DAMPER
WITH OPEN/CLOSE ACTUATOR
TO BMS CONTROL
DUCT PRESSURE CONTROL
VFD IN A NEMA 3R UL LISTED ENCLOSURE WITH BYPASS AND INTEGRATED CONTROLLER (SHIPPED LOOSE; FIELD MOUNTED)
STATIC PRESSURE TRANSDUCER
AND TERMINAL BOX SHIPPED LOOSE
(INSTALLED BY OTHERS)
SERVICE DISCONNECT SWITCH
DRIVE BMS COMMUNICATIONS
- BACNET® (STANDARD) - ANALOG SIGNAL(S) (STANDARD) - LONWORKS® (OPTIONAL)
NOTES: - All wiring in rigid metal conduit or flexible metal conduit and liquid tight. - All tubing and conduit to be UV resistant for outdoor use.
WIRING BY GFC EQUIPMENT BY GFC WIRING BY OTHERS EQUIPMENT BY OTHERS
ALL GFC PROVIDED CONTROL DEVICES ARE 24V POWER
ROOF LINE
NOZZLE FEEDBACK
12
VGN Technology
®

Greenheck Vektor Specifications

General

Category	Ventilation Hood
Brand	Greenheck
Model	Vektor
Mounting Type	Roof-mounted
Filter Type	grease, particulate
