Greenlee 713 - Exploded View and Parts List; Tool Components Identification

4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
713 Plumbers Stud Punch

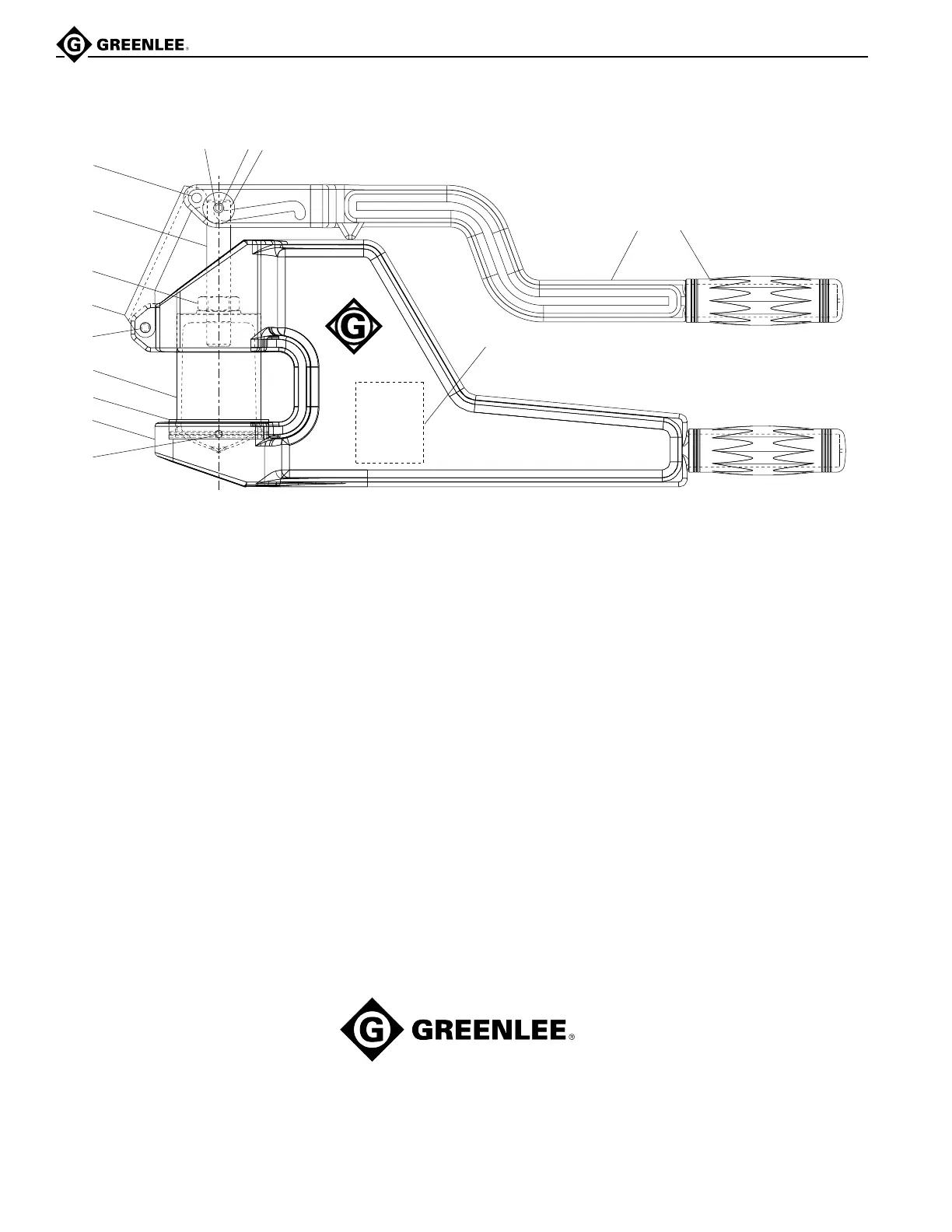

Exploded View and Parts List
1
2
3
4
6
8
7
14
13
10 1211
5
GREENLEE
15
713
9
UPC NO. PART
KEY NO. DESCRIPTION QTY.
1 905 0617.0 Screw, 1/4–20 UNC set .............................1
2 501 0465.9 C-head unit (includes one of item 14) .......1
3 500 8379.1 Die .............................................................1
4 500 8377.5 Punch ........................................................1
5 905 5315.2 Pin, spiral, .312 x .875 ...............................1
6 500 8375.9 Link ............................................................1
7 905 4847.7 Nut, 3/4–16 hex .........................................1
8 500 8376.7 Shaft, punch ..............................................1
9 905 5316.0 Pin, groove, .312 x 1.75 ............................1
10* 905 1762.8 Screw, socket head, 6–32 x .38 ................2
11* 500 8382.1 Standoff .....................................................1
12* 500 8383.0 Washer ......................................................2
13 501 0466.7 Handle unit (includes one of item 14) ........1
14 905 1174.3 Grip............................................................2
15
78-3310-
50617
10465
08379
08377
55315
08375
54847
08376
55316
51762G
08382
08383
10466
51174
08384 500 8384.8 Decal, identification ...................................1
* 10467 501 0467.5 Pin kit (includes items marked with an asterisk)
