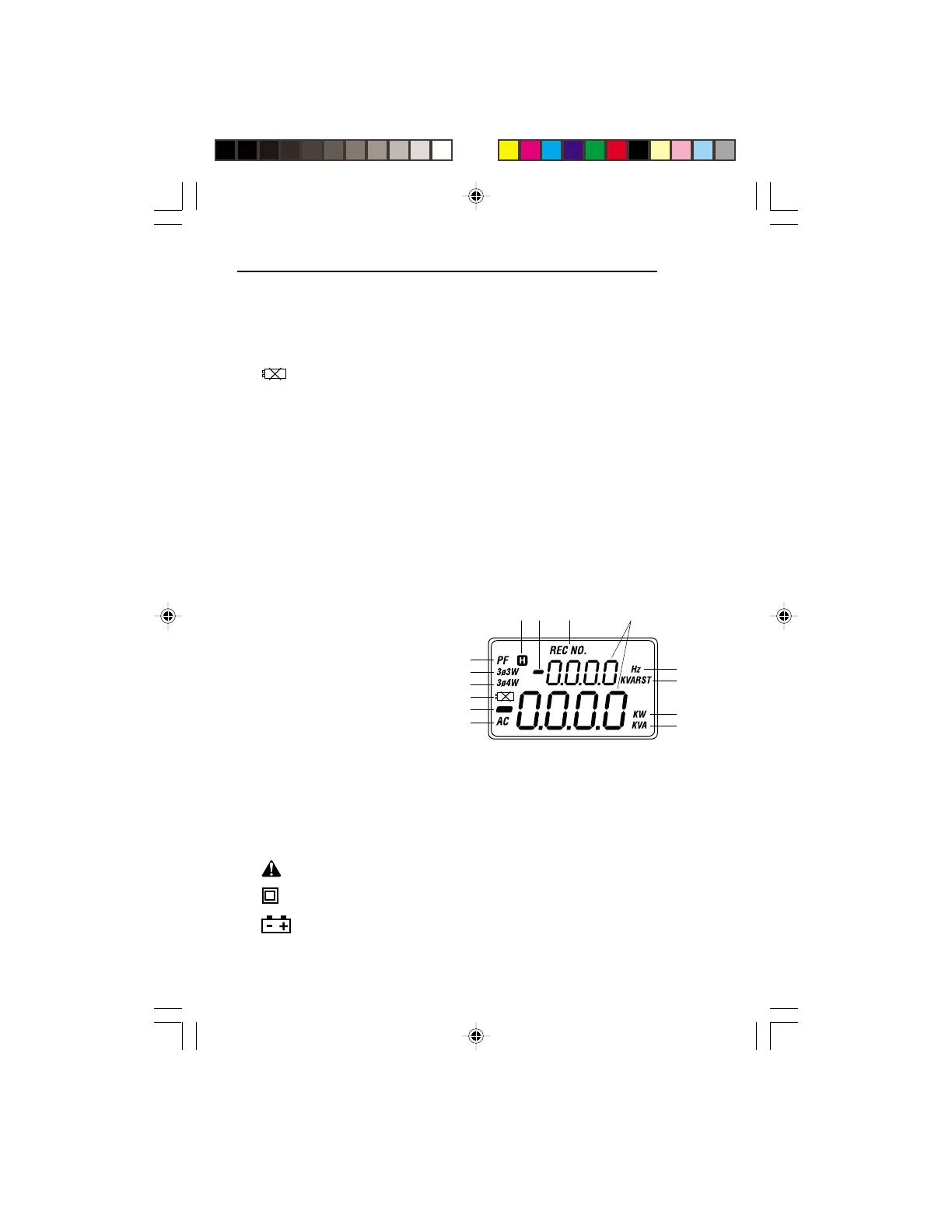

Display Icons
12. AC Alternating Current
13. – Polarity Indicator
14. Low Battery
15. 3Ø4W Three-Phase Four-Wire Circuits
16. 3Ø3W Three-Phase Three-Wire Circuits
17. PF Power Factor
18. H Hold
19. REC Indicates that data is stored in memory
20. REC NO. Indicates that stored data is on the display
(1, 2, 3 or 4)
21. 0.0.0.0 Numeric Display
22. Hz Frequency (in Hertz or cycles per second)
23. K Kilo (10
3
)
24. V Volts
25. A Amps
26. R First Phase
27. S Second Phase
28. T Third Phase
29. KW Kilowatt
30. K Kilo (10
3
)
31. V Volts
32. A Amps
OL Overload (not shown)
Symbols on the Unit
Read the instruction manual.
Double Insulation
Battery
17
16
15
14
13
12
22
23–28
29
30–32
18 13
21
19–20
