Typical Applications (cont’d)
Trace from
transmitter
toward
break
or short.
Conductor with break
or short to ground
Signal stops at
break or short.

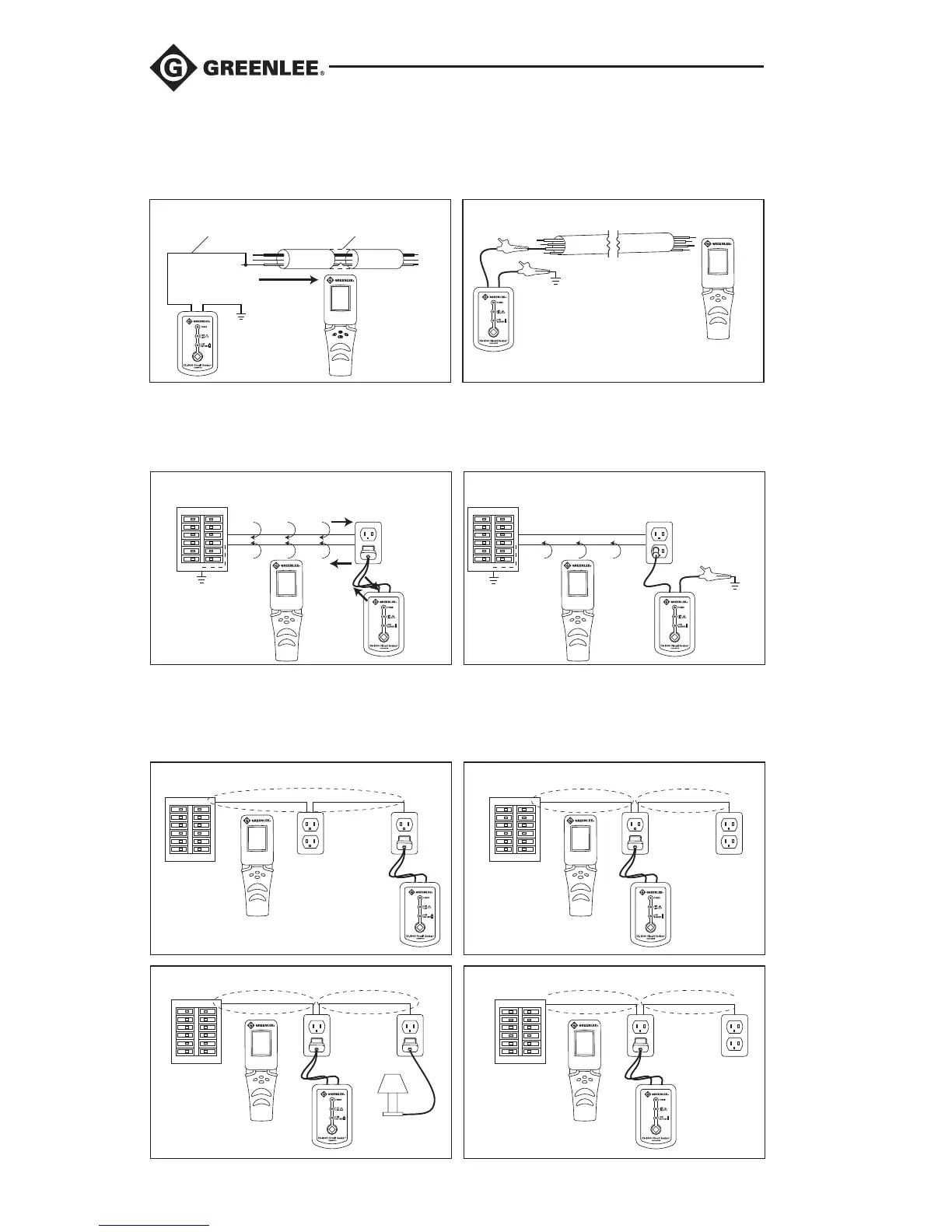

Finding Breaks or Shorts
Tracing Signal Cancellation
Connecting for Best Signal
Sorting Wires
Weak Signal Setup–
Signals Cancel
Strong Signal Setup–
No Signal Canceling
Separate
Ground
STRONGER
Closed Loop
Energized
Breaker
STRONGER
Closed Loop Closed Loop
STRONGER
Energized
Breaker
Light ON
(Load)
STRONGER
Closed Loop Open Loop
WEAKER
Energized
Breaker
WEAKER
Open Loop Open Loop
WEAKER
De-energized
Breaker
