LS60L Battery-powered Punch Driver
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
11

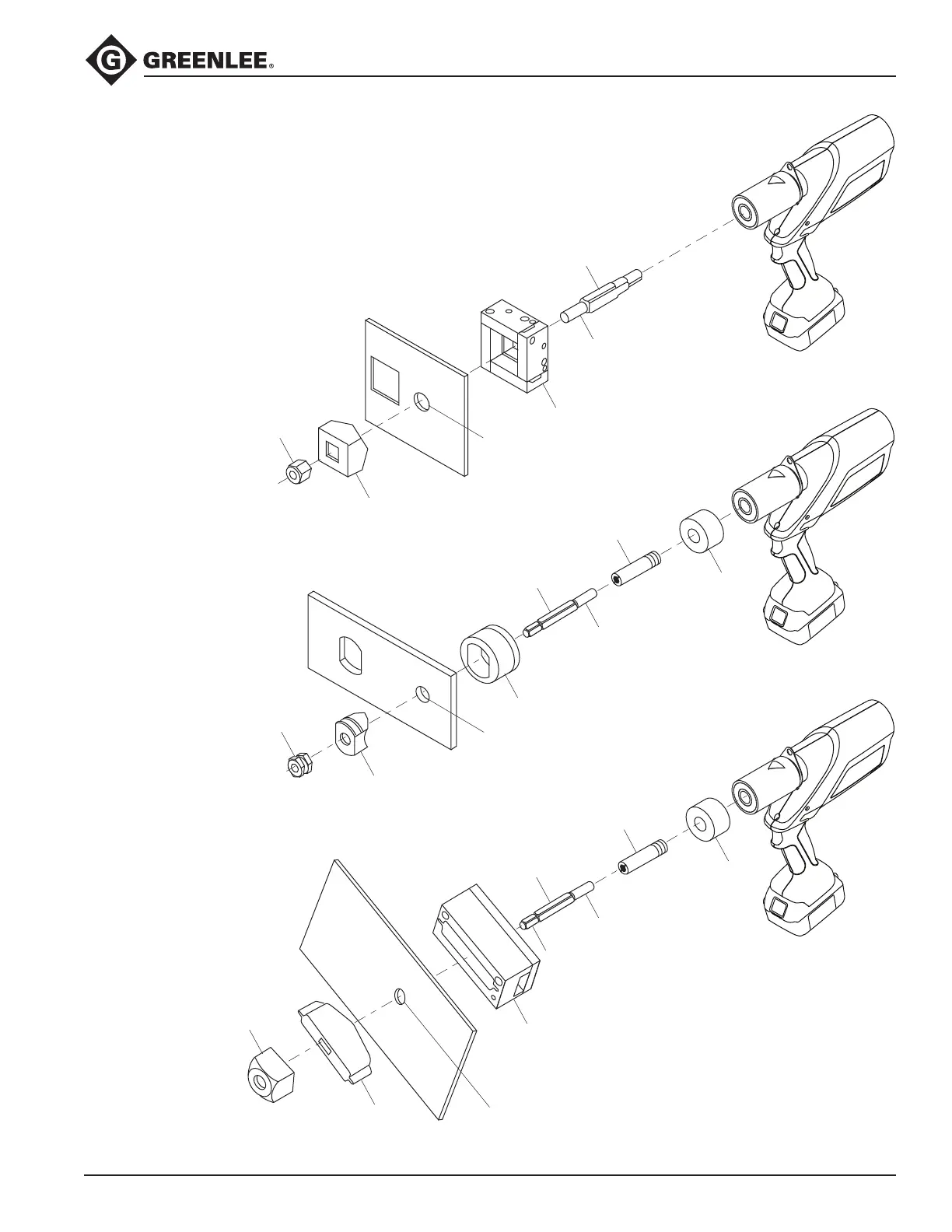

Setup and Operation (cont’d)
Die
Pilot Hole
60235
3/4" Counter Nut
End with Long Threads
60118
3/4" Draw Stud
03248
Spacer
Counter Nut
Adapter
Draw Stud
Threads with Flats
7/16" (11.1mm)
Pilot Hole
04638
3/8" Counter Nut
33967
3/8" Adapter
34421
3/8" Draw Stud
Punch
End with Long Threads
Punch
Die
03248
Spacer
End with Long Threads
Die
Punch
Pilot Hole
Punching with
1.811" [46.0 mm] through 2.677" [68.0 mm] square
1.312" x 2.625" [33.3 mm x 66.7 mm] rectangular
through 1.378" x 2.559" [35.0 mm x 65.0 mm] rectangular
Punching with
“D”, Double “D”,
and Key sizes
Punching with
Electronic Connector
Panel Punches
To Next Page
