Greenlee GATOR LS60L User Manual

LS60L Battery-powered Punch Driver
Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
10

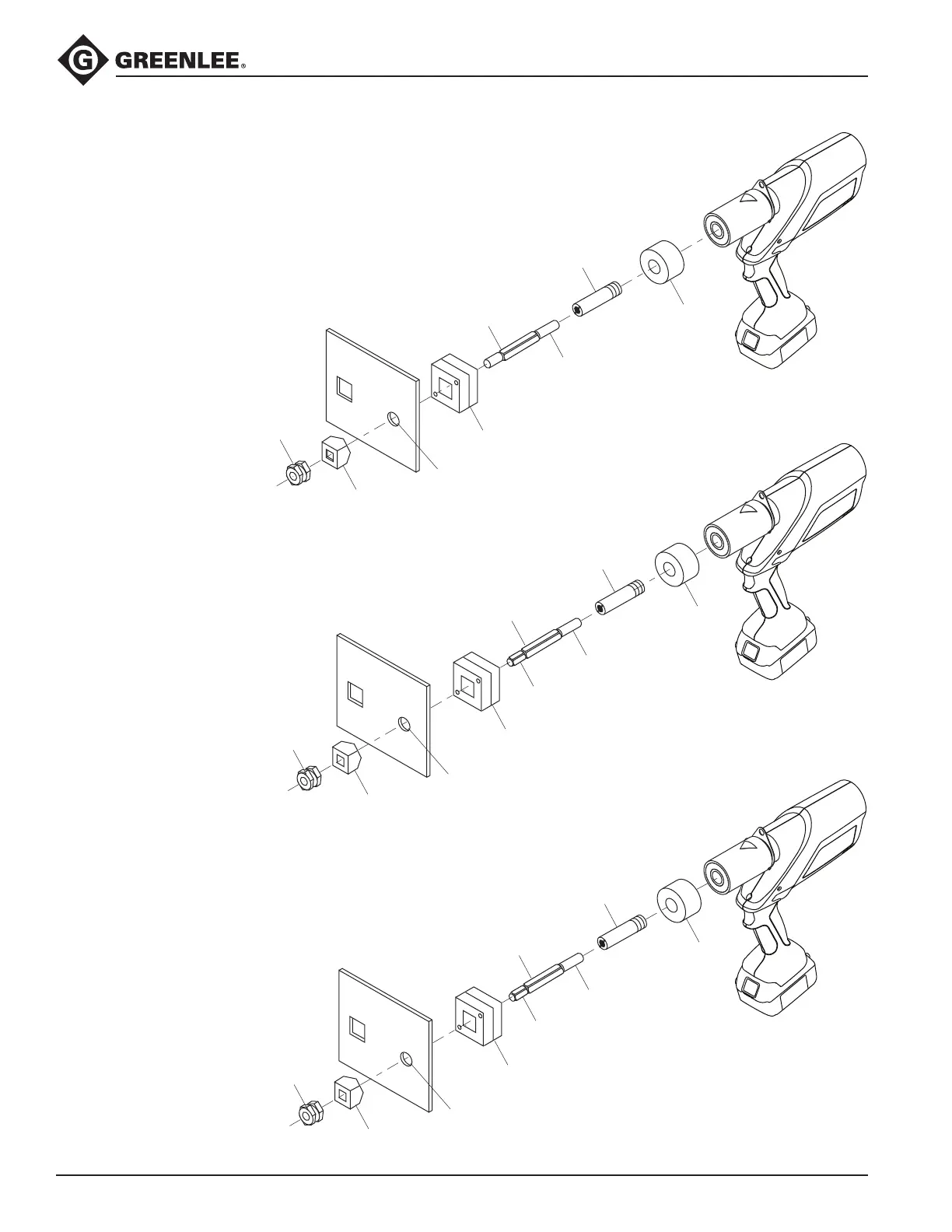

Setup and Operation (cont’d)
03248
Spacer
Pilot Hole
Die
Punch
05244
1/4" Counter Nut
60114
1/4" Adapter
End with
Long Threads
60115
1/4" Draw Stud
End with Long Threads
Threads with Flats
Pilot Hole
04638
3/8" Counter Nut
33967
3/8" Adapter
60116
3/8" Draw Stud
Pilot Hole
60258
1/2" Counter Nut
60167
1/2" Adapter
60117
3/8" Draw Stud
Punch
Die
03248
Spacer
03248
Spacer
End with Long Threads
Threads with Flats
Die
Punch
Punching with
1/2" (0.500" [12.7 mm]) square
7/16" x 7/8" (0.437" x 0.875" [11.1 mm x 22.2 mm]) rectangular
Punching with
5/8" (0.625" [15.9 mm]) through 0.945" [24.0 mm] square
0.670" x 0.749" [17.0 mm x 19.0 mm]) rectangular
Punching with
1" [25.4 mm] square
0.750" x 1.140" [19.1 mm x 29.0 mm] through
1.250" x 1.380" [31.8 mm x 35.1 mm] rectangular
