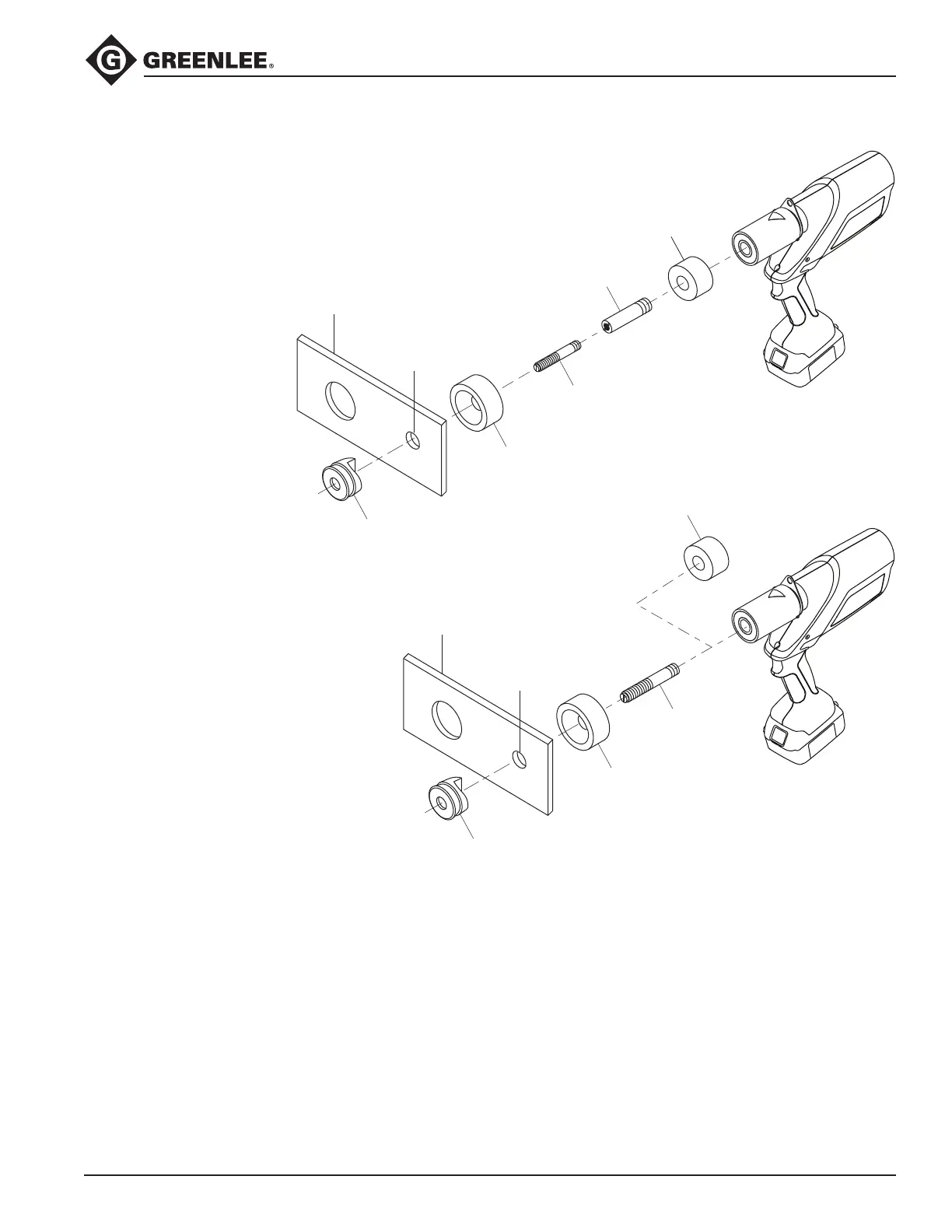

Setup and Operation (cont’d)
Punching with
1/2" (ø 0.885" [22.5 mm])
conduit size
Punching with
3/4" (ø 1.115" [28.3 mm])
to 2" (ø 2.416" [61.5 mm])
conduit sizes
3/4"
Draw Stud
7/8" (22.2 mm)
Pilot Hole
Punch
Material
Being
Punched
03248
Spacer
30043
3/8" Draw Stud
Die
1/2" (12.7 mm)
Pilot Hole
33967
3/4" Adapter
03248
Spacer
Material
Being
Punched
03248
Spacer
Die
Punch
