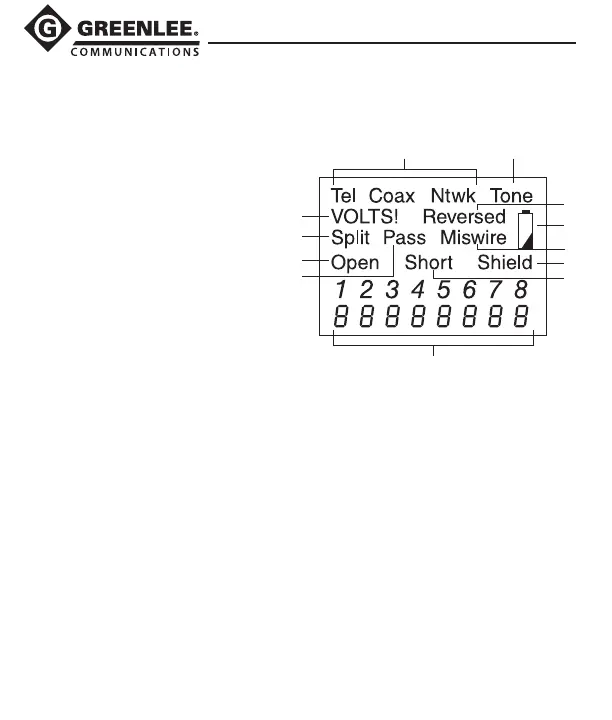

LCD Icons
The unit’s interface employs a high-contrast, backlit LCD panel to aid ease of use.
The icons are used in the following way:
1.
Tel, Coax, Ntwk: Telephone, Coaxial,
or Network test mode is selected.
2.
Tone: Pair Tracing Tone is active.
3.
Reversed: Polarity of telephone pair
is reversed.
4.
Battery is low.*
5.
Miswire: Wiring is not one-to-one.
6.
Shield: Shield or screen is
connected.
7.
Short: Some wires are short circuit.
8.
Digits showing wiremapping to
remote unit.
9.
Open: Some wires are open circuit.
10.
Pass: All wires are connected one-to-one (correct).
11.
Split: Split pair is detected.
12.
VOLTS!: Voltage is detected on one or more pairs; testing is inhibited. Disconnect quickly
to prevent damage.
*
The NETcat Micro requires one 9 V snap-type battery (alkaline types are recommended).
When the low battery icon is displayed, a few hours of typical use remain. Using the unit
with a low battery will eventually affect the accuracy of measurements.
12
1
8
4
3
6
7
5
11
9
10
2

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Greenlee NETcat NC-100 and is the answer not in the manual?

Greenlee NETcat NC-100 Specifications

General IconGeneral
Display typeLCD
Product colorGreen
LED indicatorsYes
Operating temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 95 %
Operating voltage9 V
Number of batteries supported1
Weight and Dimensions IconWeight and Dimensions
Weight220 g
Dimensions (WxDxH)70 x 33 x 150 mm
