Greenlee NETcat NC-100 User Manual

Test Details
Voltage Checks
This test checks for a voltage in excess of a few volts DC across each pair. If a voltage is
detected above this threshold, then testing will be inhibited.

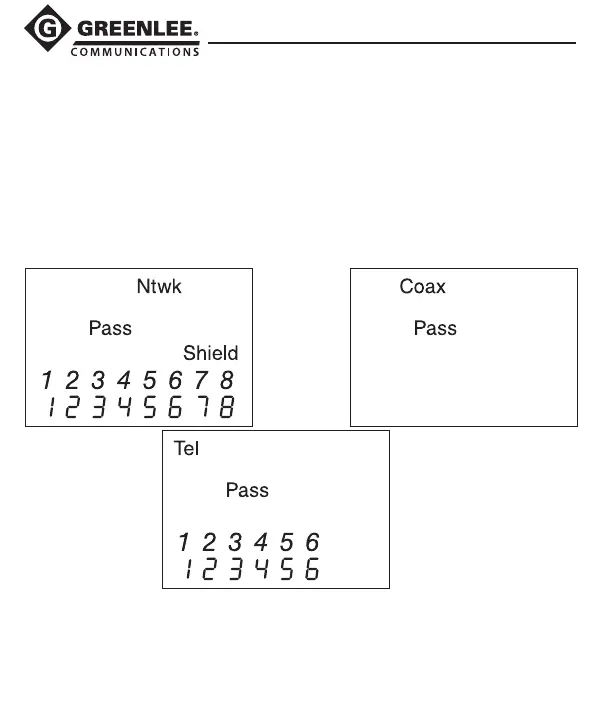

Wiremap
This test checks the cable for correct wiring when the remote unit is connected to the end of
the cable under test. The cable configuration is tested for shield continuity (if fitted), opens,
shorts, reversed pairs, crossed pairs, and split pairs. Below are examples of detectable faults
along with a good wiremap.

Greenlee NETcat NC-100 Specifications

General

Display type	LCD
Product color	Green
LED indicators	Yes
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Operating voltage	9 V
Number of batteries supported	1

Weight and Dimensions

Weight	220 g
Dimensions (WxDxH)	70 x 33 x 150 mm
