ALL BOLTS IN CONNECTION WITH REPLACEMENT/ADJUSTMENT OF BLADES
MUST BE TIGHTENED AFTER TABLE 16 – PAGE 50!
1. To adjust the blade diameter of the RI edge trimmer,
umbraco bolt (M12) incl. spring disc on the support
plate/underside of the RI edger is removed.
(M12 bolt is with left-hand thread)

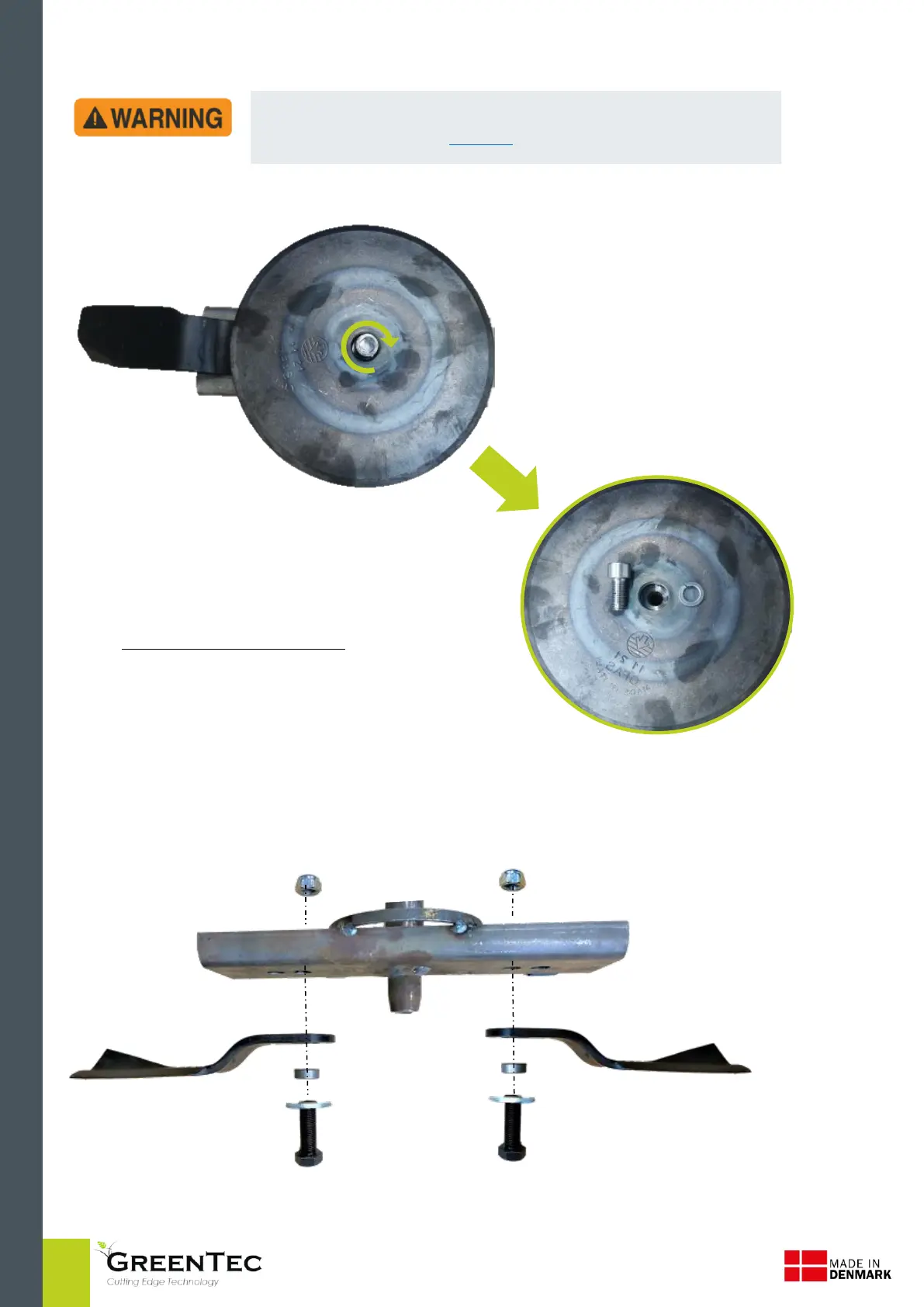

Illustration of underside of support plate and knife blades (1/2): RI barrier mower 60 & 80
2. Then remove (2x) blade bolts and lock nuts (M24) incl. spacers and knife bushings
Illustration of blade adjustment (1/2): RI barrier mower 60 & 80
