GreenWorks 24072 - Assemble as a Mulcher

13
ASSEMBLY

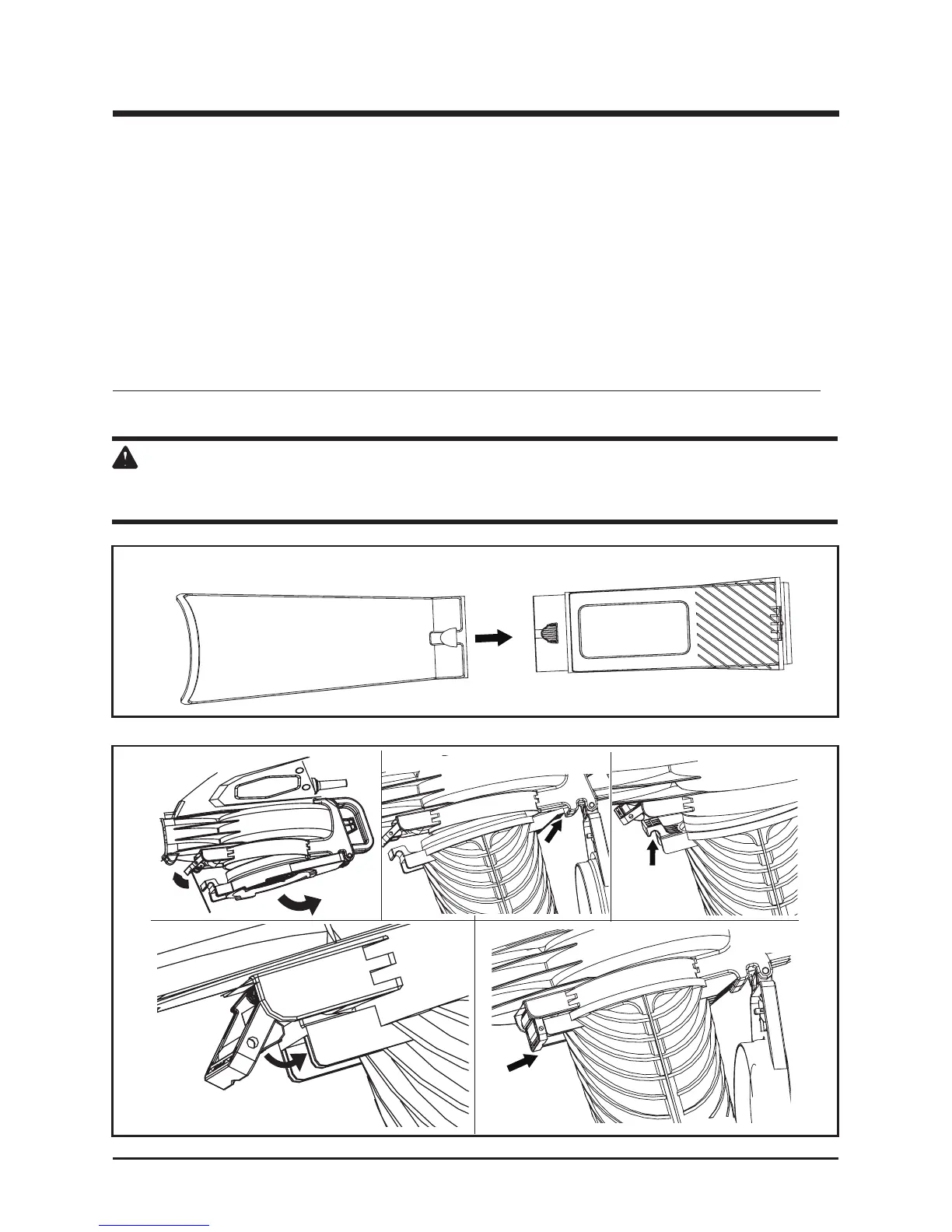

ASSEMBLE AS A MULCHER
1. Slide the front and rear mulcher tubes together until the lock button engages. (See g 3)
2. Pull the lock button forward to disengage the gate. Hold the gate open. (See g 3.1)
3. Insert the “wedged” end clip of the mulcher tube into the rear clip. (See fig 3.2). Push the
“hooked” end clip of the mulcher tube into the front clip. (See g 3.3). Press the lock button back
to engage the mulcher tube. (See g 3.4)
4. To remove mulcher tubes, follow the steps (3) (2) (1).
5. Insert the bag adaptor into the blower outlet. Lock the bag adaptor with the lock button. To re-
move the bag, simply press lock button and remove bag. (see Fig.5).
W A R N I N G
To prevent serious personal injury, make sure the switch is in the OFF position, it is unplugged, and
the impellers have stopped before attaching or removing tubes.
⑤
④
②
③
NOTE: It may be necessary to remove the blower tube or mulcher tubes to clear a blocked tube or impeller.
(See Fig. 3)
Fig.3
Fig.3.1 Fig.3.3
Fig.3.4
Fig.3.2
Fig.3.5
①
Lock button
