ASSEMBLY

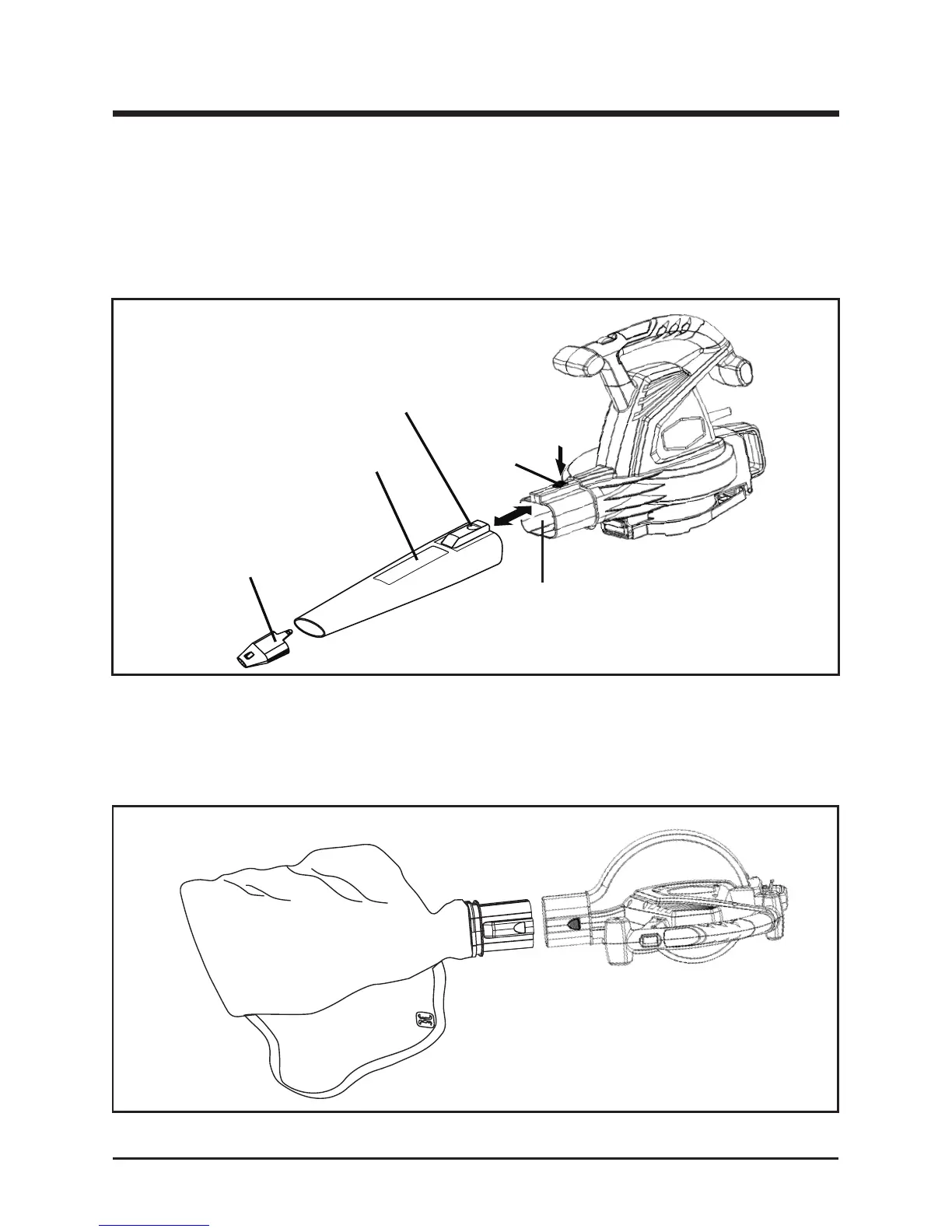

ASSEMBLE AS A BLOWER ((See Fig. 4))
1. Slide blower tube forward until the notched areas on the blower housing click into the slots on
the tube.
2. Insert the concentrator nozzle onto the regular nozzle to lock. (Concentrator nozzle is used to
increase air ow in tight areas: ower
beds. under decks, etc.).
INSTALLING BAG WITH SHOULDER HARNESS (See Fig.5)
While standing in the operating position adjust the length to t the operator’s size. Pull the tab to
lengthen, pull the strap to shorten.
Fig. 4
Fig. 5
SLOT
BLOWER
TUBE
CONCENTRATOR
NOZZLE
NOTCHED
AREA
AIR
OUTLET
