14
ASSEMBLY
ASSEMBLING THE WHEELS (See Figure. 5)
The wheels are used to control the depth of operation. To adjust the height of the wheels.
1. Disconnect from power source.
2. Place cultivator in a stable position in Fig. 5
3. Insert the wheel assembly (2) into the support rod (3). (Fig. 5)
4. Align wheel assembly hole to desired position. Slide bolt (5) through hole and attach hitch
pin (6) to bolt.
5. The tilling is Position A and Position B.
6. Wheels can be removed for greater tilling depth.

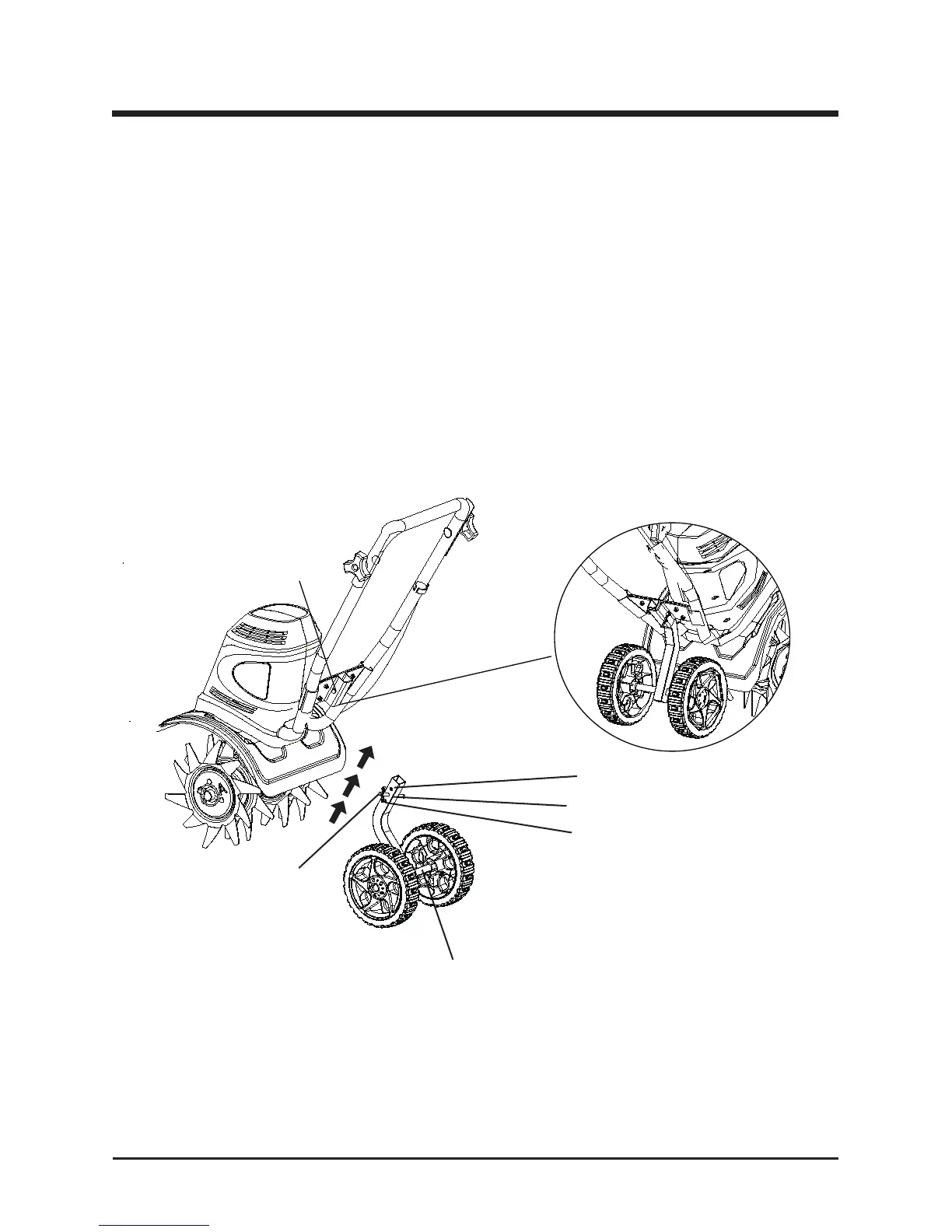

Fig. 5
POSITION A - HIGHEST
HITCH PIN(6)
Slide bolt(5)
Support rod(3)
POSITION B - DEEPEST
highest lowest
(2) WHEEL ASSEMBLY
