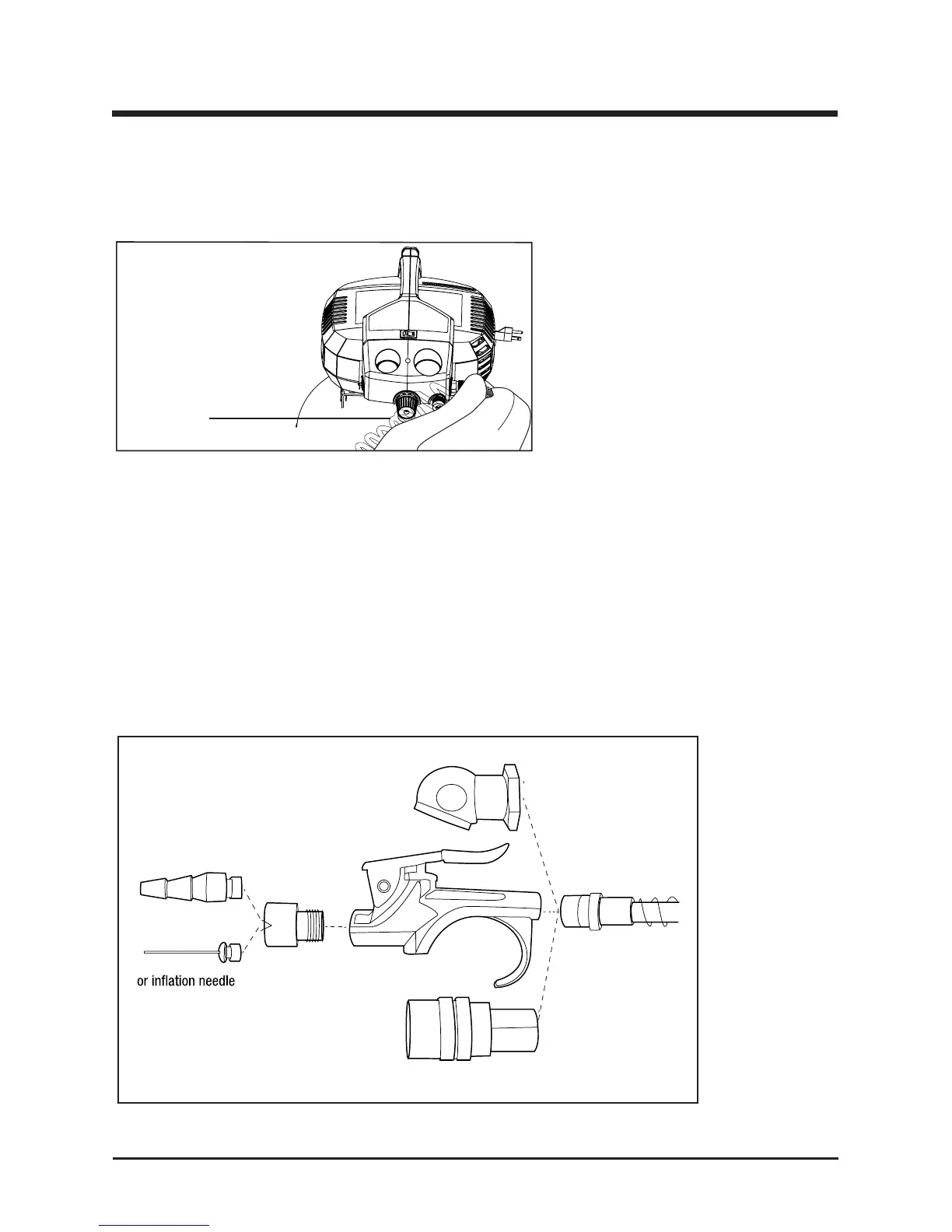

ASSEMBLY INSTRUCTION
ATTACHING AIR HOSE TO COMPRESSOR
1, Using your left hand push quick connect towards the body of the compressor.
2, Firmly press t the male quick connect portion on the air hose into the female quick
connect and release female quick connect locking hose in place.
NOTE: When connecting or disconnecting air hose remove air from tank.
ASSEMBLE ACCESSORIES
The unit supplied with an accessory kit, choose the accessory needed.
Assemble Accessory Kit
1. Assemble female tire chuck/blow gun/quick coupler to the end of hose and tighten
securely wiith wrenches.
2, Assemble blow gun adaptor to the blow gun.
3, Assemble ination needle/tapered nozzle to the blow gun adaptor.
End of hose
Tire chuck
or quick connector
Blow gun
adaptor
Tapered nozzle
or blow gun
Fig. 2
RECOIL HOSE
Fig. 3
To Next Page
