GreenWorks MO09B01 - 13 Exploded View

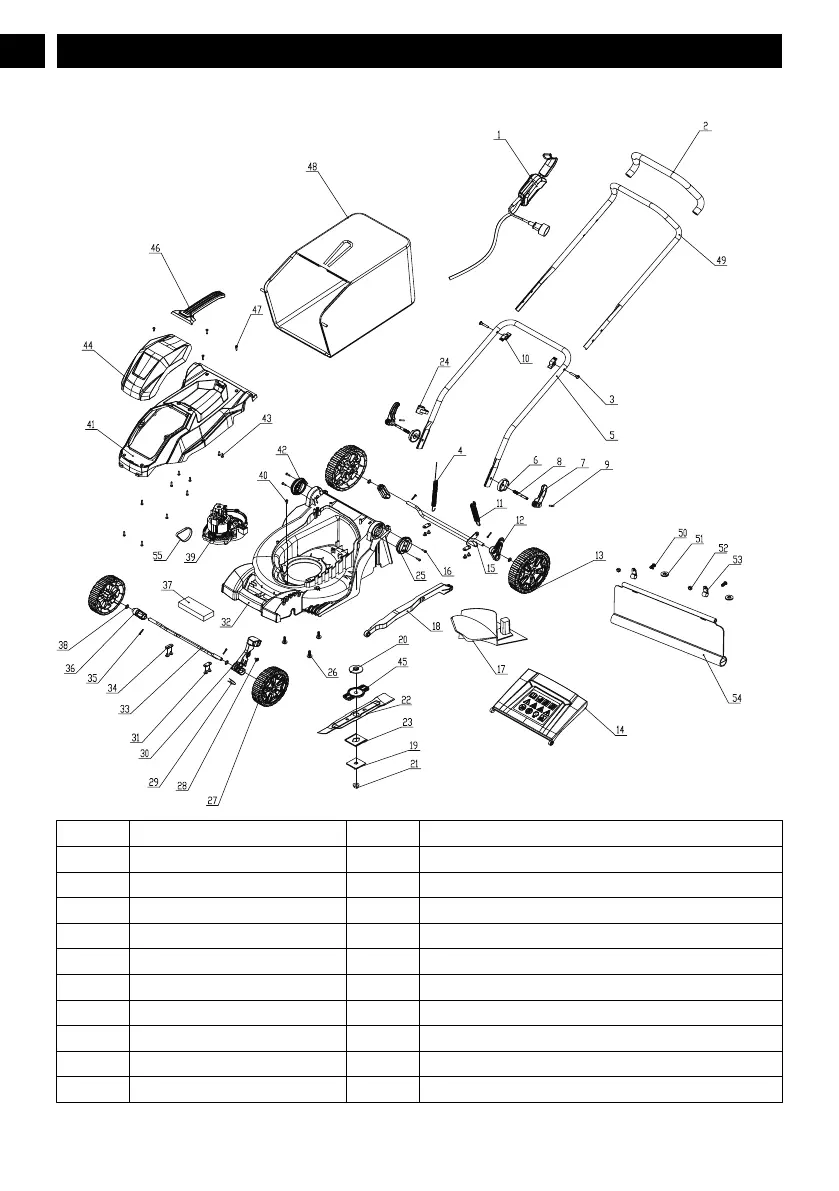

13 EXPLODED VIEW
48
42
17
4
6
25
16
26
32
14
39
44
41
46
15
13
12
18
11
20
30
45
22
19
21
23
27
38
31
34
33
28
36
35
43
47
29
24
10
3
5
9
7
8
2
49
1
40
37
50
51
52
53
54
No. Item No. QTY Description
1 311052321 1 Switch box assembly
2 34901461A 1 Sponge
3 322021558 2 Bolt
4 333071559 1 Tention spring (rear cover)
5 333041558 1 Lower handle
6 341211558 2 Washer
7 34102466-1 2 Quick release lever
8 322011558 2 Stud
9 32901466 2 Pin
10 3410835AB 2 Screw cap
