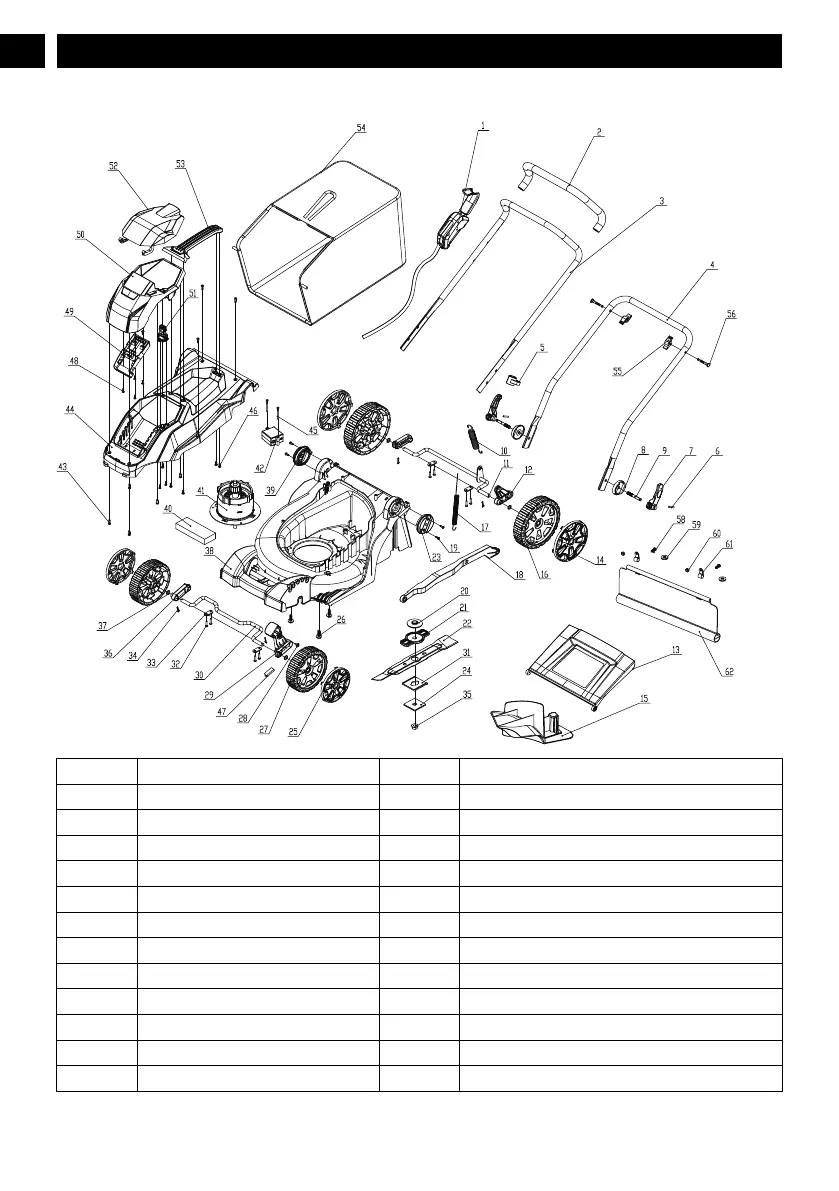

13 EXPLODED VIEW
42
41
51
54
22
4
38
44
39
23
35
21
31
15
13
17
56
8
55
53
24
20
49
50
52
26
30
11
28
32
12
33
29
10
18
37
36
5
48
46
19
43
47
3
1
2
7
6
9
45
27
25
16
14
40
34
58
59
60
61
62
No. Part No. Qty Description
1 311031558 1 Switch box assembly
2 34901461A 1 Sponge
3 333031558 1 Upper handle
4 333041558 1 Lower handle
5 3411135-1 1 Wire hook
6 32901466 2 Pin
7 34102466-1 2 Quick release fasteners
8 341211558 2 Washer
9 322011558 2 Stud
10 332031558 1 Height adjustment tension spring
11 311121558 1 Rear wheel axle
12 341191558 1 Rear wheel axle bracket
