GreenWorks MO40L00 - 12 Exploded View

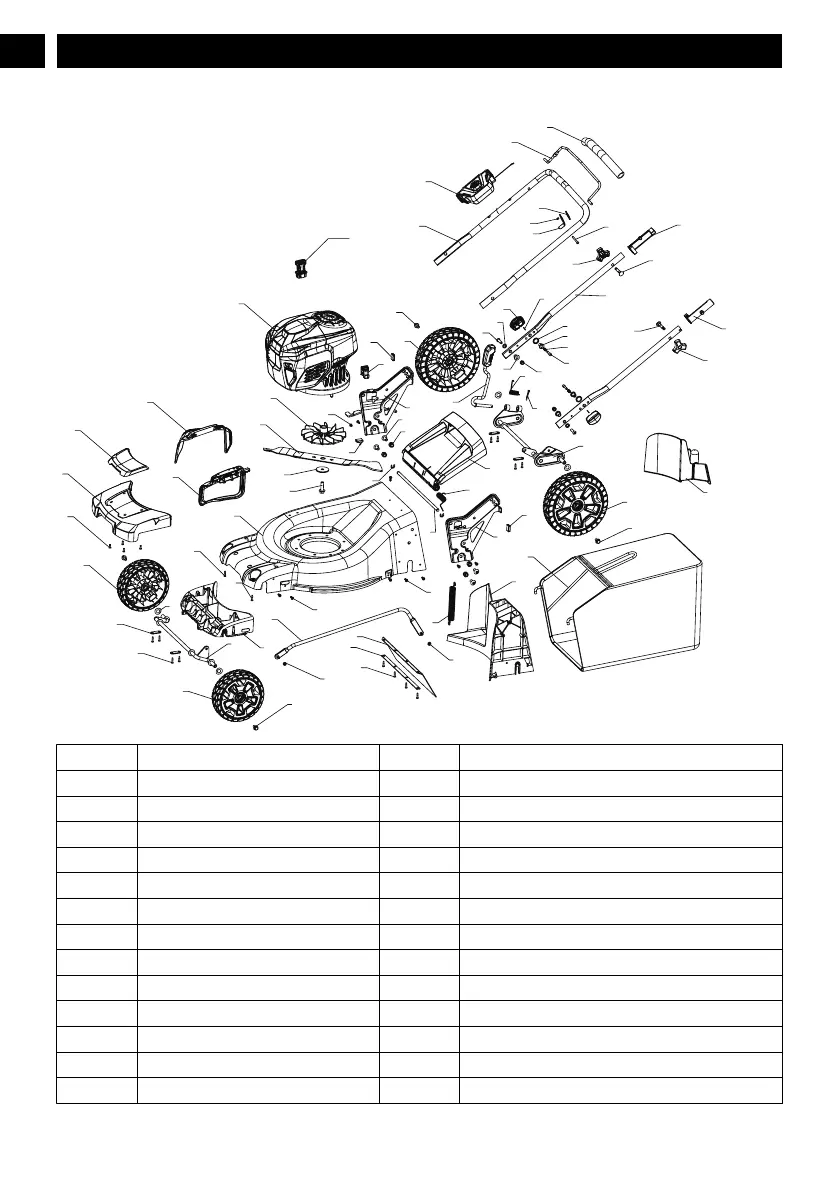

12 EXPLODED VIEW
1
2
3
4
5
6
7
8
9
10
11
9
13
12
15
11
16
17
14
14
17
18
19
20
11
21
22
23
23
23
24
25
26
27
28
29
30
31
33
32
34
36
35
37
39
41
40
38
42
43
35
44
46
45
47
48
49
51
52
53
50
54
55
56
57
59
58
47
46
48
21
21
11
60
61
62
63
64
65
66
No. Part No. Qty Description
1 311161571 1 40V Motor assembly
2 341191179 1 Fan
3 333011555 1 Blade
4 341011555 1 Side discharge chute
5 311061555 1 Side discharge cover assembly
6 341331179U 1 Decorative cover
7 341011571 1 Bumper
8 3220504 4 Screw
9 341281179A 2 8” Wheel assembly
10 33307470A 4 Axle press plate
11 322081163 16 Screw
12 311041571 1 Screw
13 332211179 4 Bolt
14
