GreenWorks MO48L4422 - UNFOLD THE LOWER HANDLE; INSTALL THE GRASS CATCHER; INSTALL THE MULCH PLUG; INSTALL THE SIDE DISCHARGE CHUTE

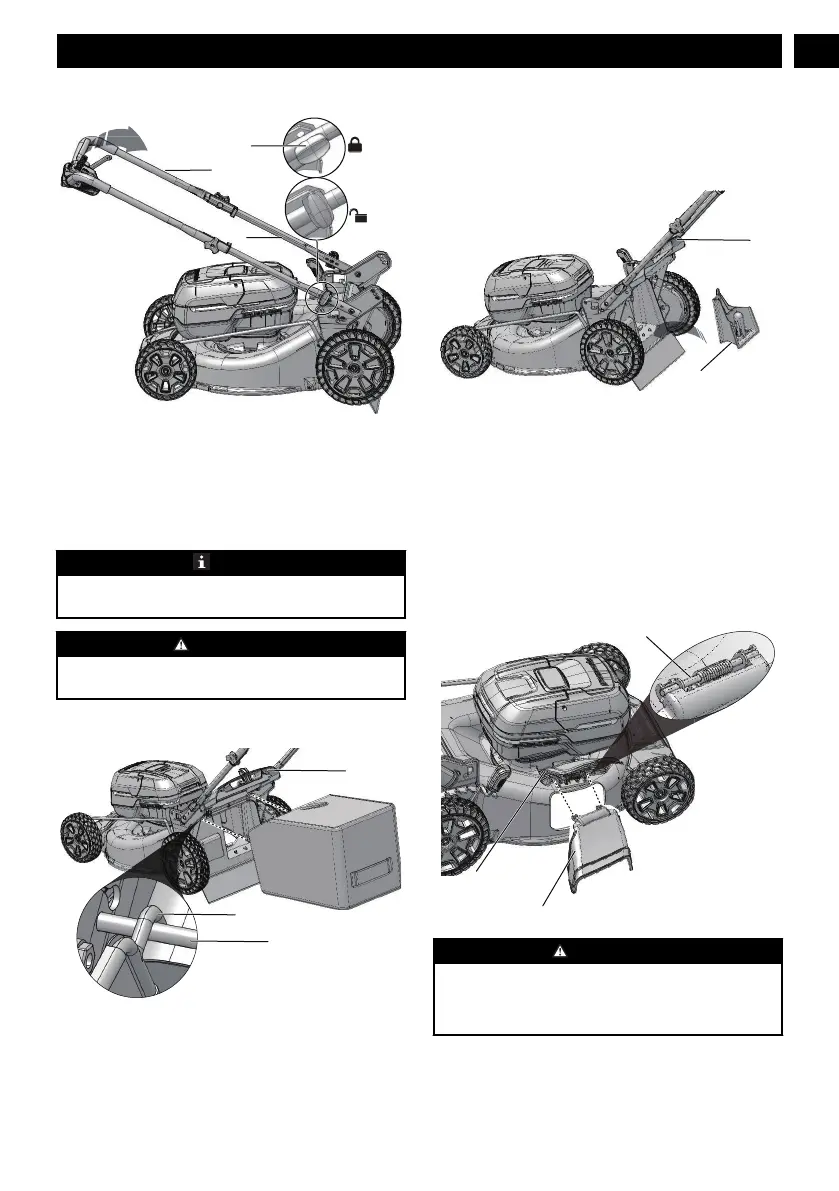

7.3 UNFOLD THE LOWER HANDLE
3
4
16
1. Pull and turn the handle knobs (16) 90°.
2. Unfold the handle.
3. Line up the handle knobs in one of the three positions on
the brackets.
4. Turn the handle knobs 90° until they engage the holes in
the brackets.
NOTE
Make sure that the two handle knobs are in the same
position.
WARNING
Do not damage or pinch the cables when you fold or unfold
the handle.
7.4 INSTALL THE GRASS CATCHER
17
6
18
1. Remove the mulch plug.
2. Remove the side discharge chute.
3. Open the rear discharge door (6) and hold it.
4. Hold the the grass catcher by its handle and engage the
hooks (17) on the door rod (18).
5. Close the rear discharge door.
7.5 INSTALL THE MULCH PLUG
6
13
1. Remove the grass catcher.
2. Open the rear discharge door (6) and hold it.
3. Hold the mulch plug (13) by its handle and fit it in the
discharge chute.
4. Close the rear discharge door.
7.6 INSTALL THE SIDE DISCHARGE
CHUTE
20
12
21
CAUTION
When you use the side discharge chute,
• Do not install the grass catcher.
• Keep the mulch plug installed.
1. Open the side discharge door (20) and hold it.
2. Line up the recesses of the side discharge chute (12)
below the pivot (21).
9
