Gregoire Besson SP9 COMPACT - General View Diagram

Operation manual SP 9 - Compact
CHAPTER III – DESCRIPTION OF PLOUGH – Page 2

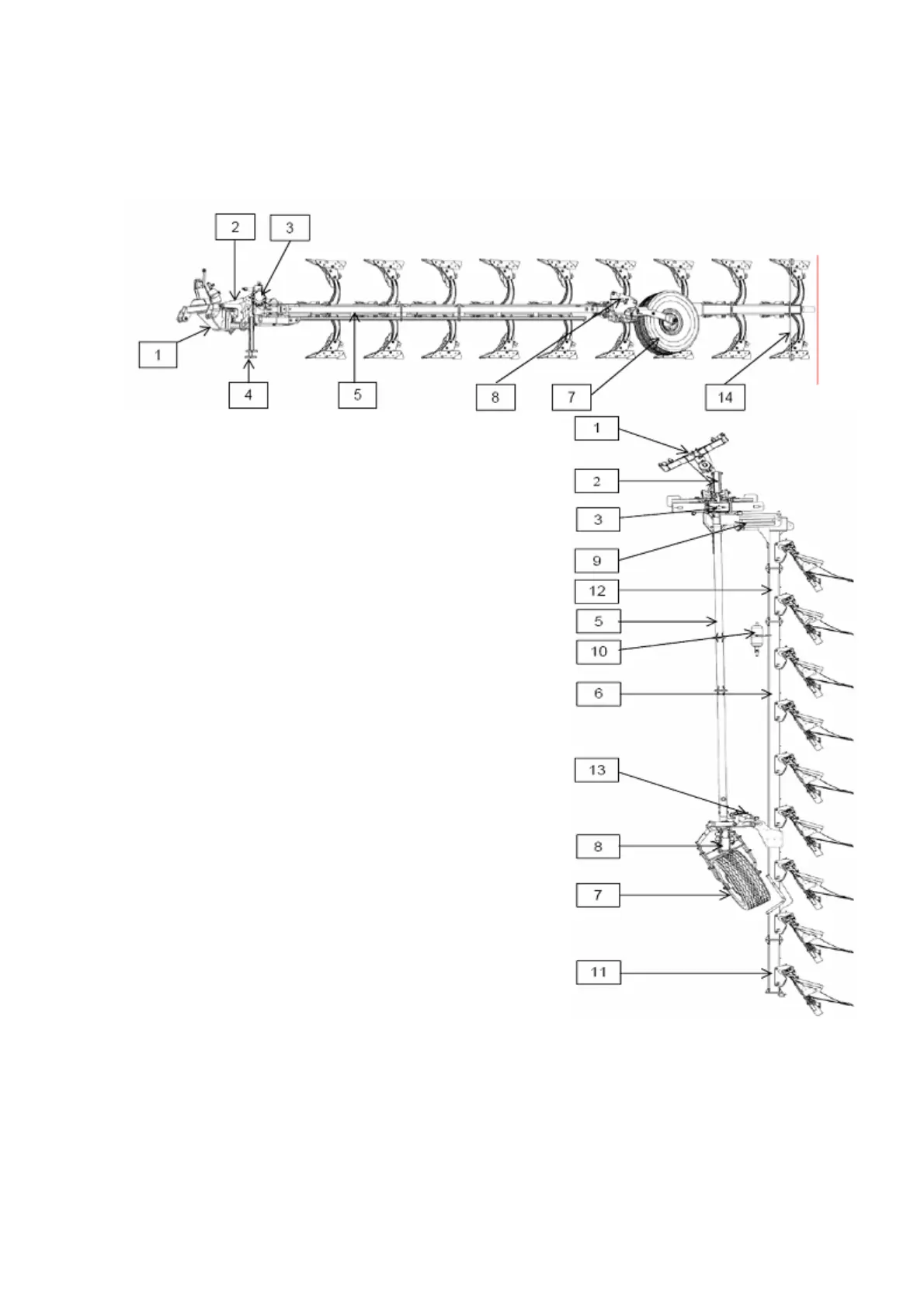

3.2. GENERAL VIEW
1 Pulling cross-rod
2 Hydraulic compensation cylinder
3 Reverse
4 Brake block
5 Bar of stabilizatiion
6. Beam
7. Wheel
8. Arm lifting cylinder
9. First furro
w adjusting
cylinder (déport)
10. Hydraulic accumulat
or for security pins adjustm
ent
11. Front additional plo
u
gh bottoms
12. Rear additional plo
u
gh bottoms
13. Arm of wheel directing (optionally cylinder)
14. Signalisation with control
