Operation manual SP 9 - Compact
CHAPTER V – ATTACHE
MENT AND DISENGAGEMENT – Page 5
5.2.6. The adjustment of the third point length:
In general, the adjustment of the third point length is performed to have the traversing in perfect
horizontal position looking from the plough side.
But this adjustment can be still refined during the plough. DANGER : During the third point adjusting
take all necessary precautions.
Leave sufficient length
of the screw thread to avoid at the wrong time the screw thread
damaging or screw loosening. The screw jumping out of its holder may cause fatal
accident. Always put on its place the fixing element tat the tractor third point with the
turning of the central female screw.
NOTICE : The big quantity of the lubricant in the inner part of the third point can prevent the
shortening. Eliminate the lubricant by the dismounting of the lubricator and release the lubricants
under the pressure.
5.2.7. Positioning of the brake block

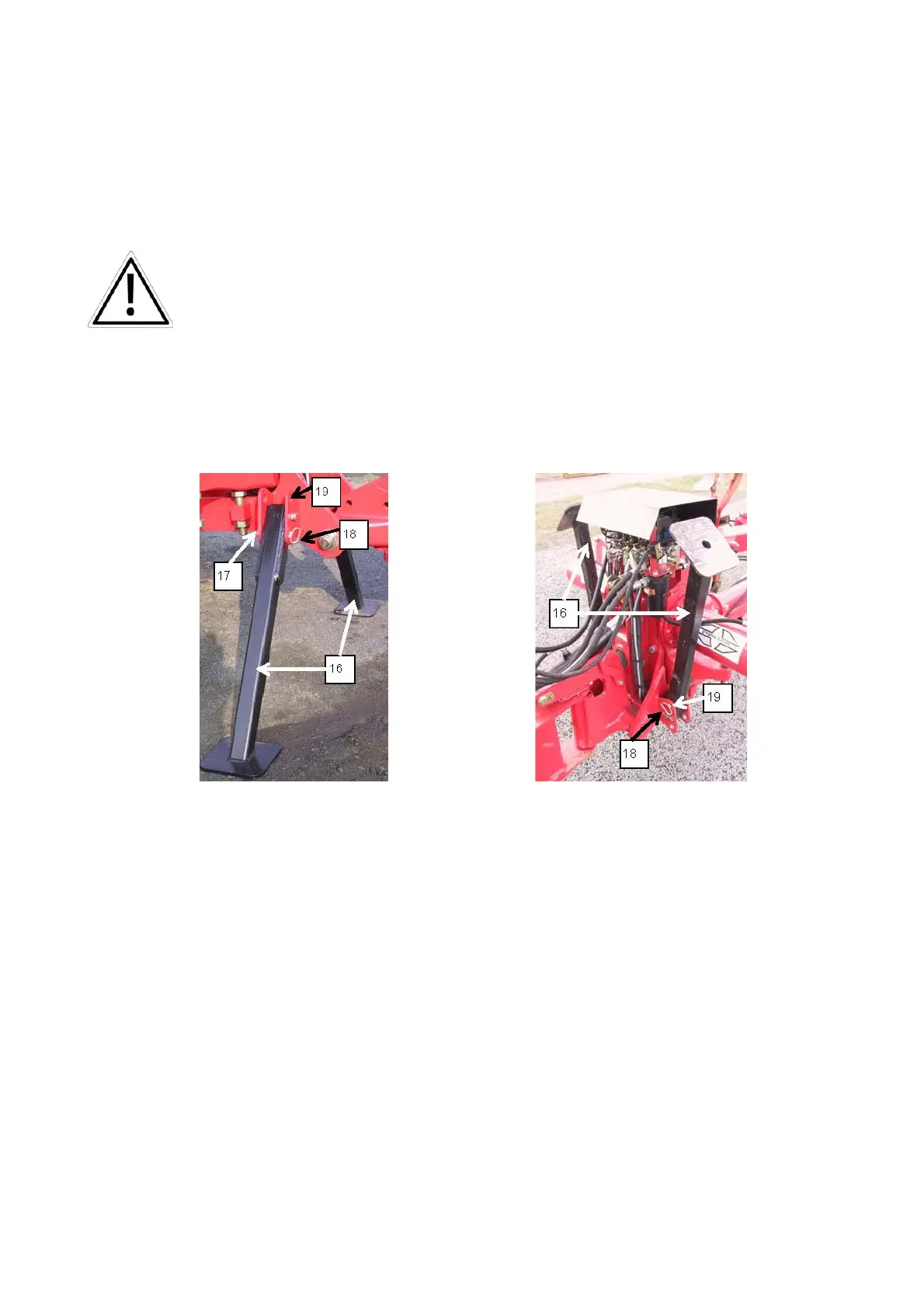

Brake block in the position of disengaged plough Brake block in the position of attached plough for transporting
The plough have two brake blocks (16) which are placed on the two sides of the turning
head.
¾ After attachment of the plough lift the three point draw bar to let brake blo
cks out.
¾
Pull out the elastic safety
pin (17),
¾
Pull it on the
bolt (18),
¾
Move the brake blocks up to place them into the transporting
position.
¾
Adjust the bolt back (18) but in the hole of the upper binder (
19).
¾
Fasten the bolt with the elastic safety
pin (17).
¾
Perform the same operation on the ot
her brake block.
