Grindmaster CS2-220 - Page 13

CS Espresso Machine Grindmaster
®®
13

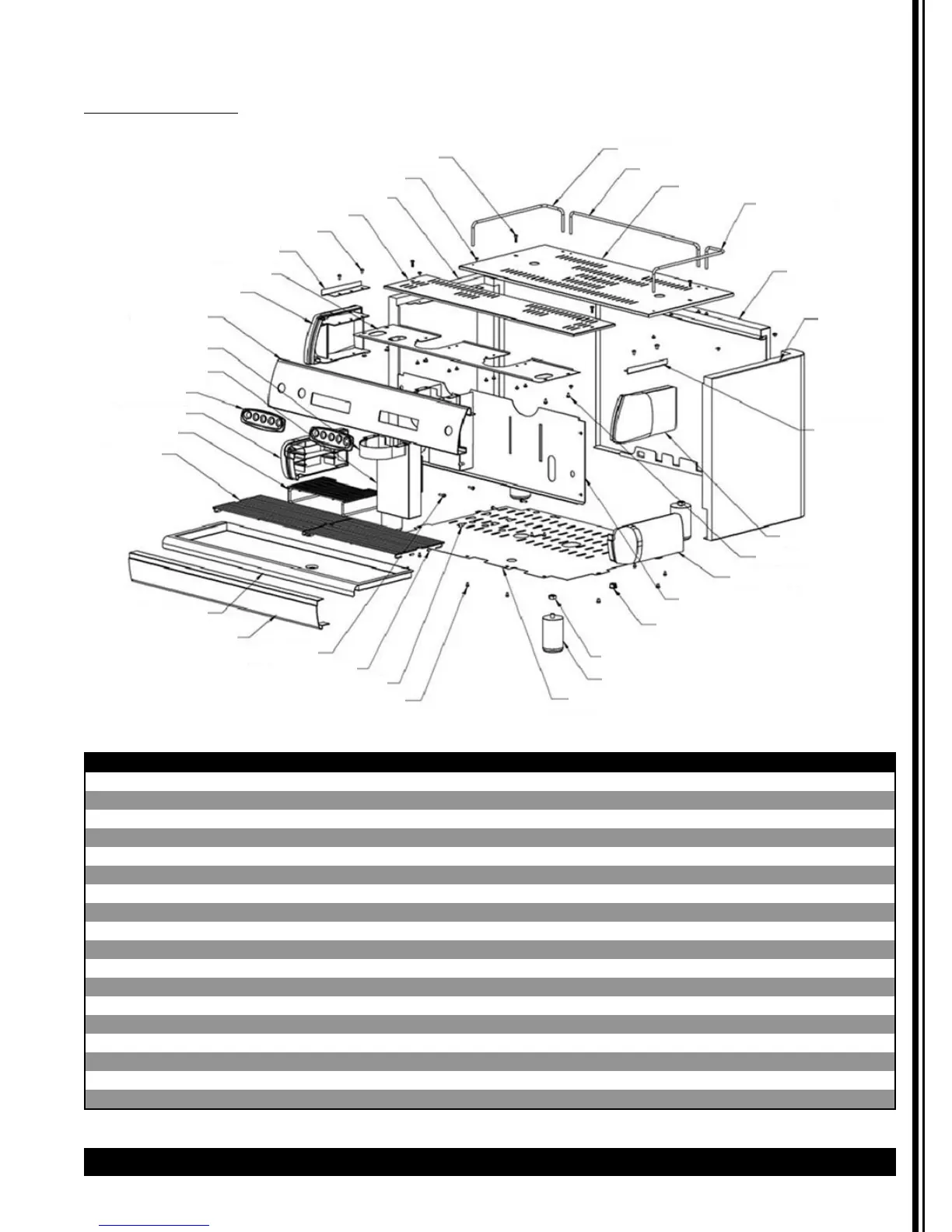

Parts Diagram (continued)
Body Parts CS2-220
Item Part # Descripon Item Part # Descripon
1 SCREW M4*16 19 DRAIN TUBE 5/8" HIGH TEMP
2 SCREW M4*5 20 SCREW M6*8
3 LEFT SIDE PANEL(BLACK) 21 SCREW M4*6
4 GROUP COVER 22 BOTTOM METAL COVER (ETL)
5 SCREW M4*8 (SUS) 23 410-00482 FOOT
6 TOP RIGHT SIDE PANEL SUPPORT 24 NUT M10
7 CABLE COVER 25 CABLE PROTECTION RING (ETL)
8 TOP LEFT SIDE PANEL 26 S.STEEL BOILER COVER
9 OPERATION PANEL 27 DOWN RIGHT SIDE PANEL
10 SURROUND STEEL 28 TOP RIGHT SIDE PANEL
11 VALVE COVER 29 TOP LEFT SIDE PANEL SUPPORT
12 410-00483 OPERATE FACEPLATE 30 RIGHT SIDE PANEL (BLACK)
13 DOWN LEFT SIDE PANEL 31 BACK PANEL(BLACK)
14 410-00484 CUP RACK 32 CUP FENCE-RIGHT
15 410-00488 LOWER DRAIN PAN 33 UPPER STAINLESS STEEL GRILL
16 410-00487 DRAIN PAN 34 CUP FENCE-REAR
17 BASE SURROUND FRONT 35 CUP FENCE-LEFT
18 SCREW ( 4mm*15 )
1
35
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
34
33
32
31
30
29
28
5
27
26
25
24
23
22
