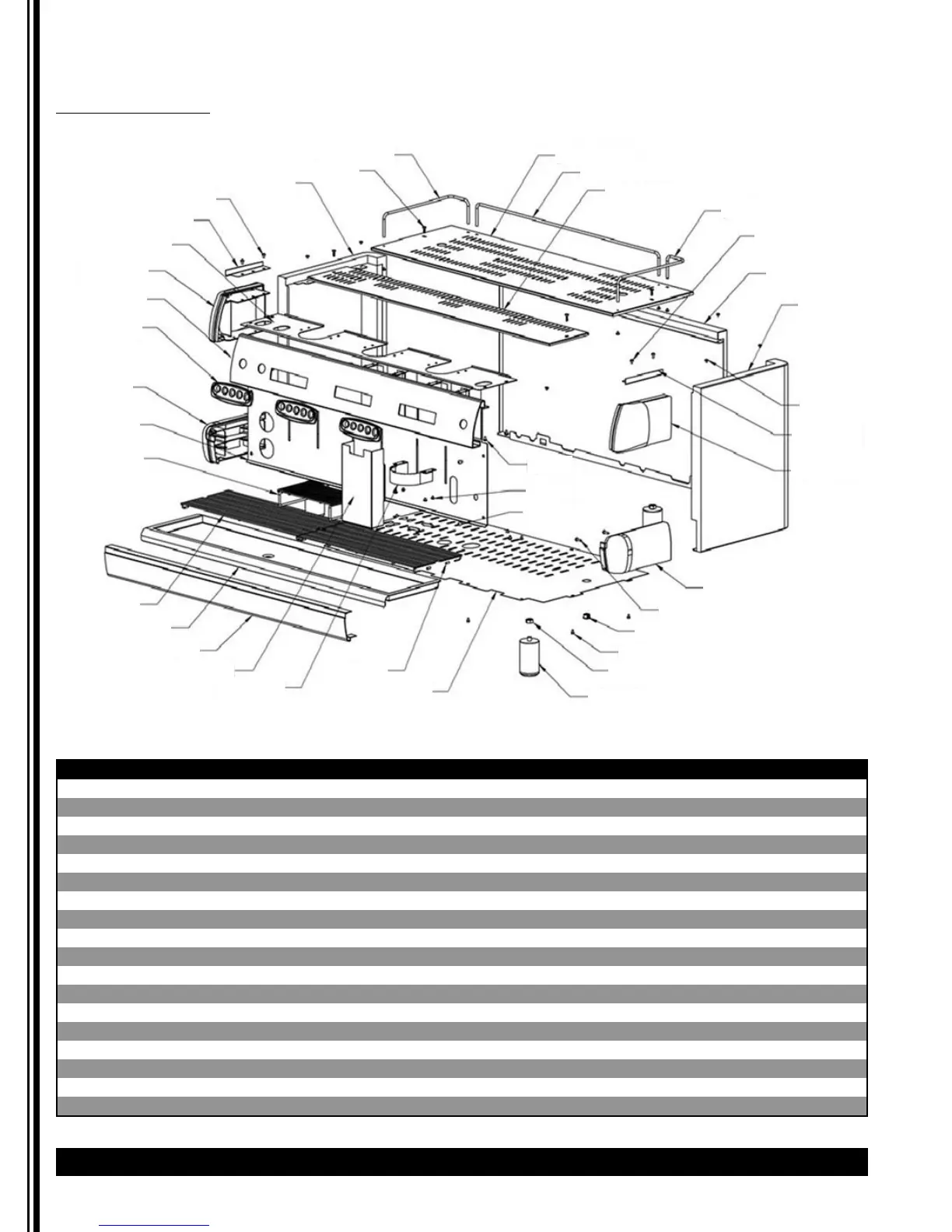

Parts Diagram (continued)
Body Parts CS3-220
Item Part # Descripon Item Part # Descripon
1 CUP FENCE-LEFT 19 BOTTOM METAL COVER (ETL)
2 SCREW M4*16 20 410-00482 FOOT
3 LEFT SIDE PANEL(BLACK) 21 NUT M10
4 SCREW M4*8 (SUS) 22 SCREW M4*6
5 TOP RIGHT SIDE PANEL SUPPORT 23 CABLE PROTECTION RING (ETL)
6 CABLE COVER 24 SCREW ( 4mm*15 )
7 TOP LEFT SIDE PANEL 25 DOWN RIGHT SIDE PANEL
8 OPERATION PANEL 26 SCREW M6*8
9 410-00483 OPERATE FACEPLATE 27 SCREW M4*5
10 DOWN LEFT SIDE PANEL 29 TOP RIGHT SIDE PANEL
11 S.STEEL BOILER COVER 30 TOP LEFT SIDE PANEL SUPPORT
12 410-00484 CUP RACK 30 RIGHT SIDE PANEL (BLACK)
13 410-00490 LOWER DRAIN PAN 31 BACK PANEL(BLACK)
14 410-00489 DRAIN PAN 32 CUP FENCE-RIGHT
15 BASE SURROUND FRONT 33 GROUP COVER
16 VALVE COVER 34 CUP FENCE-REAR
17 SURROUND STEEL 35 UPPER STAINLESS STEEL GRILL
18 DRAIN TUBE 5/8" HIGH TEMP
