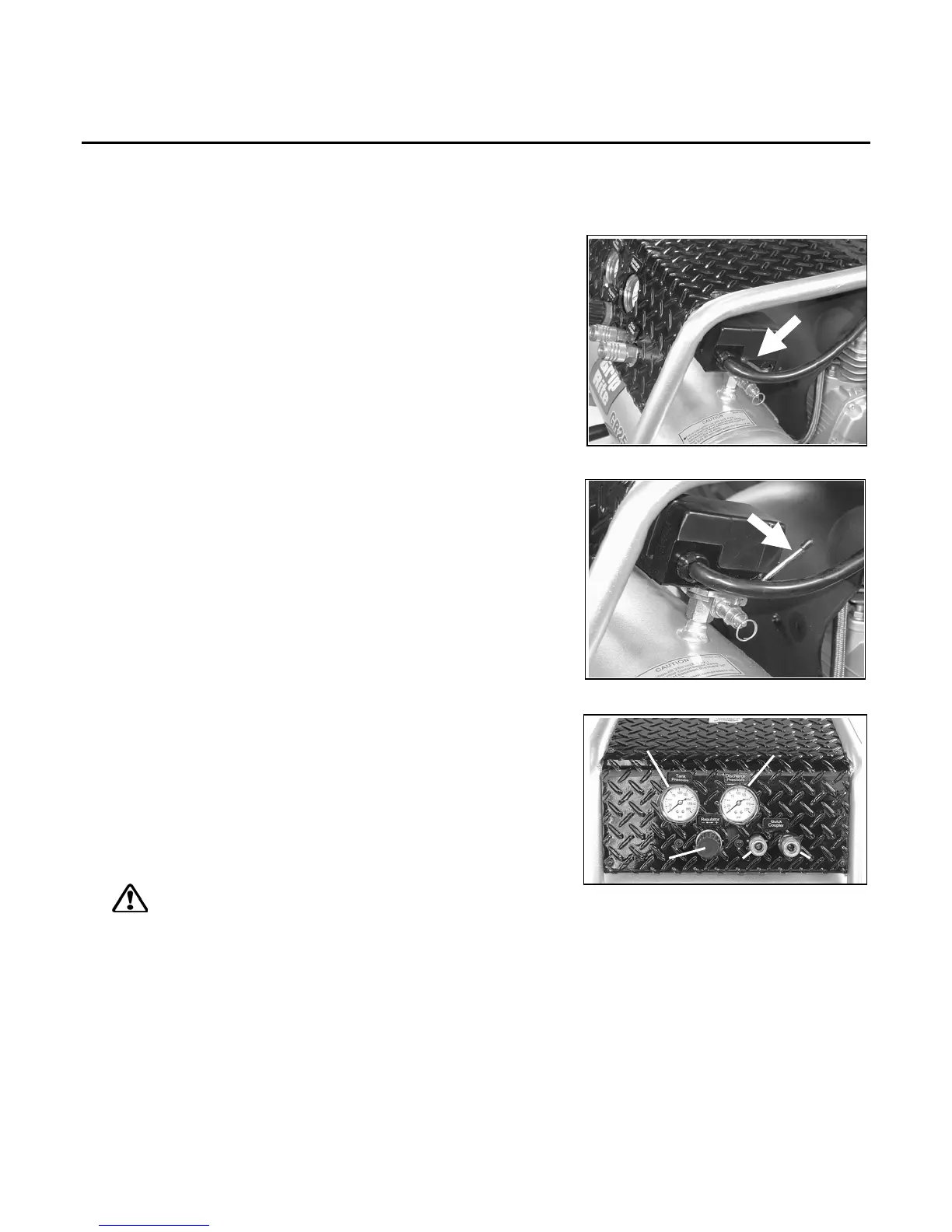

OPERATION
Operating Compressor
1. Move On/Off lever to the "OFF" position.
2. Plug the power cord into the power
receptacle.
3. Move On/Off lever to the "ON" position.
4. Leave compressor in “ON” position while in
use.
5. To stop compressor, move On/Off lever to the
"OFF" position. DO NOT stop compressor by
unplugging power cord.
6. Adjust outlet air pressure to desired setting by
turning pressure regulator knob “C.” Turn
knob clockwise (+) to increase air pressure,
counterclockwise (-) to decrease air pressure.
Outlet air pressure is indicated by gauge (B).
Tank pressure is indicated by gauge (A)
7. Connect air hoses to quick-connect fittings (D)
using a male quick-connect fitting. To
connect air hose, push back outer ring on
compressor fitting, insert male hose connector,
and release ring. To release air hose, push
hose fitting in, push back outer ring on
compressor fitting, and pull male hose
connector out.
WARNING
High pressure air will escape when hose is
disconnected. Keep face away from fittings to
prevent dirt and debris from being blown into eyes.
Always wear safety glasses with side shields to
protect eyes when using compressor.
B
A
D
D
C
