-32-
H8
1
91 36
00

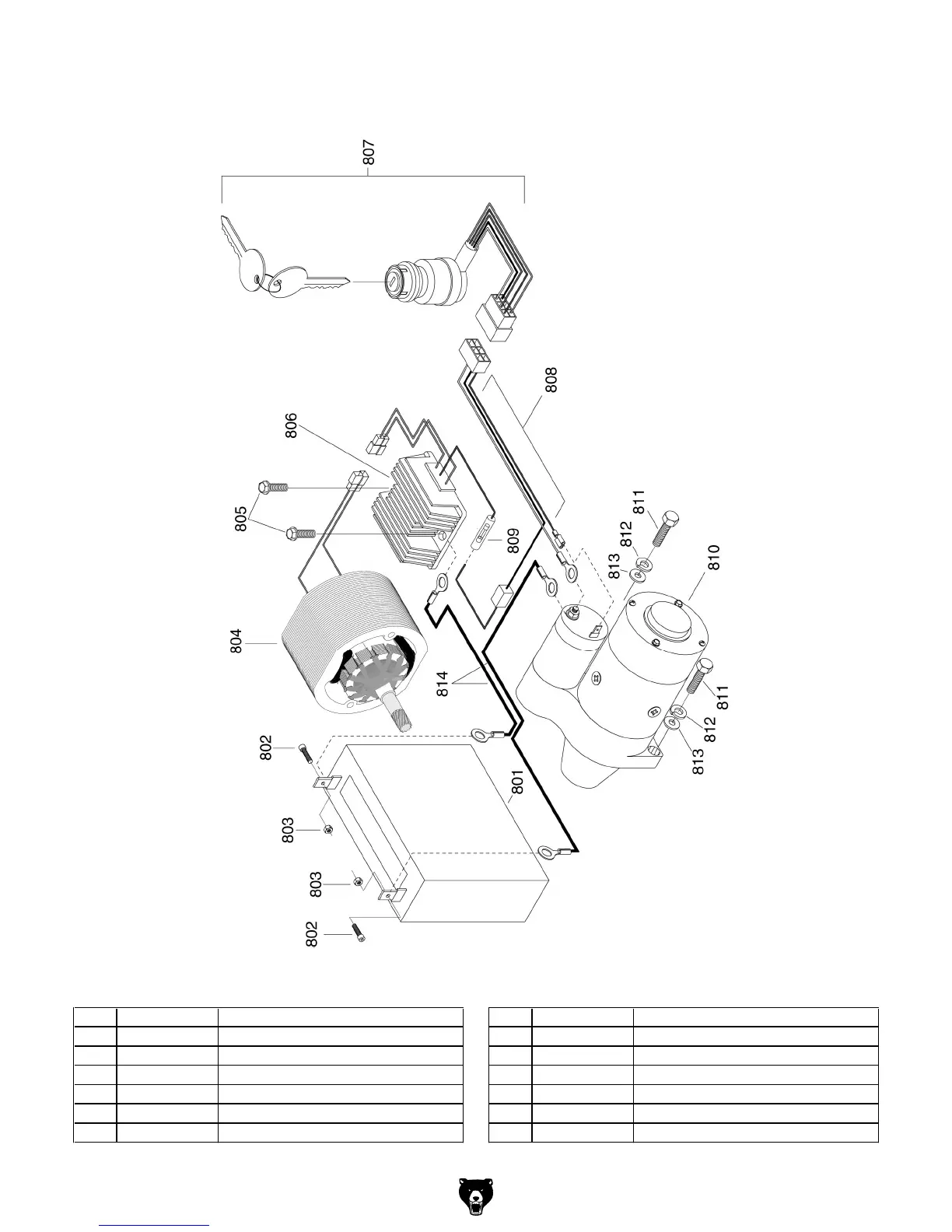

PSI Diesel
Pressure Washer
En
gine
Electr
ic
Star
t
Pa
r
ts
Brea
k
do
wn
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
801
PH81910801
BATTERY
808
PH81910808
WIRING HARNESS
802
PH81910802
CAP SCREW M5-0.8 X 13
809
PH81910809
FUSE
803
PN06M
HEX NUT M5-.8
810
PH81910810
STARTER MOTOR
804
PH81910804
ALTERNATOR ASSEMBLY
811
PB14M
HEX BOLT M10-1.5 X 35
805
PFB01M
FLANGE BOLT M6-1 X 12
812
PLW06M
LOCK WASHER 10MM
806
PH81910806
VOLTAGE REGULATOR
813
PW04M
FLAT WASHER 10MM
807
PH81910807
KEY AND SWITCH ASSEMBLY
814
PH81910814
BATTERY CABLE
9
11
