H8191 3600 PSI Diesel Pressure Washer
-33-

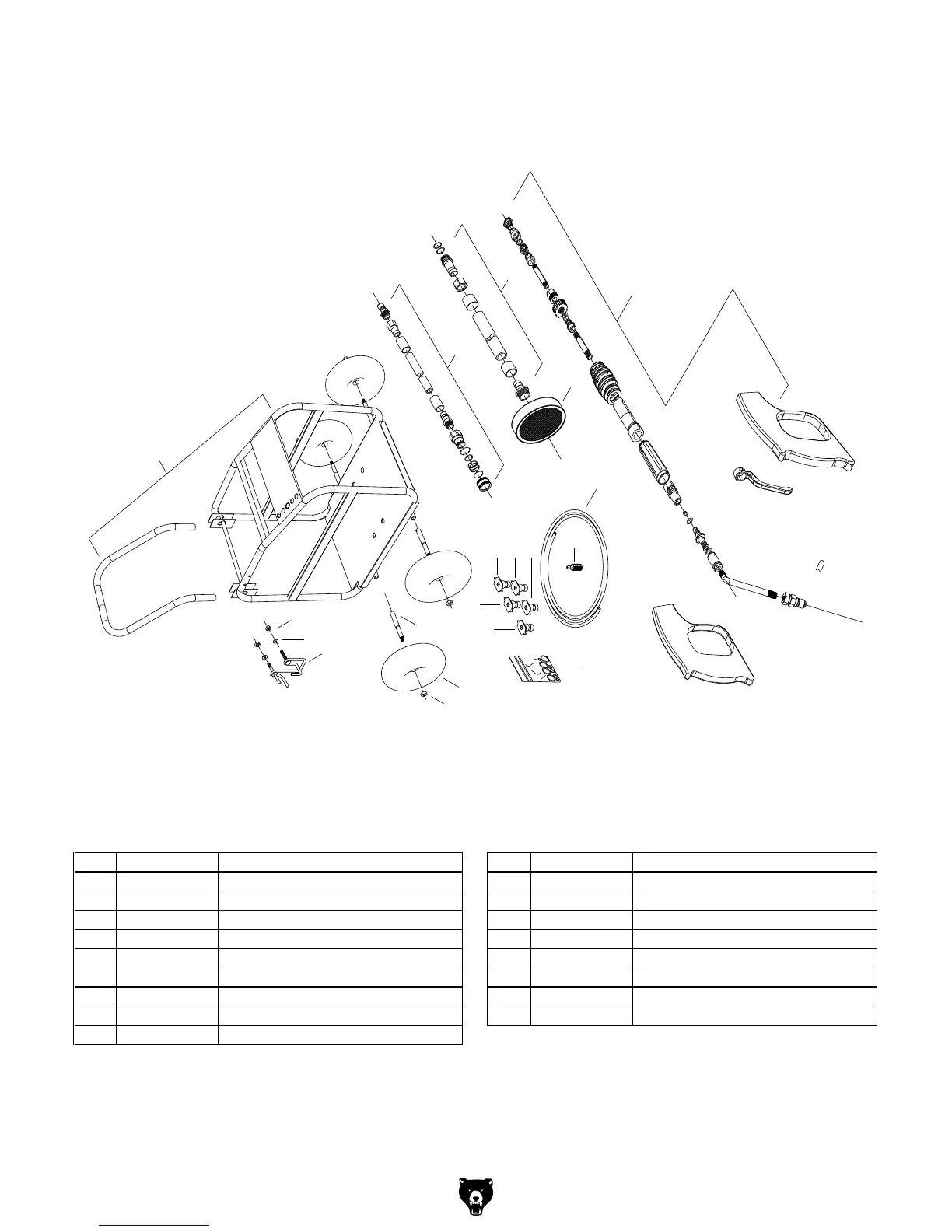

Frame and Hardware Parts Breakdown
REF PART # DESCRIPTION REF PART # DESCRIPTION
901 PH81910901 SPRAY GUN BRACKET 911 PH81910911 15 DEGREE NOZZLE
902 PW01M FLAT WASHER 8MM 912 PH81910912 25 DEGREE NOZZLE
903 PN03M HEX NUT M8-1.25 913 PH81910913 40 DEGREE NOZZLE
904 PH81910904 FRAME ASSEMBLY 914 PH81910914 CHEMICAL NOZZLE
905 PH81910905 HIGH PRESSURE HOSE ASSEMBLY 915 PH81910915 AXLE
906 PH81910906 IN-FEED HOSE ASSEMBLY 916 PH81910916 WHEEL ASSEMBLY
907 PH81910907 IN-FEED FILTER 917 PLN09M LOCK NUT M12-1.75
908 PH81910908 CHEMICAL HOSE 918 PH81910918 O-RING KIT
909 PH81910909 CHEMICAL FILTER 919 PH81910919 SPRAY GUN AND WAND ASSEMBLY
910 PH81910910 0 DEGREE NOZZLE



















