This document outlines the assembly instructions and components for a mobile clamp rack designed by Shiraz Balolia, CEO & Founder of Grizzly Industrial, Inc. The primary function of this clamp rack is to provide a convenient and organized storage solution for various types of clamps, keeping them within arm's reach in a workshop or similar environment. Its mobile design, facilitated by casters, allows for easy repositioning as needed.

Function Description:

The clamp rack is designed to store multiple types of clamps, including F-style, C-clamps, parallel clamps, and tube clamps. Its purpose is to enhance workshop efficiency by ensuring that clamps are readily accessible and neatly organized, reducing clutter and saving time spent searching for the right tool. The mobile nature of the rack, achieved through the integration of casters, allows users to move their entire clamp collection to different work areas, improving workflow and adaptability within the workspace.

Important Technical Specifications:

Materials:

Plywood: The main structural components, including the end panels, side panels, shelf, and base, are constructed from 3/4" thick plywood. Specifically, two sheets of 48" x 96" x 3/4" plywood are required.
- End Panels: Two pieces, each 24 5/8" x 48".
- Side Panels: Two pieces, each 24 3/8" x 48".
- Shelf: One piece, 12 3/8" x 24 3/8".
- Base: Two pieces, each 24 5/8" x 36". The document notes that the base can be substituted with butcher block or other similar material, implying a need for a sturdy, heavy foundation.
Lumber (2x4x96"):
- Panel Base Frame: Requires one 2x4x96" piece, cut at 45° angles to create four segments: two at 12 3/8" and two at 24 3/8".
- Top Braces and Ledgers: Requires one 2x4x96" piece, cut into four 12 3/8" segments.
Steel Angle:
- For Panel Base: Two pieces of 3" x 3" x 3/16" steel angle, each 24 1/2" long. These are critical for securing the side panels to the base frame.
- For Top C-Clamp Holder: Two pieces of 2" x 2" x 1/8" steel angle, each 24 1/2" long. These are used to create the top C-clamp storage.
Casters:
- Steelex D2570 4" Fixed Casters: Maximum of two.
- Steelex D2610 4" Locking Swivel Casters: Maximum of two, or four if preferred for enhanced maneuverability and stability. These are available on grizzly.com.
Fasteners:
- Wood Screws: 1 1/2" and 2" lengths are specified for assembling plywood components and attaching ledgers, shelf, top braces, and end panels.
- Lag Bolts: 16 bolts and 32 washers for attaching casters to the base.
- Hex Bolts: 12 bolts, 24 washers, and 12 locking nuts for securing the steel angles to the panels and frame.
Clamp Rack Accessories: The document specifically mentions the "SHOP FOX D4345 3-PIECE SET" as used in the photo, suggesting this set provides the necessary components for organizing various clamp types. This set is available on grizzly.com.

Usage Features:

Mobility: Equipped with casters (both fixed and locking swivel options), the clamp rack can be easily moved around the workshop, allowing users to bring their clamp collection directly to their work area. This feature significantly improves efficiency and reduces the need to walk back and forth to a stationary clamp storage.
Organized Storage: The design incorporates dedicated spaces for different clamp types, including F-style, C-clamps, parallel clamps, and tube clamps. This organization ensures that the right clamp is always at hand.
Accessibility: By keeping clamps at "arm's length," the rack minimizes downtime during projects, as users can quickly select and retrieve the necessary clamp without extensive searching.
Customizable Base: The option to substitute the plywood base with butcher block or similar material allows for customization based on material availability or desired aesthetic/durability.
Modular Design: The assembly instructions break down the build into manageable steps, suggesting a modular approach to construction.

Maintenance Features:

The document does not explicitly detail maintenance features. However, based on the materials and design, general maintenance would likely involve:

Regular Cleaning: Wiping down the plywood and steel surfaces to remove dust and debris, which can accumulate in a workshop environment.
Fastener Checks: Periodically checking all wood screws, lag bolts, hex bolts, and locking nuts to ensure they remain tight and secure, especially given the weight of a full clamp collection and the stresses of movement.
Caster Inspection: Inspecting the casters for wear and tear, and lubricating them if necessary to ensure smooth operation. Replacing worn casters would maintain the rack's mobility.
Structural Integrity: Monitoring the plywood panels and steel angles for any signs of damage, such as cracks, warping, or corrosion, and addressing them promptly to maintain the rack's stability and longevity.
Safety: The "AWARNING" label emphasizes wearing safety glasses during the entire setup process, indicating a focus on user safety during assembly and potentially during use, especially when handling tools and heavy clamps.

The design emphasizes a robust construction using plywood and steel angles to ensure durability and stability, even when fully loaded with clamps. The inclusion of a detailed cut sheet and list of additional materials simplifies the procurement and preparation process for builders. The anatomical view provides a clear understanding of each component's role in the overall structure.

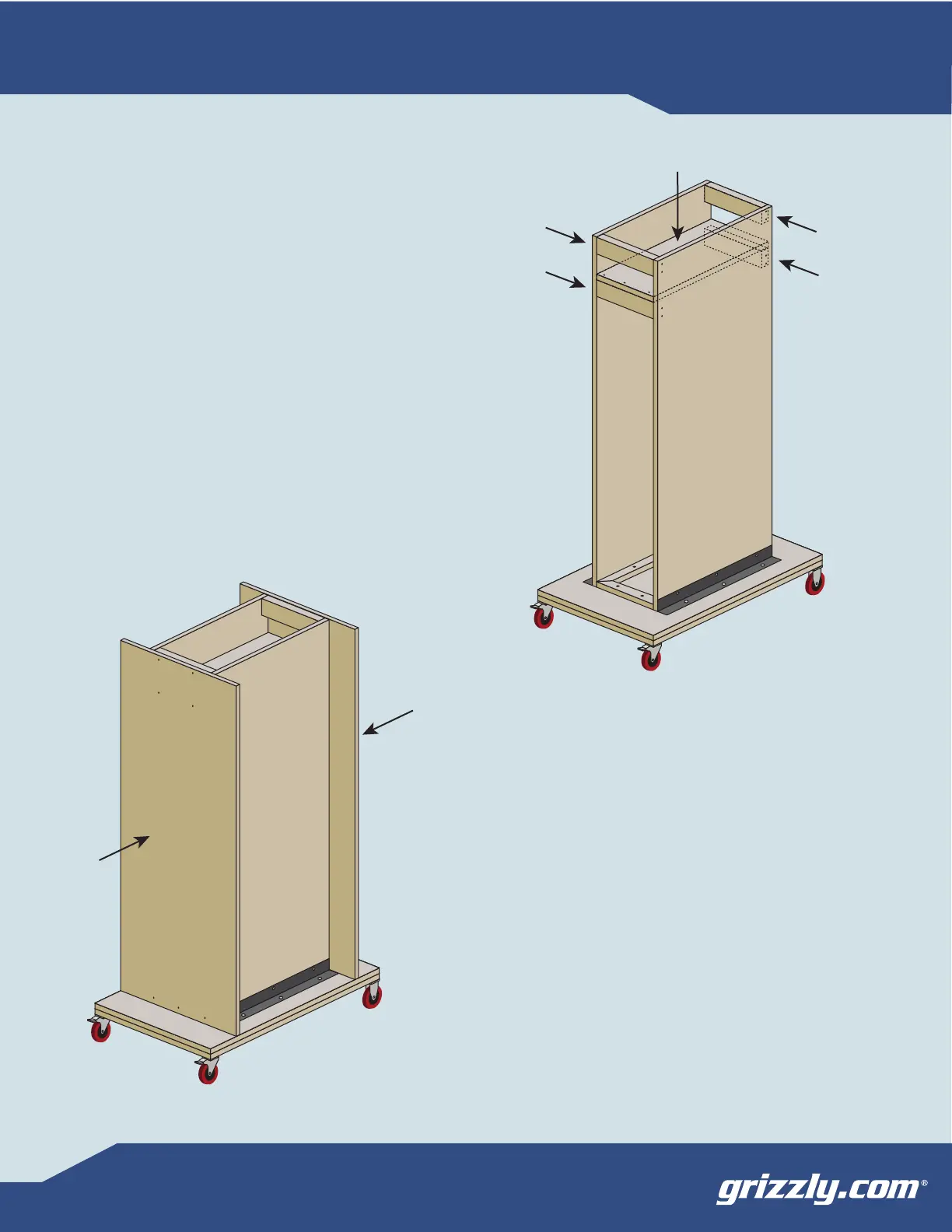

Grizzly CLAMP RACK - Build Step 3: Internal Structure
