Grizzly CLAMP RACK - Build Step 2: Side Panel Attachment

CLAMP RACK
BUILD INSTRUCTIONS PAGE 2 of 4
©Copyright Grizzly Industrial, Inc., 2020

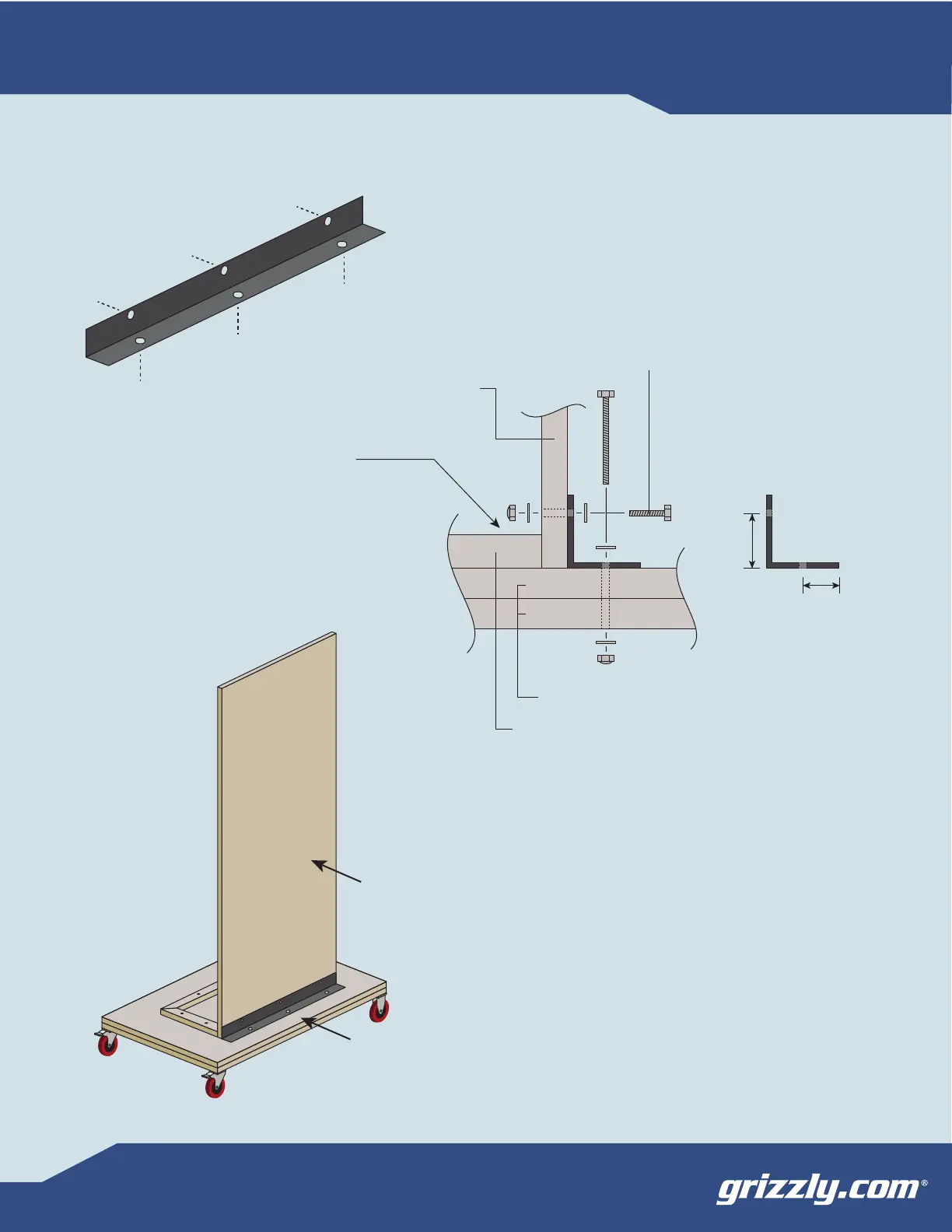

• DRILL HOLES IN 3" X 3" STEEL ANGLES.*
• FIT SIDE PANEL AND STEEL ANGLE TO PANEL
BASE FRAME AND FASTEN WITH BOLTS.
REPEAT ON OTHER SIDE.
PANEL BASE FRAME
SIDE PANEL
1½"
2¼"
SIDE PANEL BOLT
BASE
*NOTE:
DRILL VERTICAL HOLES 2¼"
FROM BOTTOM EDGE TO
PROVIDE CLEARANCE FOR
PANEL BASE FRAME
