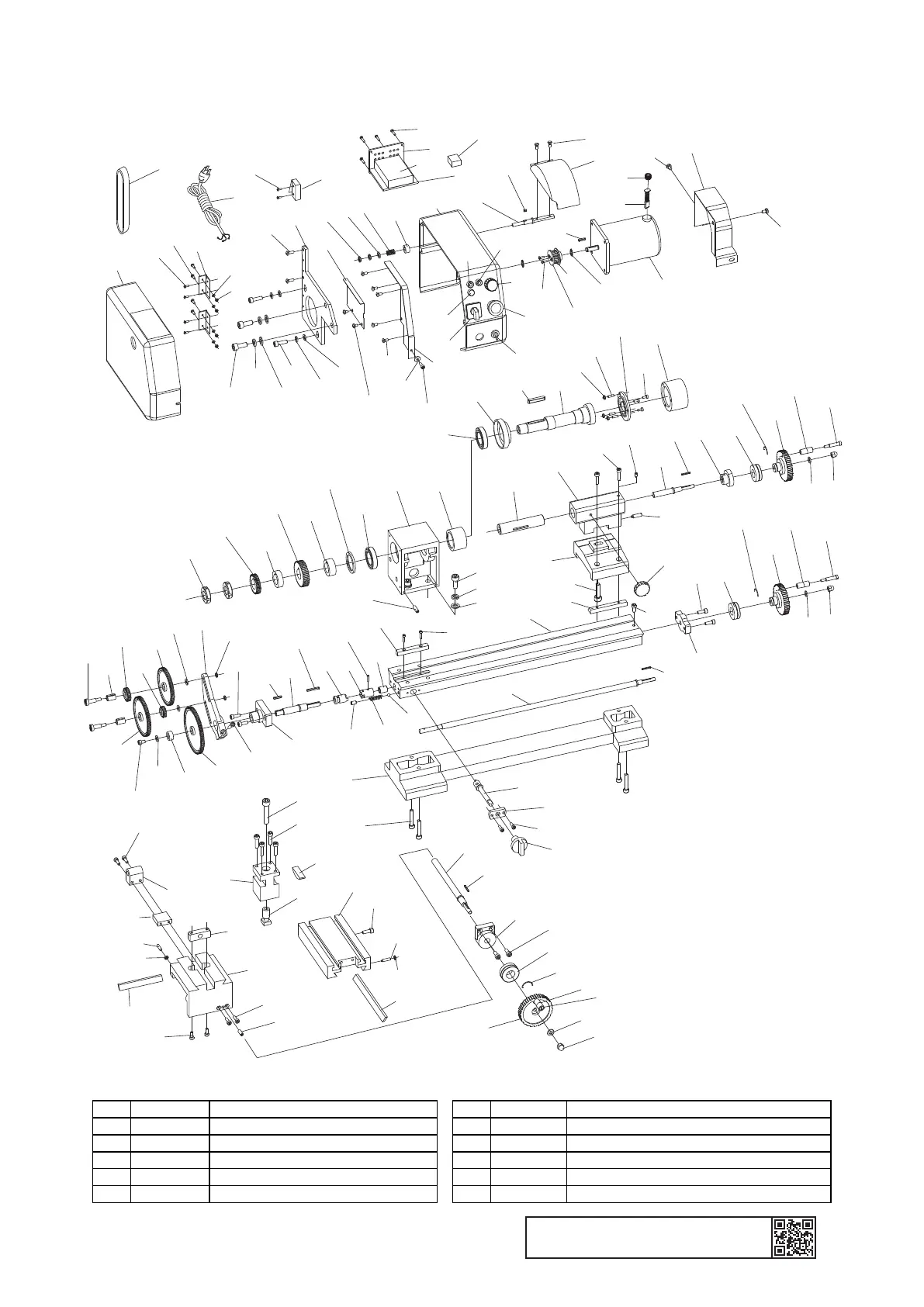

Lathe
BUY PARTS ONLINE AT GRIZZLY.COM !
Scan QR code to visit our Parts Store.
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P0937001 END GEAR COVER 7 P0937007 CANTILEVER BRACKET
2 P0937002 PHLP HD SCR M4-.7 X 8 8 P0937008 HEX NUT M6-1
3 P0937003 PHLP HD SCR M4-.7 X 12 9 P0937009 FLAT WASHER 6MM
4 P0937004 GEAR COVER HINGE 38L X 31B 10 P0937010 COMPRESSION SPRING 1 X 9.2 X 14
5 P0937005 FLAT WASHER 4MM 11 P0937011 SPACER 8 X 15 X 8
6 P0937006 HEX NUT M4-.7 12 P0937012 SPINDLE BOX COVER
REF PART # DESCRIPTION REF PART # DESCRIPTION
13 P0937013 SPINDLE 80 P0937080 FLAT WASHER 5MM
14 P0937014 KEY 3 X 3 X 6 RE 81 P0937081 CHANGE GEAR 72T
15 P0937015 CHUCK GUARD 82 P0937082 CHANGE GEAR 19T
16 P0937016 CAP SCREW M4-.7 X 8 83 P0937083 CHANGE GEAR 76T
17 P0937017 CAP SCREW M5-.8 X 8 84 P0937084 CHANGE GEAR 24T
18 P0937018 REAR SPLASH GUARD 85 P0937085 GEAR SLEEVE
19 P0937019 MOTOR 1/4HP 110V 1-PH 86 P0937086 GEAR SHAFT
20 P0937020 KEY 3 X 3 X 16 RE 87 P0937087 CAP SCREW M5-.8 X 8
21 P0937021 EXT RETAI NING RI NG 8MM 88 P0937088 SPACER 10 X 17 X 8
22 P0937022 LATHE MOTOR PULLEY 89 P0937089 CHANGE GEAR 90T
23 P0937023 SUPPORT PLATE 90 P0937090 CAP SCREW M5-.8 X 25
24 P0937024 CAP SCREW M4-.7 X 10 91 P0937091 BED BASE
26 P0937026 LOCK WASHER 6MM 92 P0937092 CAP SCREW M6-1 X 35
27 P0937027 CAP SCREW M6-1 X 20 93 P0937093 BED LOCK SHAFT
28 P0937028 FLAT WASHER 8MM 94 P0937094 BED LOCK SHAFT BRACKET
29 P0937029 LOCK WASHER 8MM 96 P0937096 CLUTCH KNOB
30 P0937030 CAP SCREW M8-1.25 X 20 97 P0937097 DAM-BOARD
31 P0937031 SPINDLE NUT M18-1.5 98 P0937098 CROSS-SLIDE LEADSCREW BRACKET
32 P0937032 SPINDLE GEAR 36T 99 P0937099 CROSS-SLIDE LEADSCREW
33 P0937033 SPACER 20 X 32 X 10 100 P0937100 SADDLE
34 P0937034 SPINDLE PULLEY 101 P0937101 CROSS-SLIDE NUT
35 P0937035 SPACER 20 X 32 X 12.5 102 P0937102 CROSS-SLIDE LEADSCREW NUT
36 P0937036 OIL SEAL (REAR) 103 P0937103 CROSS-SLIDE
37 P0937037 TAPERED BEARING 30205 104 P0937104 SET SCREW M4-.7 X 16
38 P0937038 SPINDLE BOX 105 P0937105 HEX NUT M4-.7
39 P0937039 OIL SEAL (FRONT) 106 P0937106 CROSS-SLIDE WEDGE
40 P0937040 KEY 6 X 6 X 36 RE 107 P0937107 GIB
41 P0937041 SPINDLE 108 P0937108 CAP SCREW M8-1.25 X 40
42 P0937042 BED KEY 109 P0937109 TOOL REST
43 P0937043 HEX NUT M6-1 110 P0937110 TOOL REST SHAFT
44 P0937044 SET SCREW M6-1 X 25 111 P0937111 CONNECT BLOCK
45 P0937045 CHUCK FLANGE 112 P0937112 POTENTIOMETER WH24-1 4.7K
46 P0937046 CAP SCREW M4-.7 X 12 113 P0937113 EMERGENCY STOP SWITCH HONGBO LAS1-A
47 P0937047 3-JAW CHUCK 80MM 114 P0937114 FOR/REV SWI TCH ZH-D
48 P0937048 SHOULDER SCREW M4-1 X 10, 4 X 31 115 P0937115 POWER I NDICATOR ZD7
49 P0937049 HOLLOW HANDLE 6 X 10, 25 116 P0937116 FUSE BOX BF021
50 P0937050 HANDWHEEL 58D X 6B-K, M4-1 117 P0937117 CI RCUIT BOARD XMT XMT1115
51 P0937051 ACORN NUT M6-1 118 P0937118 LOCK CONNECT
53 P0937053 SPACER 16 X 32 X 12 119 P0937119 CI RCUIT BOARD BOX
54 P0937054 TAILSTOCK SCREW BASE 120 P0937120 TAP SCREW M2.9 X 9.5
55 P0937055 KEY 2 X 2 X 10 RE 121 P0937121 MI CRO SWITCH OM SS-5GL
56 P0937056 TAILSTOCK SCREW 122 P0937122 TAP SCREW M2.2 X 9.5
57 P0937057 SET SCREW M5-.8 X 8 123 P0937123 POWER CORD 18G 3W 72" 5-15P
58 P0937058 CAP SCREW M5-.8 X 20 130 P0937130 SET SCREW M5-.8 X 20
60 P0937060 WEDGE 131 P0937131 TIMING BELT 1.5 X 83 X 10
61 P0937061 KNOB BOLT M6-1 X 9, 14-LOBE, D27.5 143 P0937143 FAULT INDI CATOR ZD7
62 P0937062 TAILSTOCK QUILL 148 P0937148 PHLP HD SCR M4-.7 X 6
63 P0937063 DIAL 153 P0937153 TOOL REST BLOCK
64 P0937064 CAP SCREW M5-.8 X 14 193 P0937193 POWER SUPPLY SWITCH HY29D
65 P0937065 LEADSCREW BRACKET 194 P0937194 SPRING 1 X 12
66 P0937066 BED 195 P0937195 DI AL
67 P0937067 LEADSCREW 218 P0937218 FLAT WASHER 4MM
68 P0937068 STEEL BALL 5MM 219 P0937219 PULLEY WASHER
69 P0937069 COMPRESSION SPRING 0.8 X 4.8 X 10 220 P0937220 TAILSTOCK CASTING
70 P0937070 SET SCREW M6-1 X 10 221 P0937221 TAILSTOCK BASE PLATE
71 P0937071 ROLL PIN 3 X 14 223 P0937223 SET SCREW M6-1 X 20
72 P0937072 CLUTCH BRACKET 224 P0937224 BEARING SLEEVE
73 P0937073 CLUTCH 250 P0937250 CAP SCREW M5-1 X 14
74 P0937074 KEY 3 X 3 X 22 RE 251 P0937251 FI LTER
75 P0937075 GEAR SHAFT 252 P0937252 SPACER 28 X 44 X 35
76 P0937076 KEY 3 X 3 X 14 RE 253 P0937253 CAP SCREW M8-1.25 X 25
77 P0937077 GEAR SHAFT BRACKET 254 P0937254 TAP SCREW M3 X 8
78 P0937078 HEX NUT M5-. 8 255 P0937255 LATHE CARBON BRUSH (2-PC SET)
79 P0937079 SUPPORT PLATE 256 P0937256 LATHE CARBON BRUSH COVER
