Grizzly H5502 - Scroll Tool Parts List

H5502 Benchtop Bending System
-17-
101 PH5502101 MOUNTING BRACKET
102 PN09M HEX NUT M12-1.75
103 PH5502103 ARBOR
104 PH5502104 SMALL DIE
106 PH5502106 HUB DIE ASSY.
107 PH5502107 LONG OFFSET SHAFT
108 PH5502108 SHORT OFFSET SHAFT
109 PH5502109 HANDLE GRIP
110 PH5502110 HANDLE BAR
111 PH5502111 CLAMP HANDLE
112 PH5502112 DIE PIN
113 PH5502113 LARGE DIE
114 PH5502114 SPECIAL BOLT M15 X 45
115-1 PH5502115-1 SPACER (SMALL)
REF PART # DESCRIPTION
115-2 PH5502115-2 SPACER (LARGE)
116 PH5502116 GUIDE SLEEVE
117 PH5502117 GUIDE PLATE
118 PS14M PHLP HD SCR M6-1 X 12
119 PH5502119 HOOK
120 PH5502120 SQUARE HANDLE BAR
121 PH5502121 SPRING
122 PS26M PHLP HD SCR M6-1 X 20
123 PH5502123 SQUARE HANDLE GRIP
124 PN01M HEX NUT M6-1
125 PH5502125 SET COLLAR
126 PSS03M SET SCREW M6-1 X 8
127 PH5502127 SPRING GUIDE BOLT
REF PART # DESCRIPTION

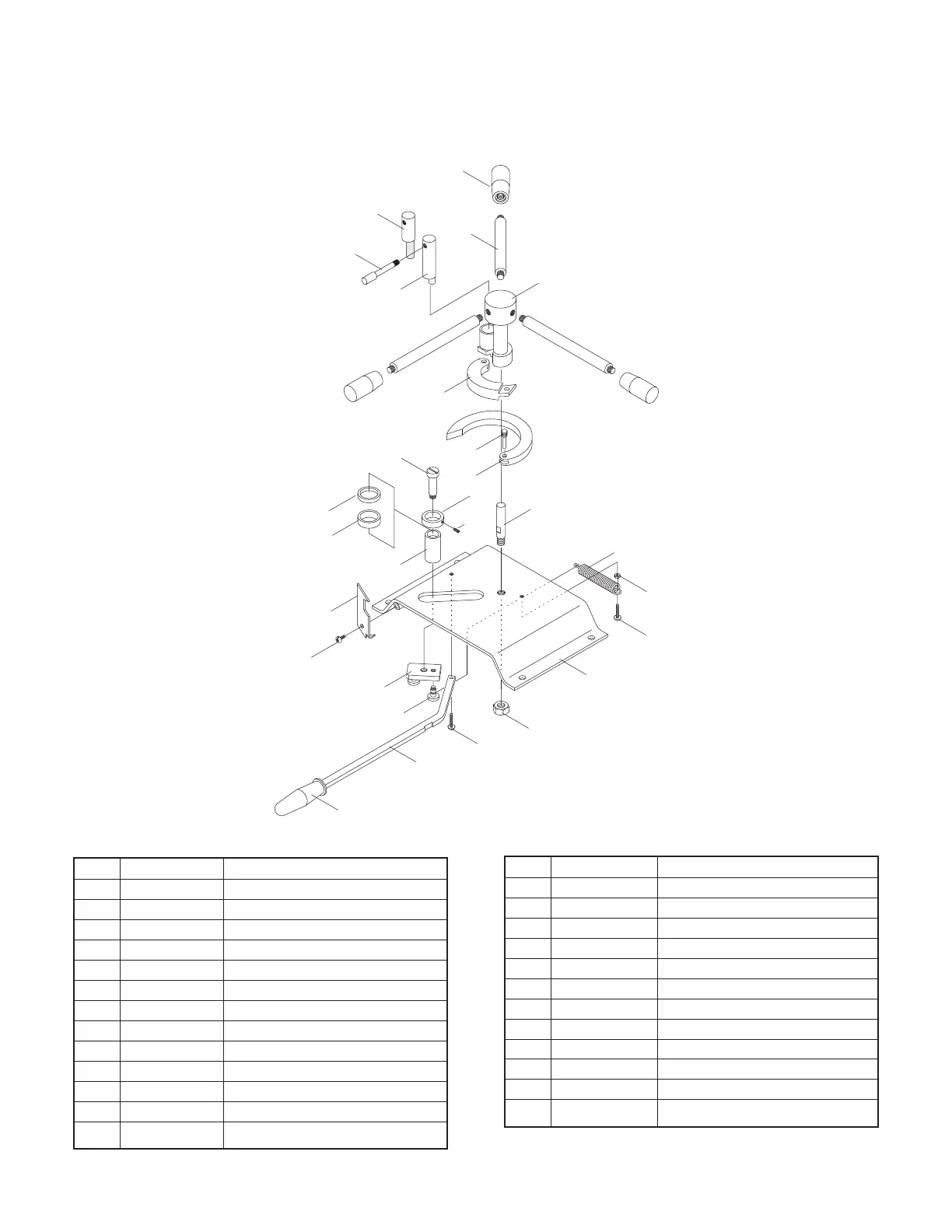

Model H5502 Parts Breakdown
Scroll Tool
109
110
107
111
108
106
104
112
114
113
115-1
115-2
116
125
126
103
121
124
122
101
102
122
120
123
127
117
118
119
