-18- H5502 Benchtop Bending System

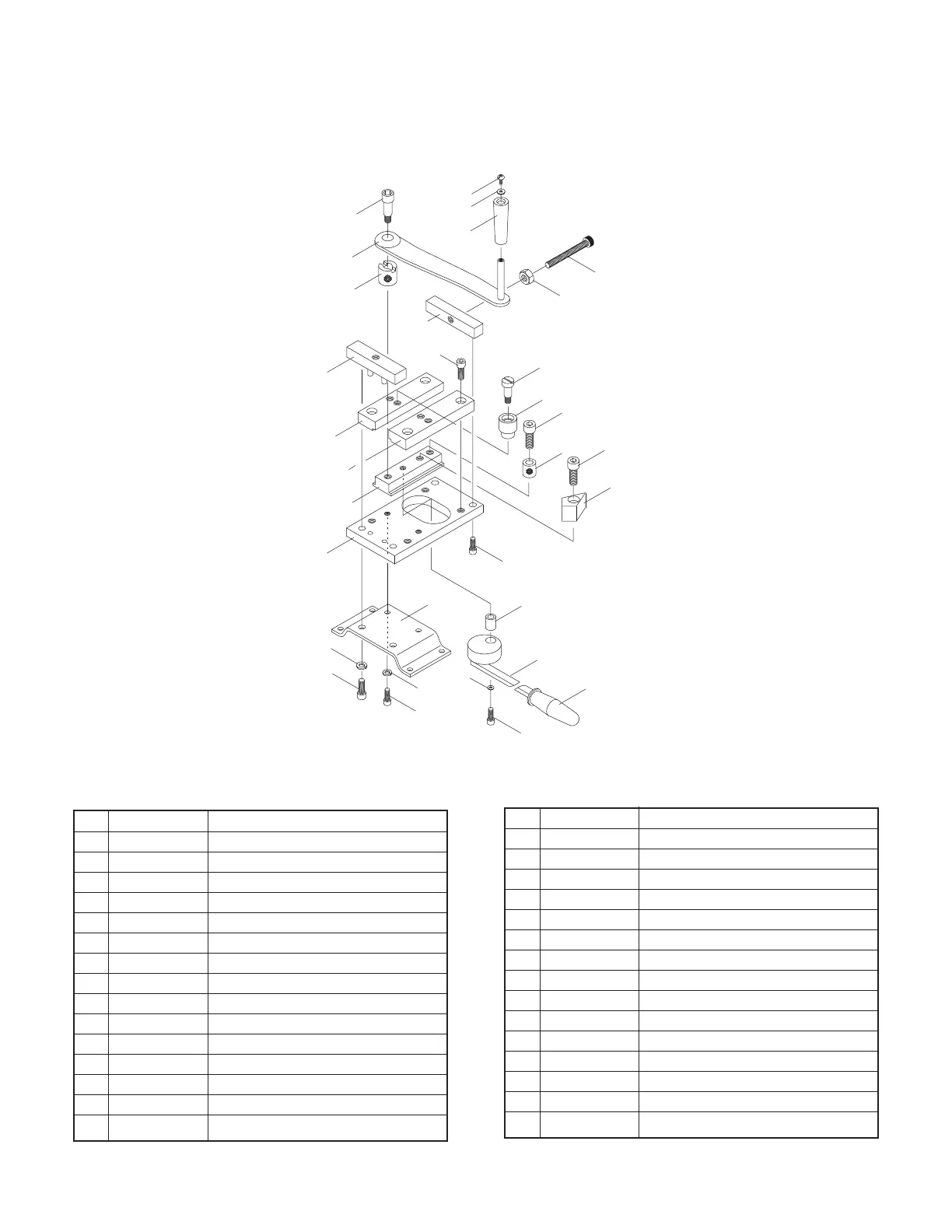

Model H5502 Parts Breakdown
Bending Tool
REF PART # DESCRIPTION
218 PH5502218 RIGHT BLOCK
219 PH5502219 ADJUSTMENT SCREW
220 PH5502220` BASE
221 PH5502221 HANDLE GRIP
222 PH5502222 BUSHING
223 PH5502223 OFFSET HANDLE
225 PW04M FLAT WASHER 10MM
226 PSB59M CAP SCREW M10-1.5 X 40
227 PLW06M LOCK WASHER 10MM
228 PSB84M CAP SCREW M10-1.5 X 35
229 PLW04M LOCK WASHER 8MM
230 PSB14M CAP SCREW M8-1.25 X 20
231 PSB100M CAP SCREW M8-1.25 X 15
232 PS37M PHLP HD SCREW M6-1 X 6
233 PW03M FLAT WASHER 6MM
234 PH5502234 CRANK HANDLE
REF PART # DESCRIPTION
201 PH5502201 MOUNTING BRACKET
202 PH5502202 SLIDE BLOCK
203 PH5502203 FRONT BLOCK
204 PSB88M CAP SCREW M10-1.5 X 25
205 PH5502205 PRESS WHEEL
206 PSB59M CAP SCREW M10-1.5 X 40
207 PH5502207 SPECIAL BOLT M15 X 35
208 PSB77M CAP SCREW M12-1.75 X 30
209 PH5502209 SPECIAL BOLT M15 X 50
210 PH5502210 CRANK
211 PH5502211 BENDING BLOCK
212 PH5502212 FEED ROLLER
214 PH5502214 GUIDE ROLLER
215 PH5502215 LEFT BLOCK
216 PH5502216 REAR BLOCK
217 PN02M HEX NUT M10-1.5
To Next Page
