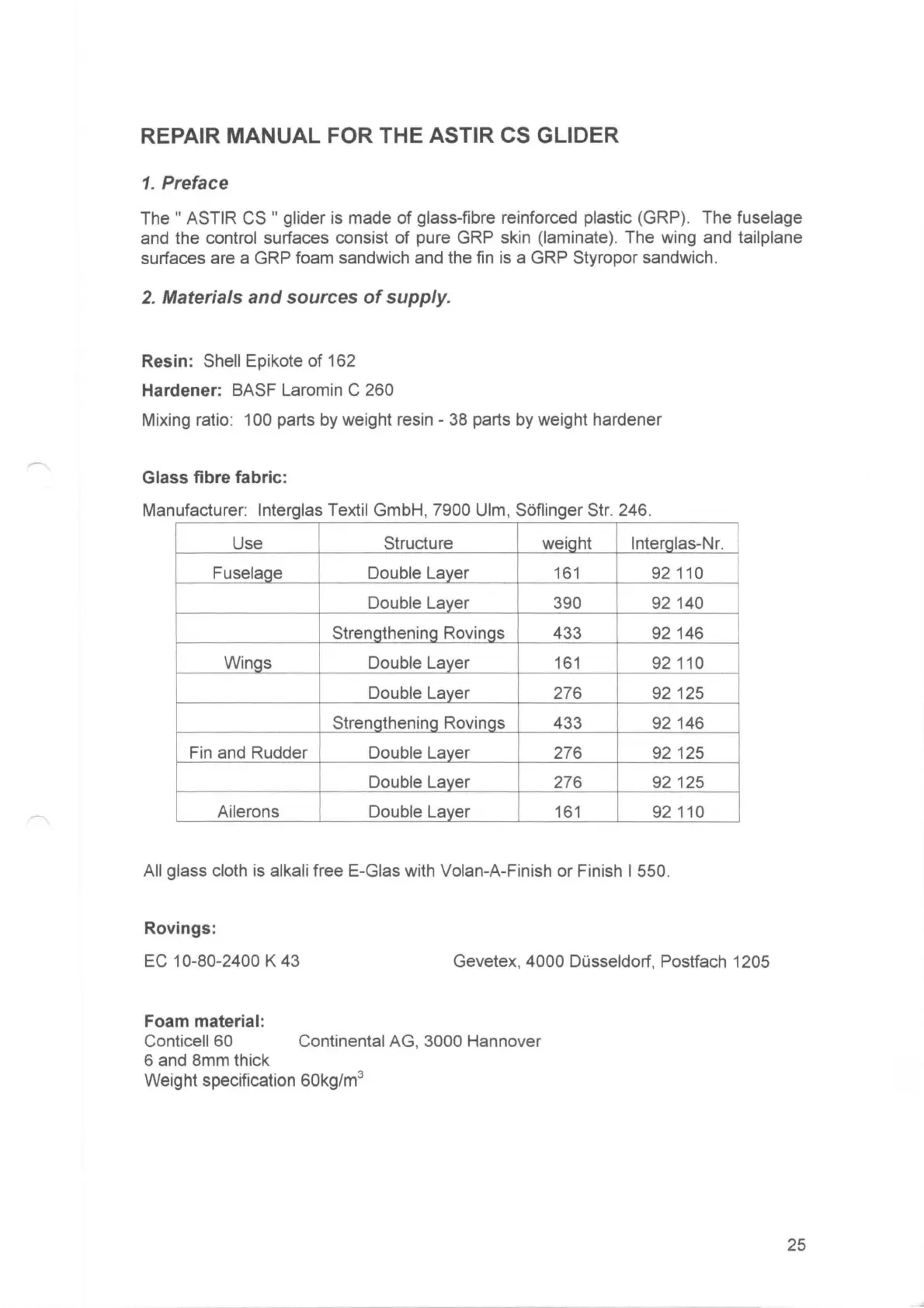

REPAIR MANUAL FOR THE ASTIR CS GLIDER
1.
Preface
The " ASTIR
CS
" glider
is
made of glass-fibre reinforced plastic (GRP). The fuselage
and the control surfaces consist of pure GRP skin (laminate). The wing and tailplane
surfaces are a GRP foam sandwich and the
fin
is a GRP Styropor sandwich.
2.
Materials
and
sources
of
supply.
Resin: Shell Epikote of 162
Hardener: BASF Laromin C 260
Mixing ratio: 100 parts
by
weight resin -
38
parts
by
weight hardener
Glass fibre fabric:
Manufacturer: lnterglas Textil GmbH, 7900 Ulm, Soflinger Str. 246.
Use
Structure weight lnterglas-Nr.
Fuselage Double
Layer
161
92 110
Double
Layer
390 92 140
Strengthening Rovings
433
92146
Wings Double Layer
161
92 110
Double
Layer
276 92 125
Strengthening Rovings
433
92146
Fin
and Rudder Double Layer
276
92
125
Double Layer
276
92 125
Ailerons
Double
Layer
161
92 110
All glass cloth
is alkali free E-Glas with Volan-A-Finish or Finish I 550.
Rovings:
EC
10-80-2400 K 43
Gevetex,
4000 Dusseldorf, Postfach 1205
Foam material:
Conticell 60 Continental AG, 3000 Hannover
6 and 8mm thick
Weight specification
60kg/m
3
25
