11.
Installation
of
additional
equipment
The mounting plate for an oxygen cylinder
is
built
in
to the right fuselage side
in
the
current series
of
aircraft. Clevis mounting and clip fittings can be obtained from the
manufacturer.
Other equipment can be fastened as follows:

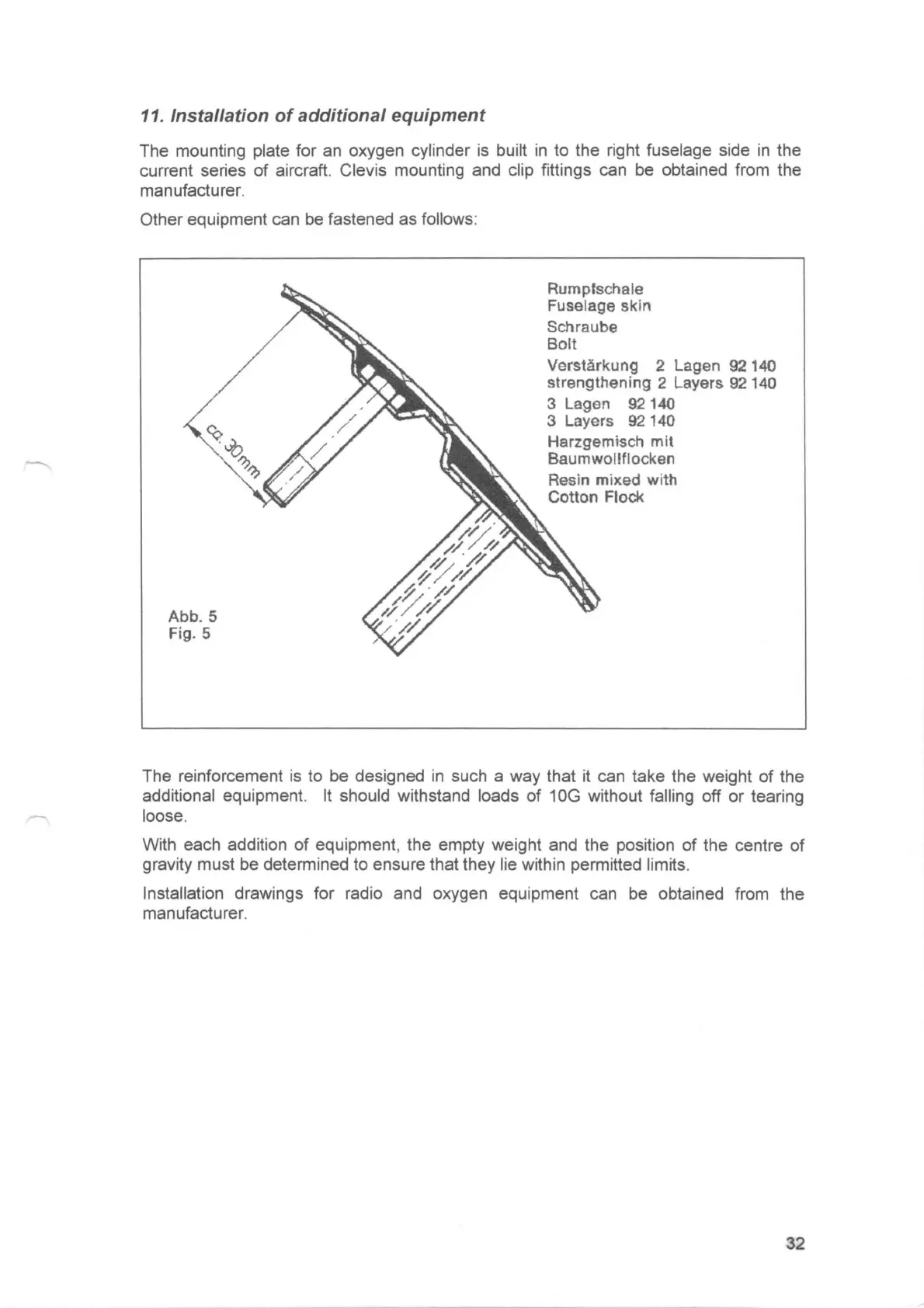

Abb. 5
Fig. 5
Rumpfschale
Fuselage skin
Schraube
Bolt
Verstarkung 2 Lagen
92
140
strengthening 2 Layers
92
140
3 Lagan
92
140
3 Layers
92
140
Harzgemisch mit
Baumwollflocken
Resin
mixed
with
Cotton Flock
The reinforcement
is
to
be designed
in
such a way that it can take the weight of the
additional equipment.
It
should withstand loads
of
1
OG
without falling off or tearing
loose.
With each addition
of
equipment, the empty weight and the position
of
the centre of
gravity must be determined to ensure that they
lie within permitted limits.
Installation
drawings for radio and oxygen equipment can be obtained from the
manufacturer.
32
