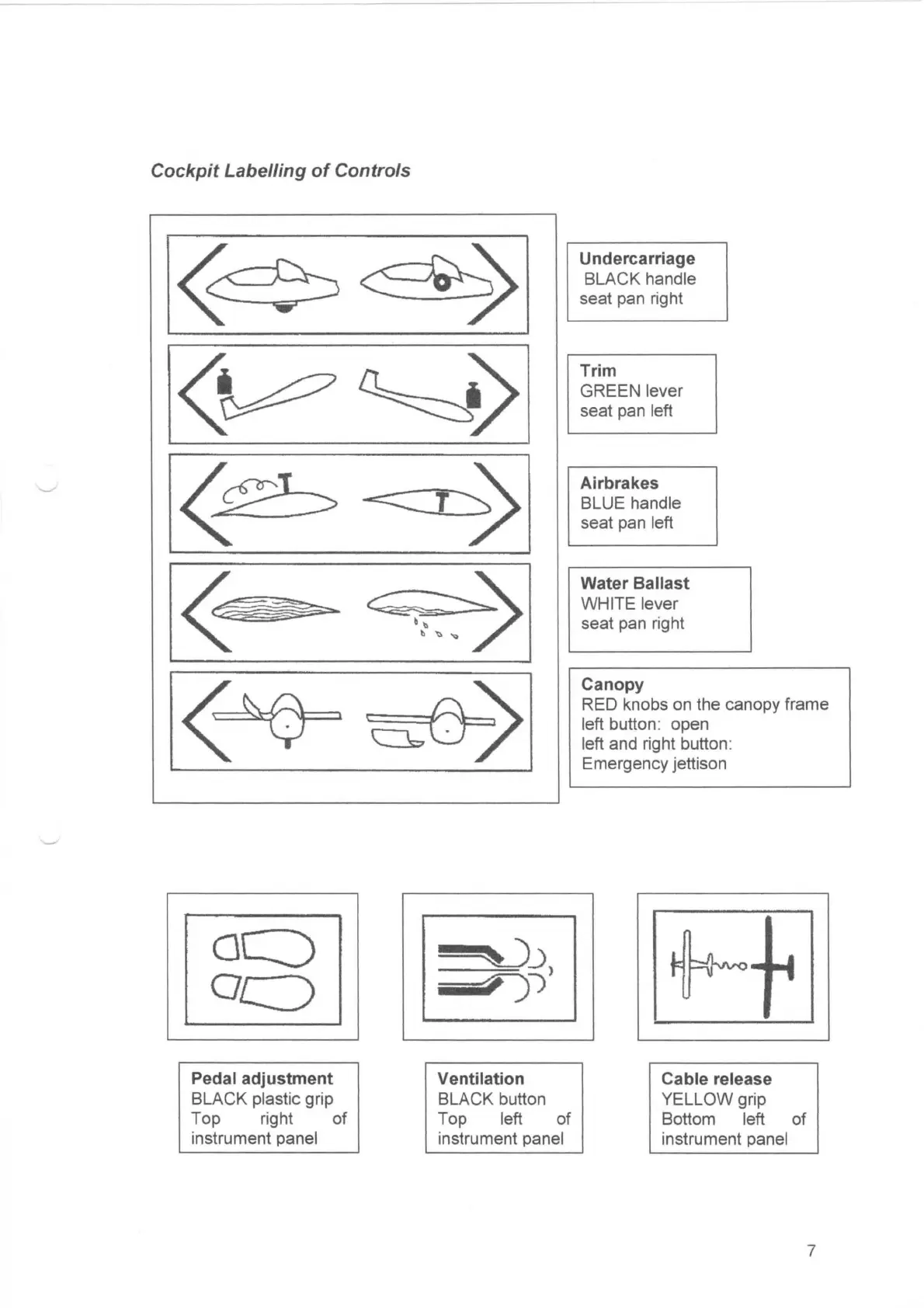

Cockpit Labelling
of
Controls
<~~
~~>
<~~>
/~~
~
'
~~
~
/
<~~>
Pedal adjustment
BLACK plastic grip
Top right of
instrument
panel
Ventilation
BLACK button
Top
left of
instrument
panel
Undercarriage
BLACK handle
seat pan right
Trim
GREEN lever
seat pan left
Airbrakes
BLUE handle
seat pan left
Water Ballast
WHITE lever
seat pan right
Canopy
RED knobs
on
the canopy frame
left button: open
left and right button:
Emergency jettison
Cable release
YELLOW grip
Bottom
left of
instrument
panel
