Maximum Hot Water Limit Setting
On applications requiring limiting the valve
opening from full hot position, the adjustable
hot water limit stop must be reset as de-
scribed below.

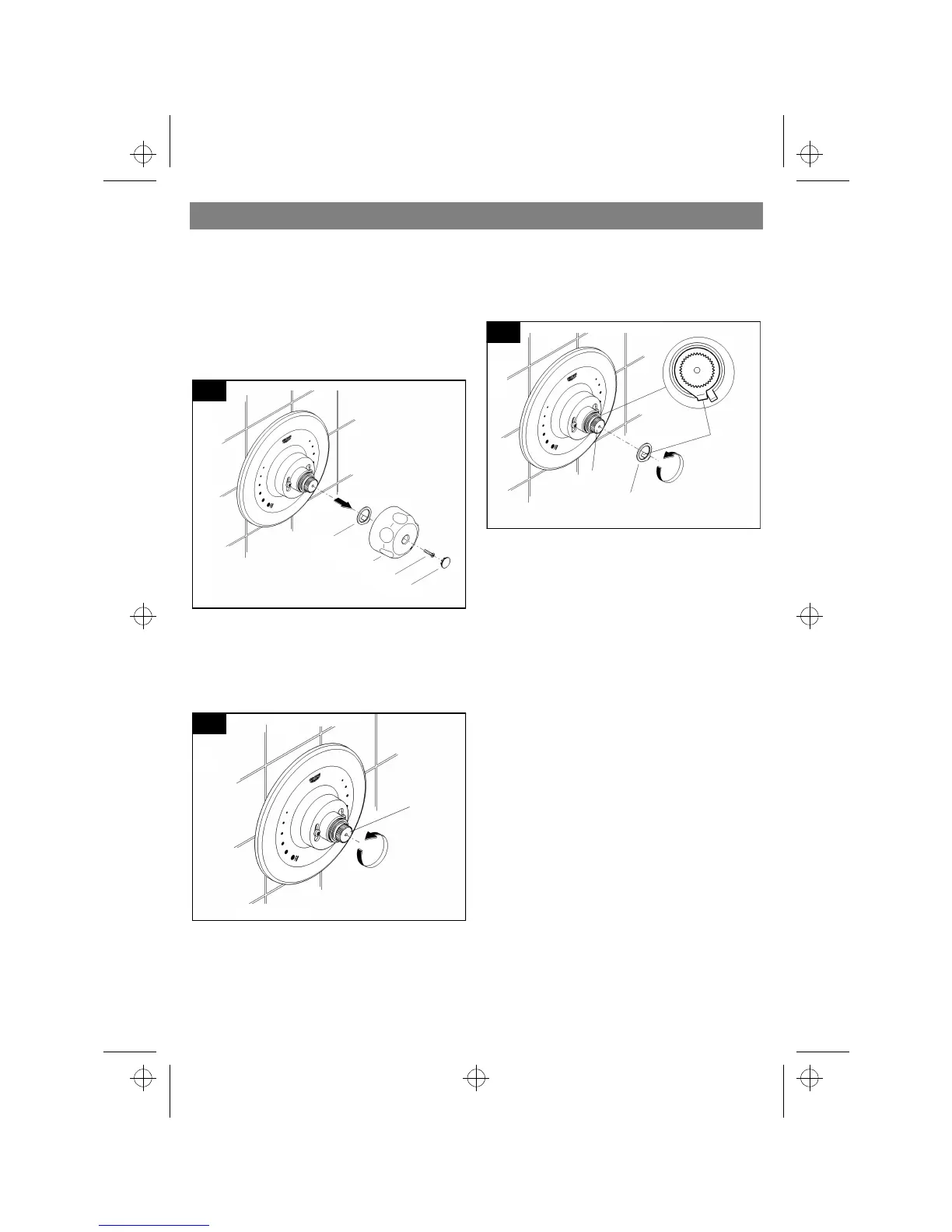

1.Detach handle cap (L2) loosen screw (L1)
and remove handle (L), see Fig. [20].
2.Remove the adjustable hot water limit
stop (K).
3.Turn the intermediate ring (M) counter-
clockwise until the outlet water reaches
the desired temperature, see Fig. [21].
4.Place the hot water limit stop (K) over the
splines on the intermediate handle with the
limit stop resting against the wall plate stop
post, see Fig. [22].
5.Close the valve by turning the intermediate
handle (M) clockwise.
6.Reinstall handle as described in Fig. [20]
in reversed direction.
20
L
L1
L2
K
21
M
22
K
M
