Grohe Grohsafe User Manual

7
Installation
Rough Installation
The pressure balance shower mixing valve
can be installed in two different ways. The
mixing outlet can be at the bottom for use
with a handshower or at the top for use with
a headshower.
The standard position is outlet up, if you
want to have the outlet down please refer to
chapter "Bottom Outlet Installation" on
page 11.
The concealed pressure balancing valve is
supplied with a bracket.
• With bracket mounted from the front the
valve can be used for installation into solid
and dry-lined walls.
• With bracket mounted from behind the wall
the valve can be used for installation into
the front face of a stud partition wall
structure or the rear face of a shower
cubicle or laminated panel.
Solid and dry-lined walls
Determine the route for the incoming hot and
cold water supply and for the outlet pipe-
work in accordance with the pressure
balance valve pressure balancing valve.

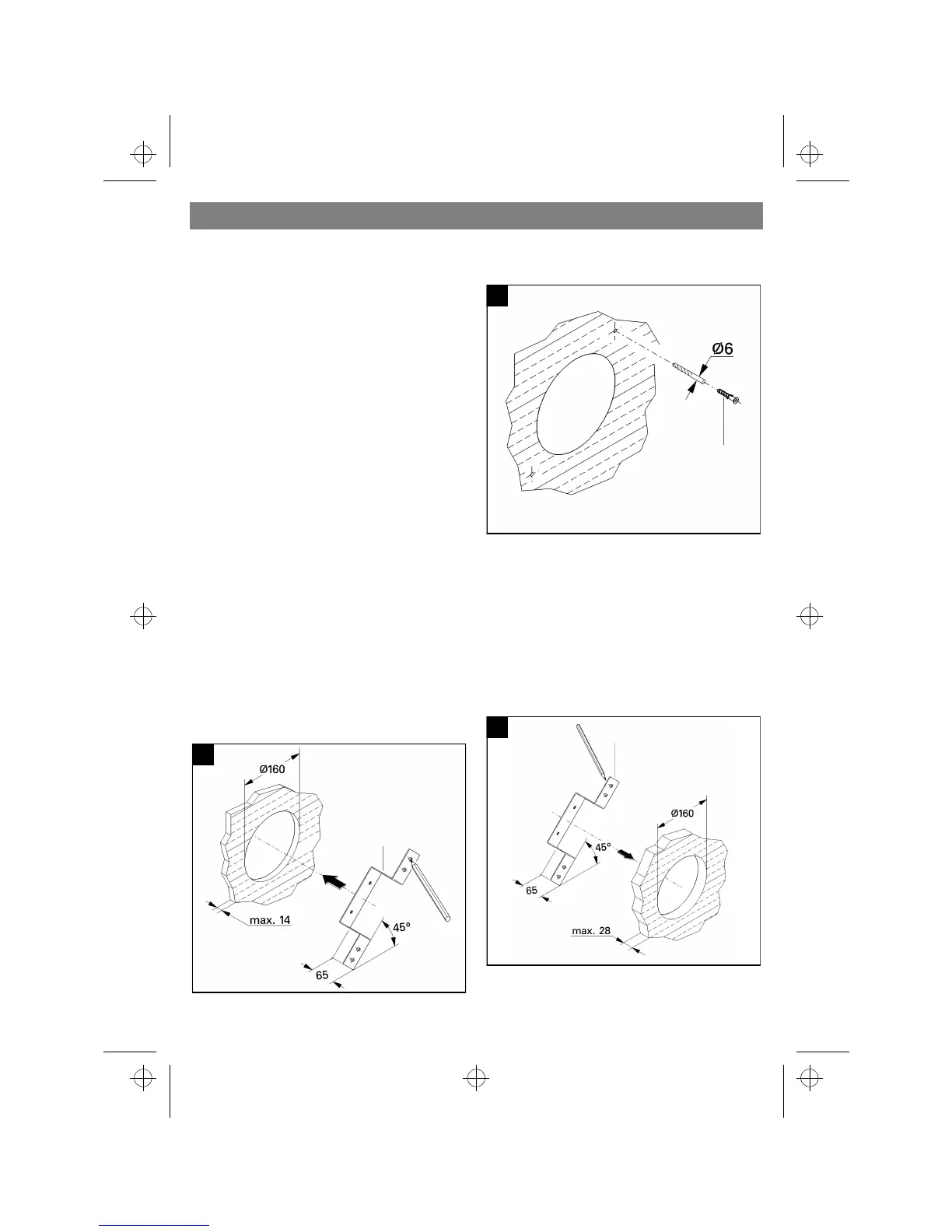

1.Mark a 160mm diameter hole for the valve
and mark the fixing hole positions for the
bracket (A), see Fig. [1].
2.Drill 6mm diameter holes and insert the
supplied wallplugs (A1), see Fig. [2].
3.Remove the plaster and brick or block.
Laminated panel walls
Determine the route for the incoming hot and
cold water supply and for the outlet pipe-
work in accordance with the pressure
balance valve.
1.Mark a 160mm diameter hole for the valve
and mark the fixing hole positions for the
bracket (A), see Fig. [3].
1
A
2
A1
3
A
950632.book : i95063gb.fm Seite 7 Mittwoch, Oktober 4, 2000 7:42 AM
