10
Installation

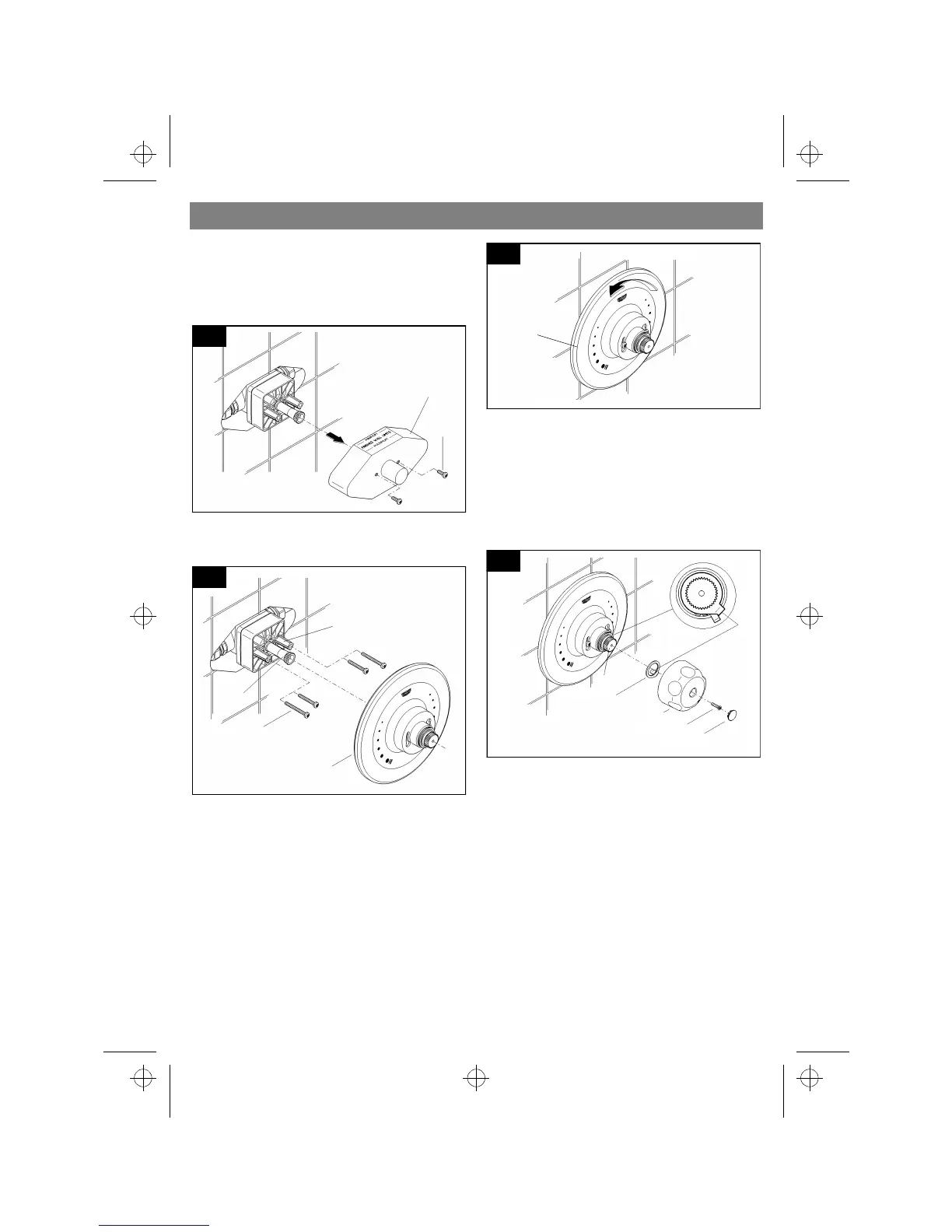

Wall Plate Installation
1.Remove the two screws (B1) from the
fitting template (B), then remove the
template, see Fig. [10].
2.Turn the driver (G) clockwise to the OFF
position, see Fig. [11].
3.Install two of the four screws (H1) into the
valve cover (J). These screws allow for
variation in wall thickness when mounting
the wall plate.
4.Line up the screw heads with the pre-cut
notches in the center of the wall plate (H).
5.Slide the wall plate (H) over the screw
heads and rotate the wall plate counter-
clockwise until it is vertically aligned, see
Fig. [12].
Additionally seal the top edge of the wall
plate with silicone if it is fitted against a
particularly rough surface (deep tile joints,
highly textured tile).
6.Tighten the wall plate screws.
7.Push adjustable hot water limit stop (K)
to the intermediate ring (M) as described in
Fig. [13].
Please refer to chapter "Maximum Hot
Water Limit Setting" on page 13 for
limiting maximum outlet temperature.
8.Push the handle (L) on the intermediate
handle (M) so that the "OFF" position on
the wall plate is in alignment with the arrow
on the handle.
9.Tighten handle (L) with screw (L1) and
cover with cap (L2).
The pressure balancing valve is now ready
for use.
If the pressure balancing valve is in-
stalled too deep, the fitting depth can be
increased by 25mm with an extension set
(see spare parts page 3, 4 and 5, item 13).
B
B1
10
J
G
H1
H
11
H
12
K
L1
L2
L
M
13
950632.book : i95063gb.fm Seite 10 Mittwoch, Oktober 4, 2000 7:42 AM
