Ⅵ Operation Process

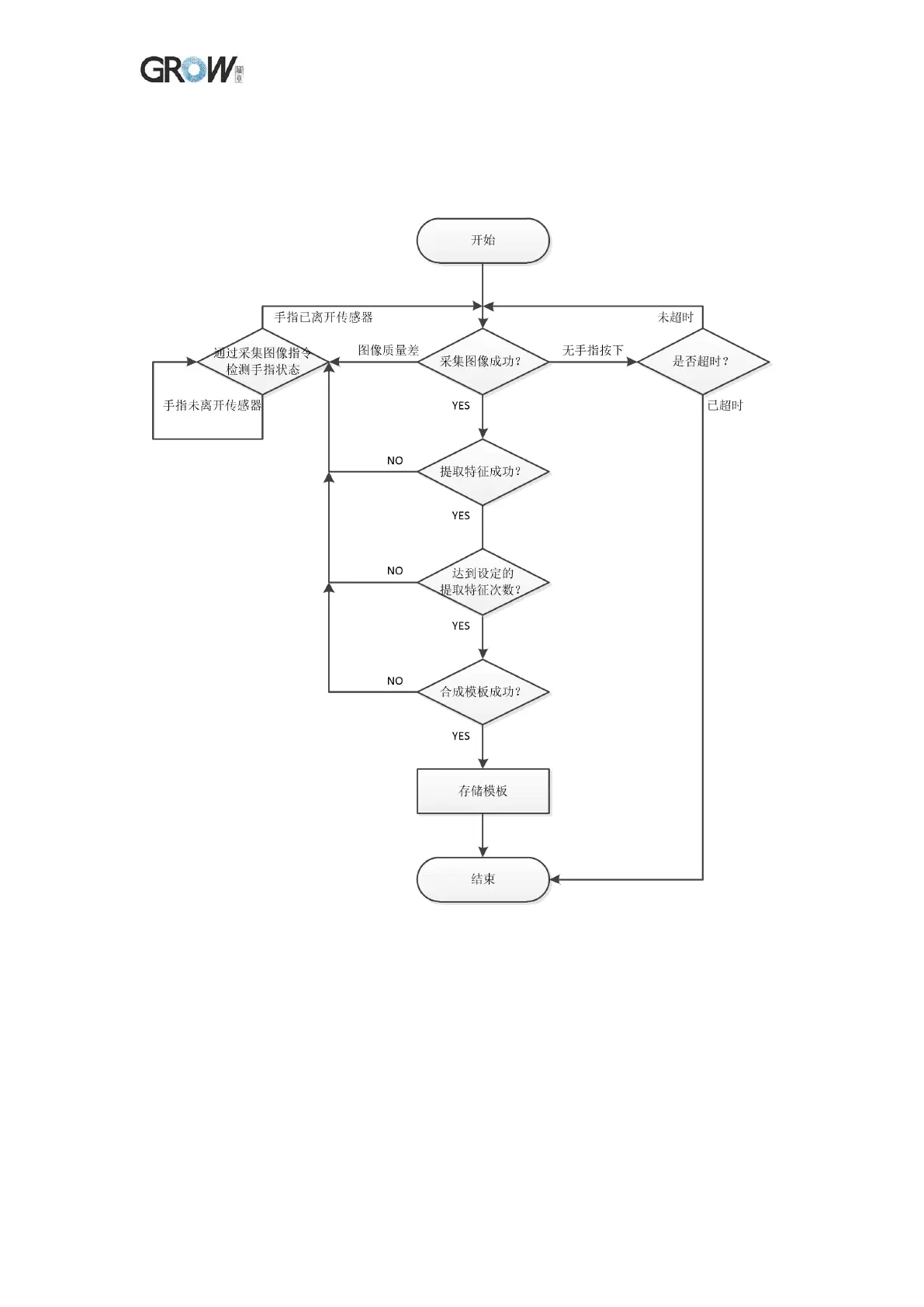

Register Fingerprint
Start
Finger removed from sensor
No Time out
If the time out?
Time out
No finger press
Finger state is detected by image acquisition command
Finger does
not leave the
sensor
Poor image quality
Collect Image successfully?
Extract feature successfully?
Reach the set times of feature extraction?
synthesis template successfully?
Store template
Finish
