Grow R503 - Fingerprint Search and Verification Workflow

- 36 -
www.hzgrow.com

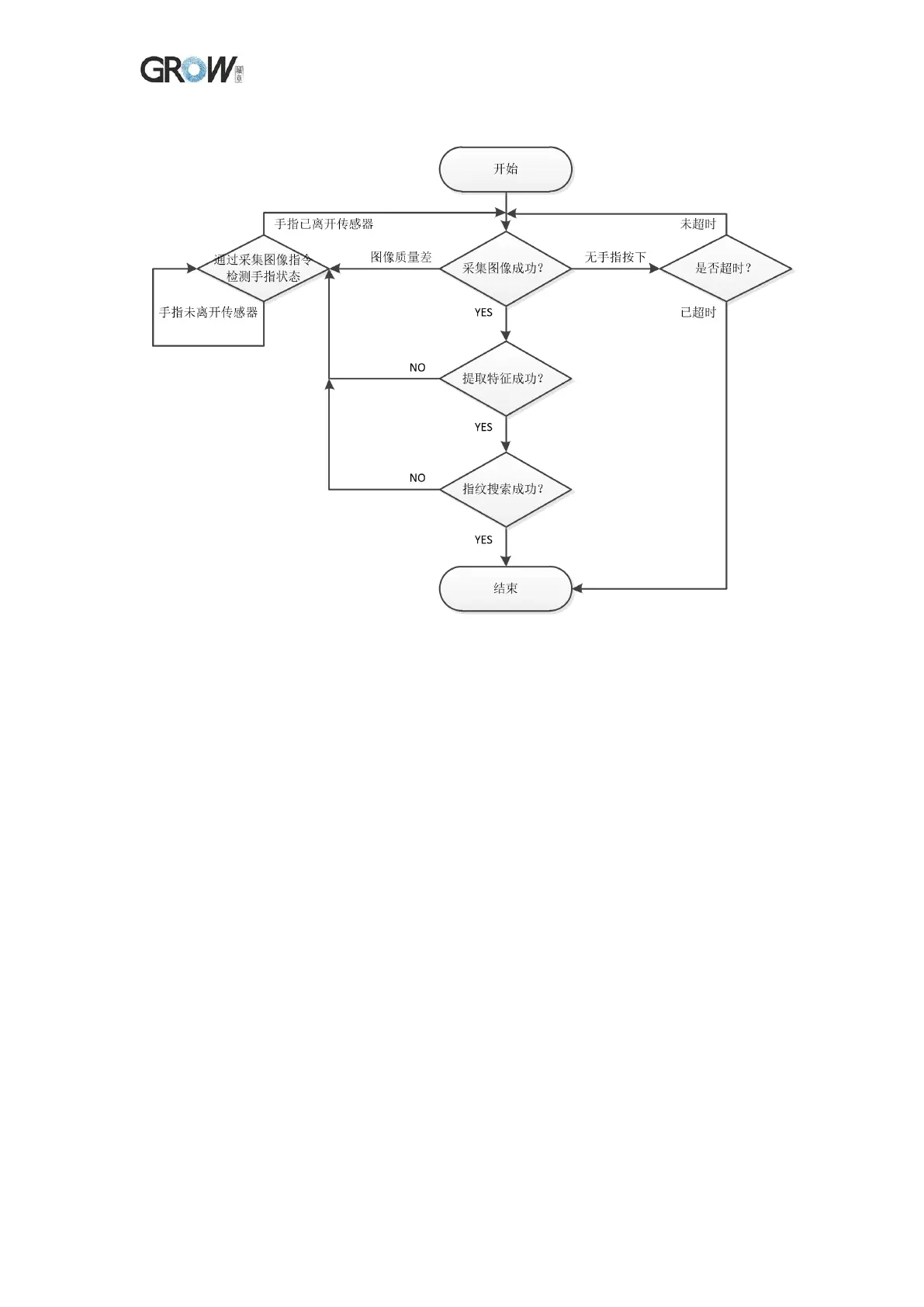

Search Fingerprint
Start
Finger removed from sensor
Finger state is detected by image acquisition command
Poor image quality
Collect Image successfully?
Finger does not leave the sensor
No finger press
No Time out
If the Time out
Time out
Extract feature successfully?
Search fingerprint successfully?
Finish
